Base System

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

For references to "PG-Power" in wiring diagrams, see GROUND DISTRIBUTION and POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

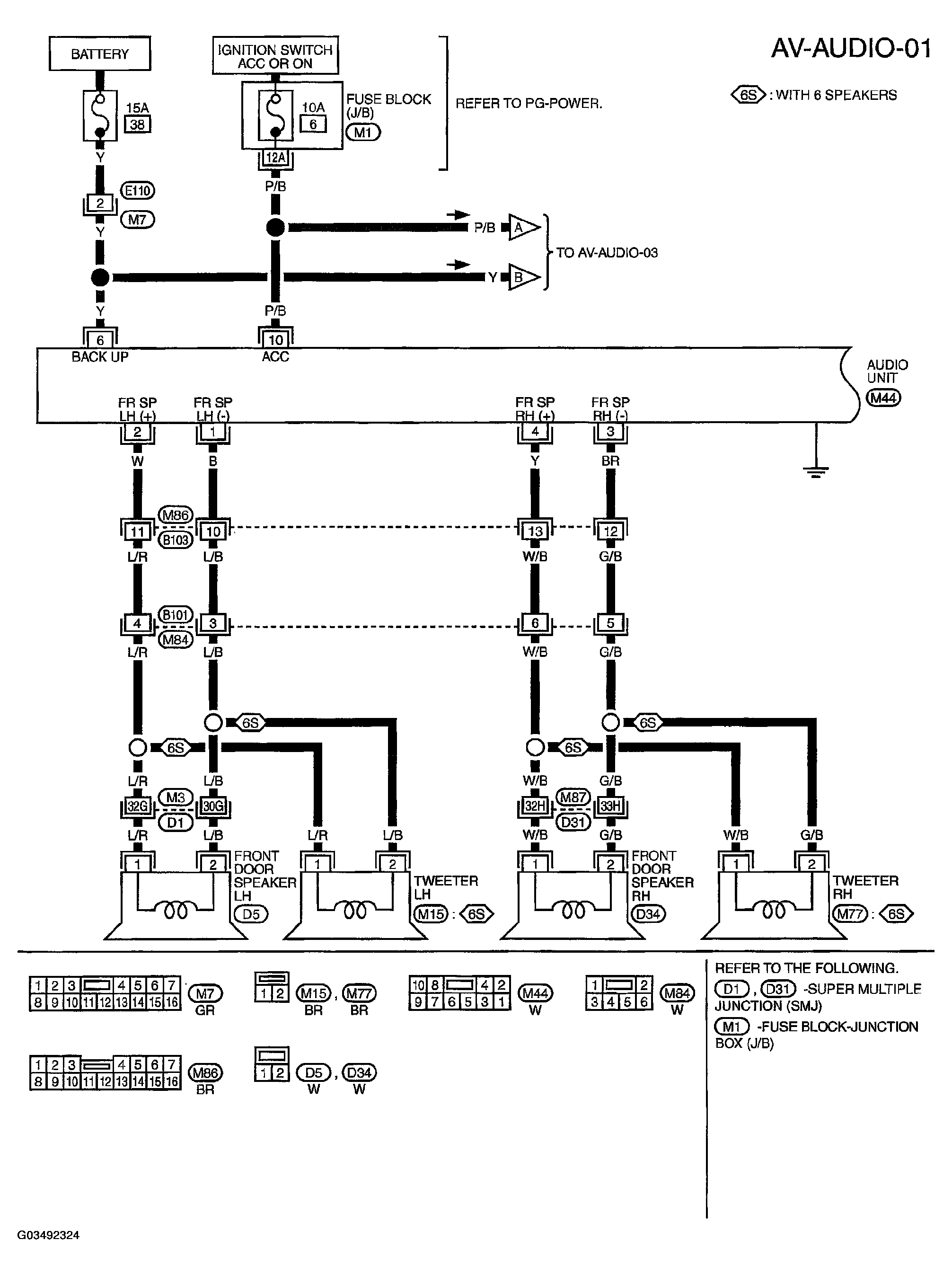

Fig 1: Base Audio System Wiring Diagram - AV-AUDIO-01

G03492324

Courtesy of NISSAN MOTOR CO., U.S.A.

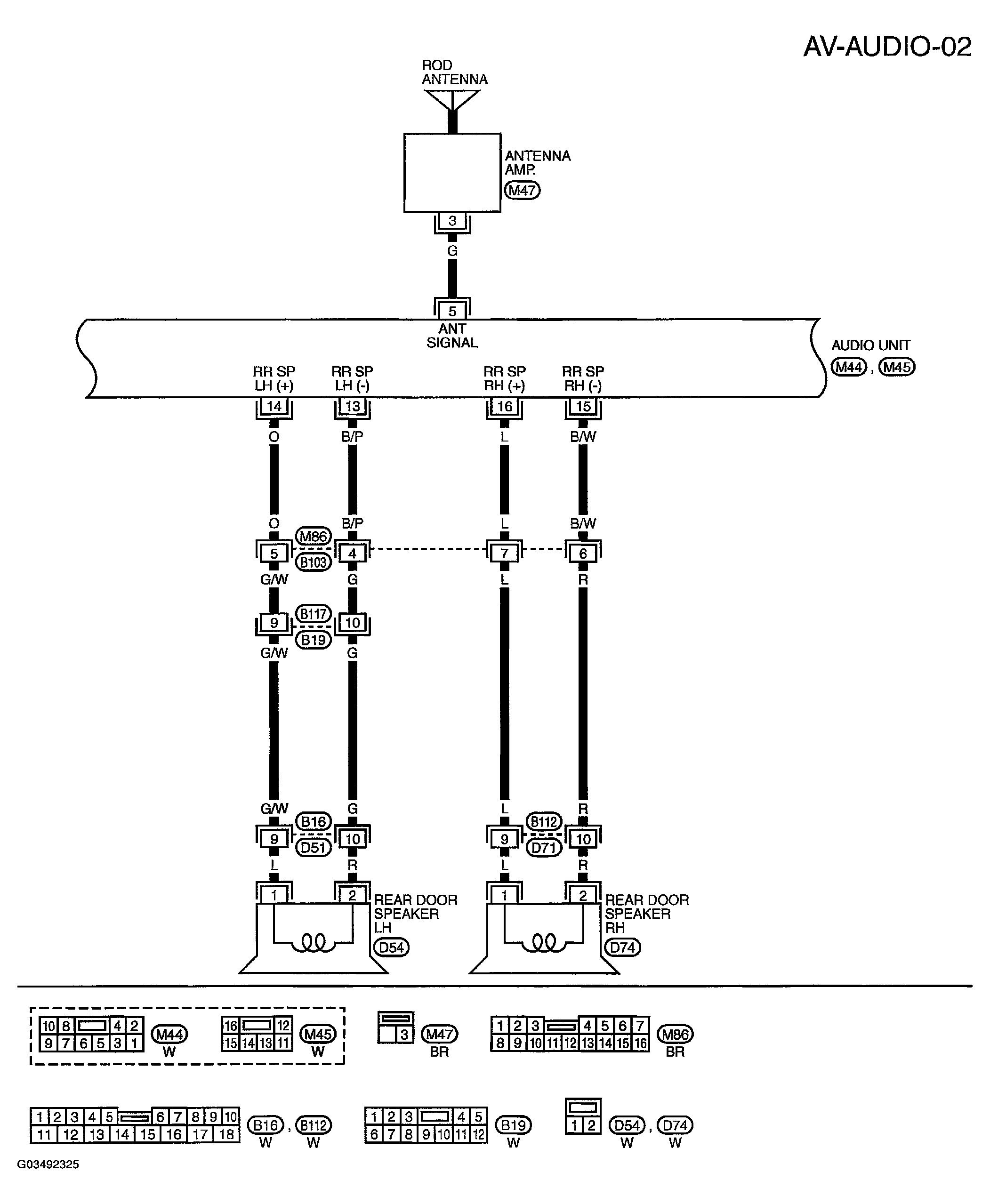

Fig 2: Base Audio System Wiring Diagram - AV-AUDIO-02

G03492325

Courtesy of NISSAN MOTOR CO., U.S.A.

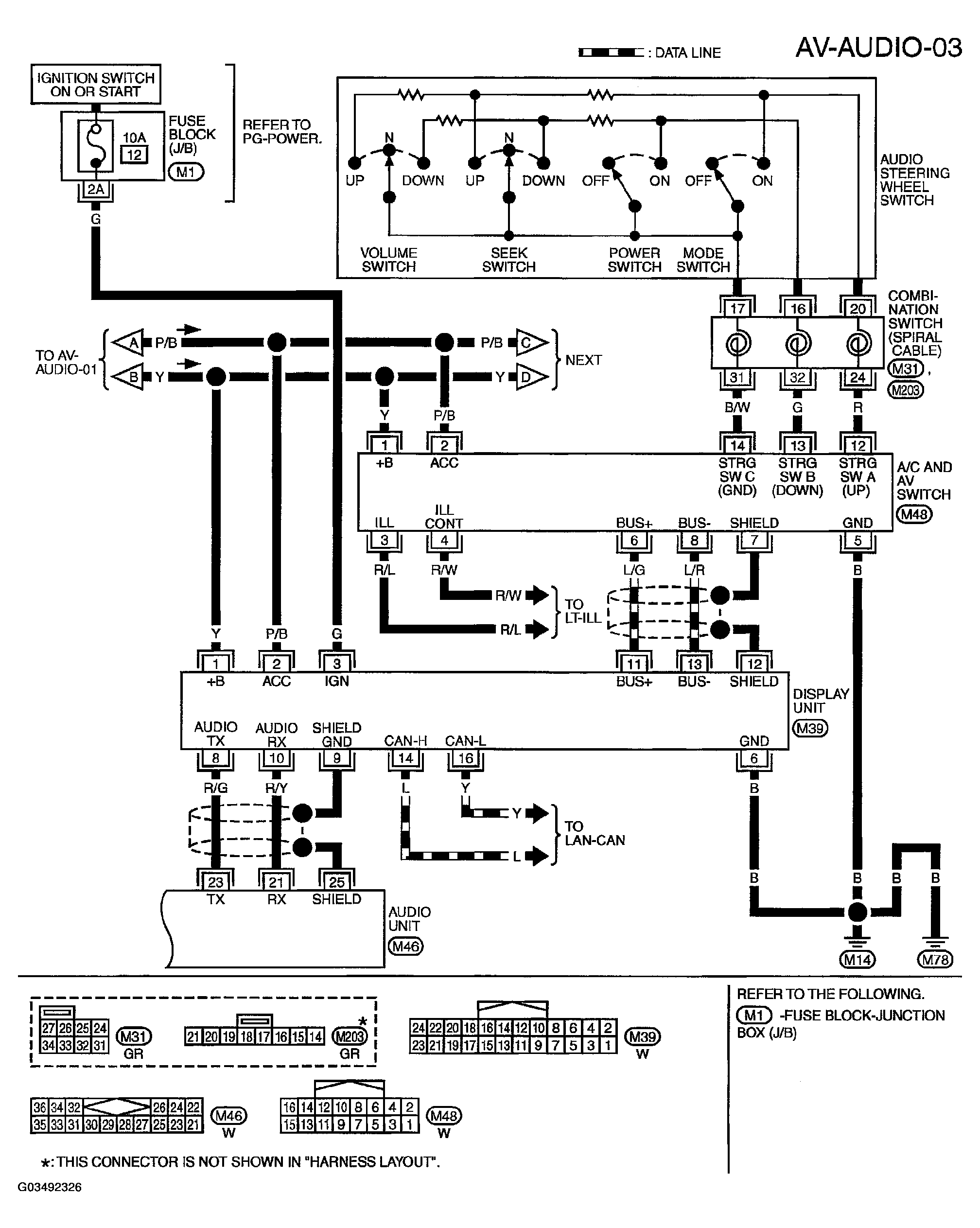

Fig 3: Base Audio System Wiring Diagram - AV-AUDIO-03

G03492326

Courtesy of NISSAN MOTOR CO., U.S.A.

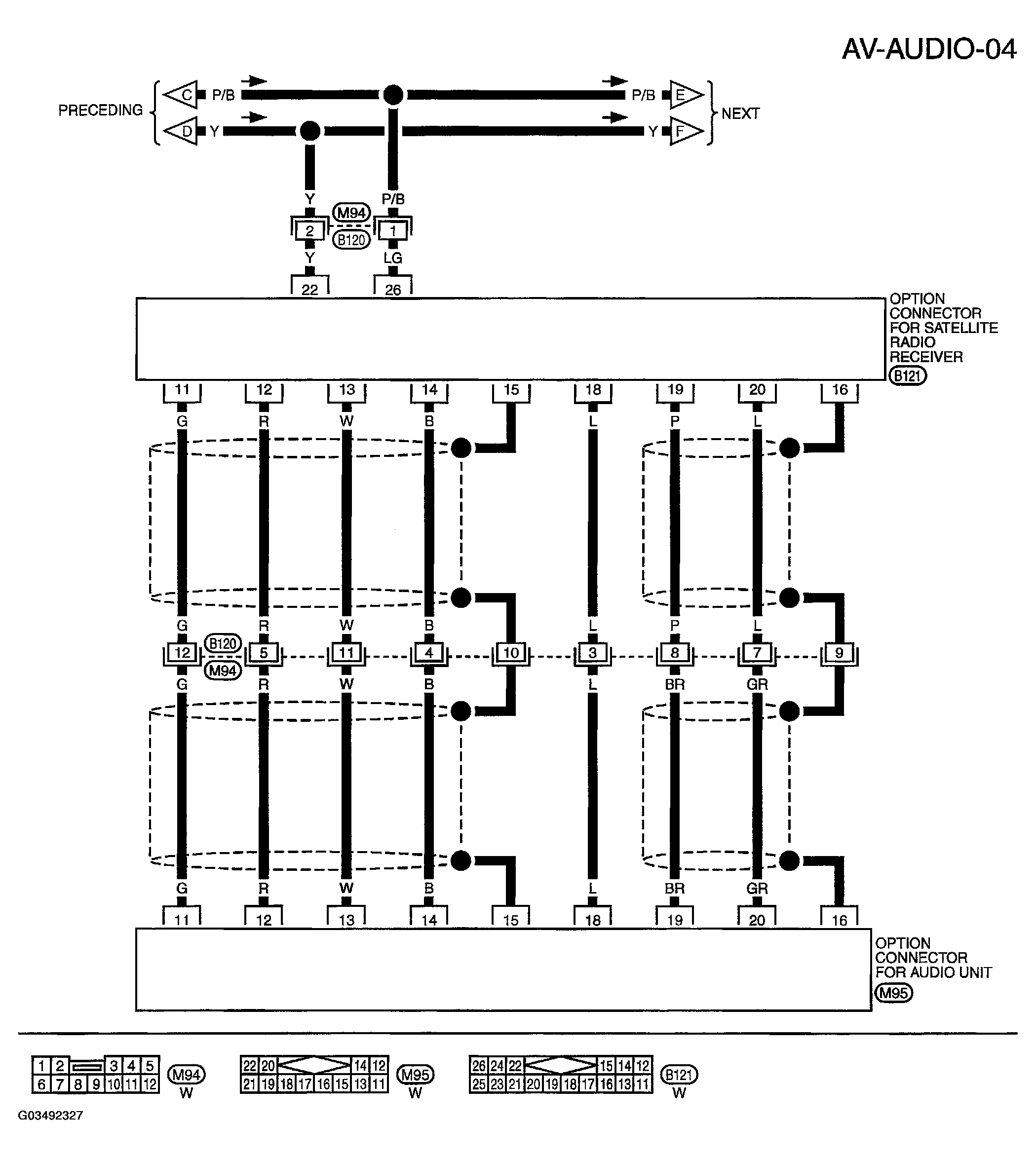

Fig 4: Base Audio System Wiring Diagram - AV-AUDIO-04

G03492327

Courtesy of NISSAN MOTOR CO., U.S.A.

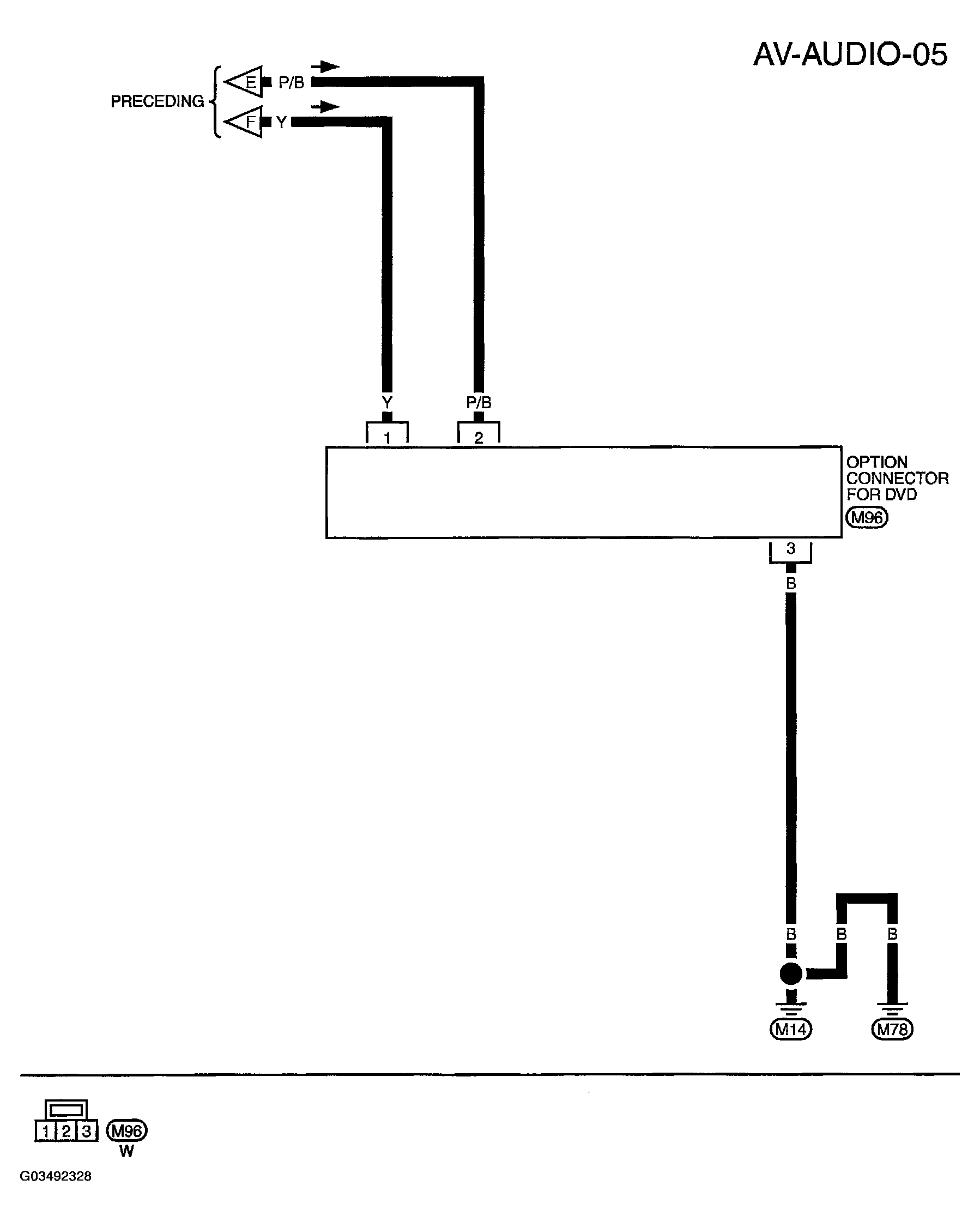

Fig 5: Base Audio System Wiring Diagram - AV-AUDIO-05

G03492328

Courtesy of NISSAN MOTOR CO., U.S.A.
