Light Warning Chime Does Not Operate

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WARNING CHIME OPERATION
Check the chime under conditions in exception of light warning chime operation.

Dose warning chime sound?
1. YES: GO TO 2.
2. NO: GO TO , "ALL WARNINGS ARE NOT OPERATED ".
CHECK BCM INPUT SIGNAL
1. Select "BCM" on CONSULT-II.
2. With "DATA MONITOR" of "BUZZER", confirm 'TAIL LAMP SW" when the lighting switch is operated.
  When lighting switch is in 1st position: TAIL LAMP SW ON

  When lighting switch is OFF: TAIL LAMP SW OFF

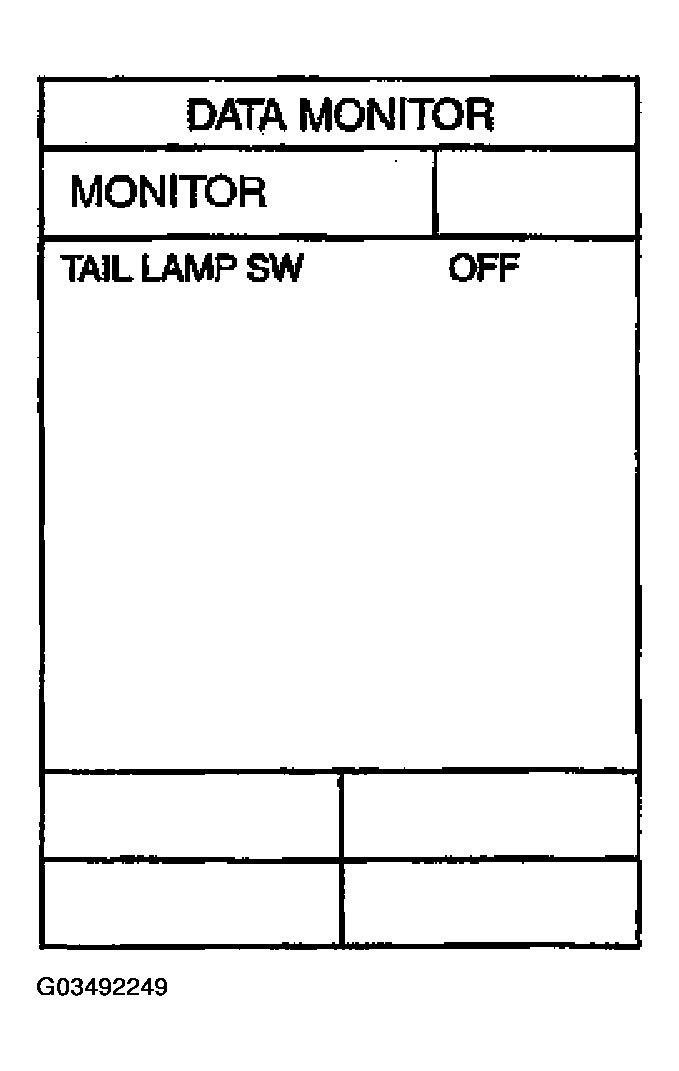

  Fig 1: Displaying DATA MONITOR
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
2. NG: Replace lighting switch.
