Wiring Diagram -DEF-

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to "PG-Power" in wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

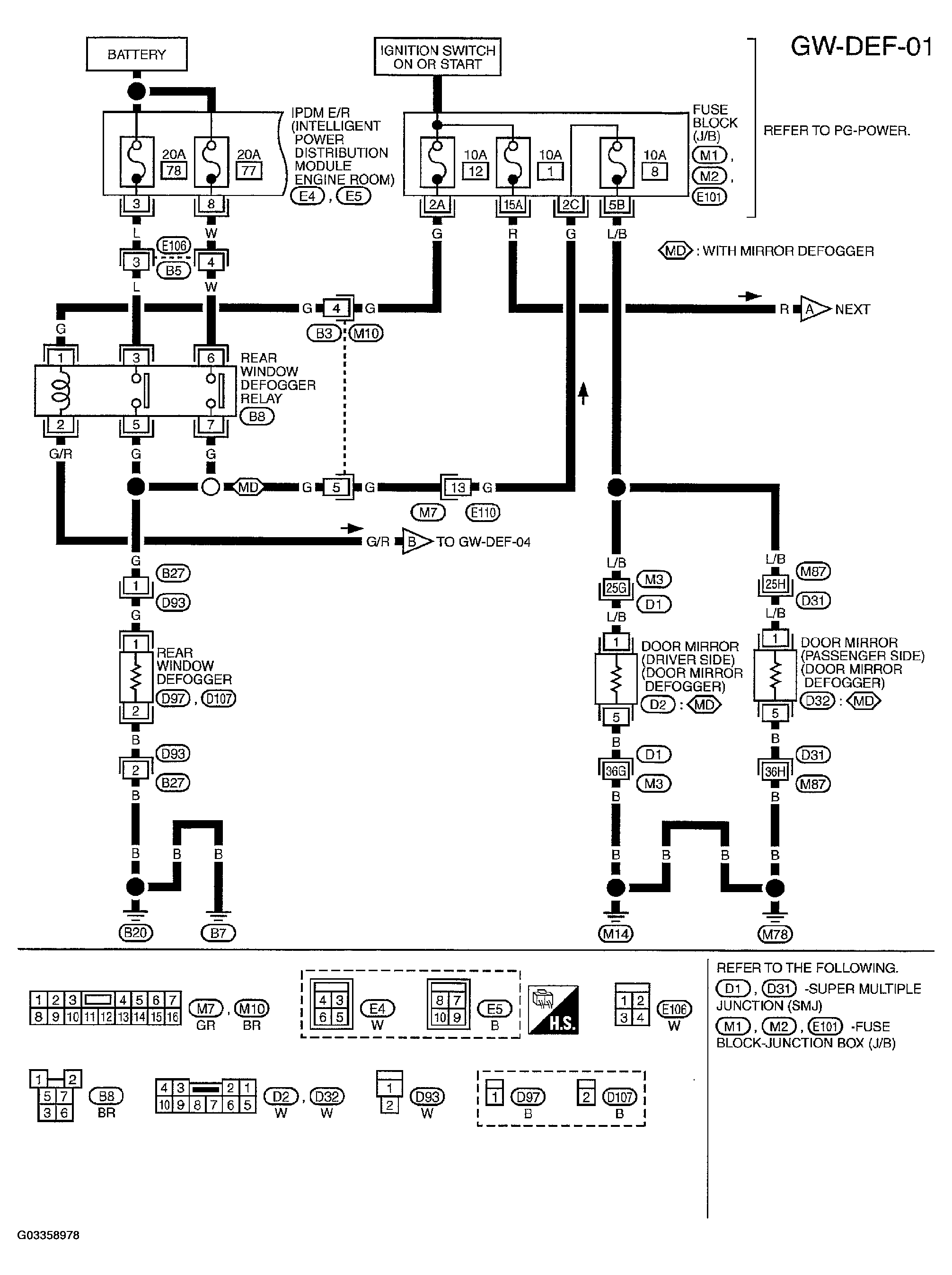

Fig 1: Rear Window Defogger Wiring Diagram (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

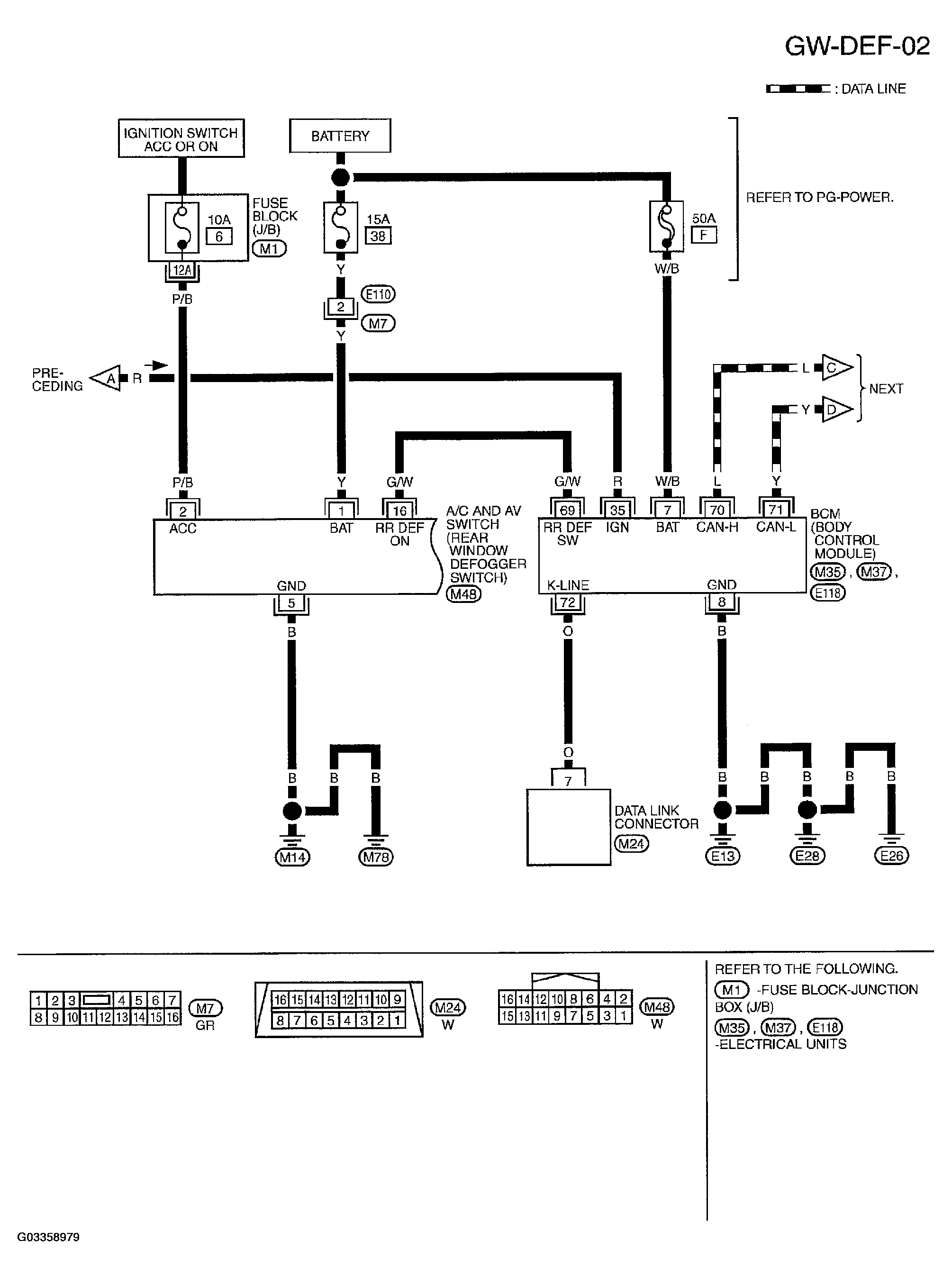

Fig 2: Rear Window Defogger Wiring Diagram (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

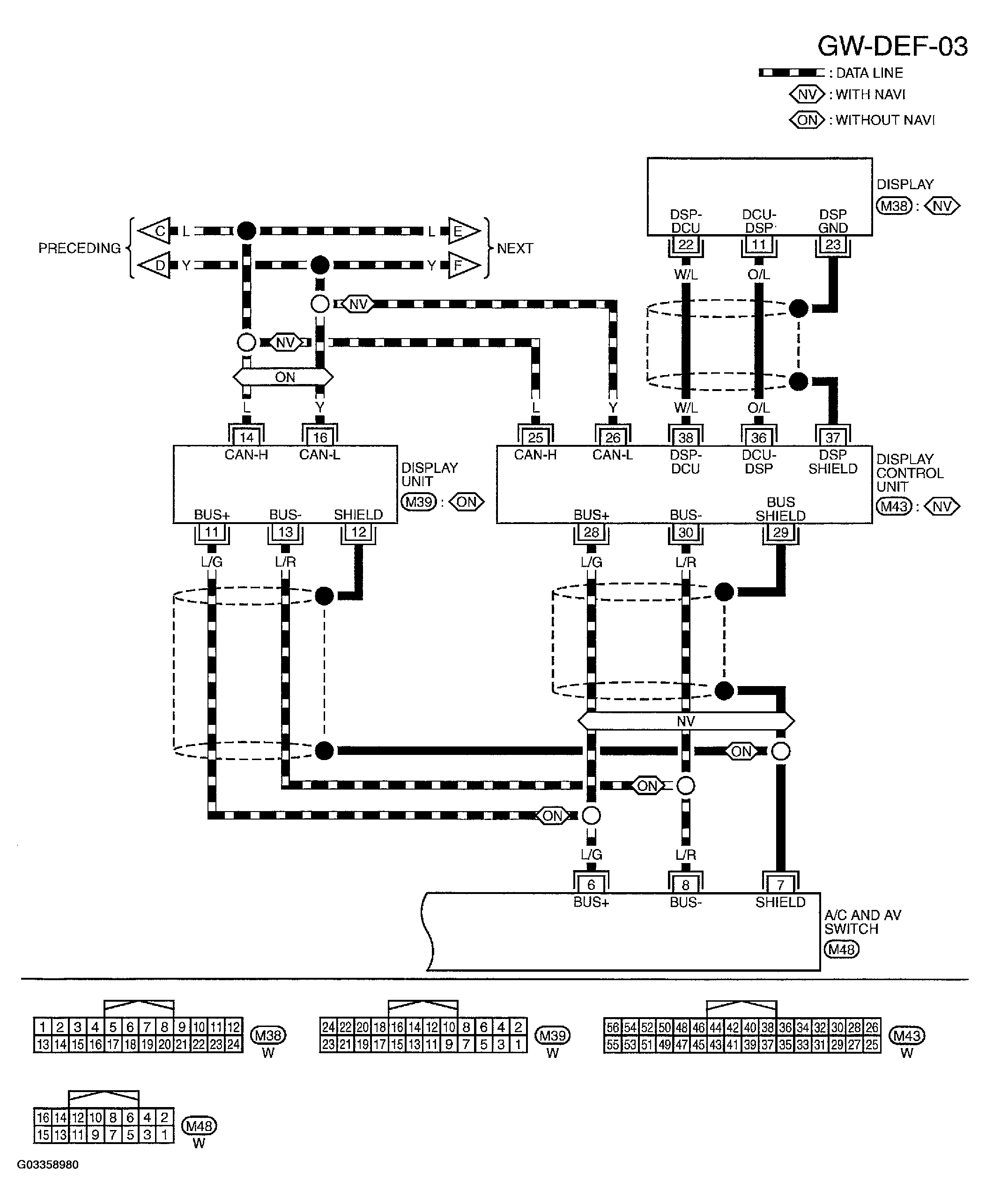

Fig 3: Rear Window Defogger Wiring Diagram (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

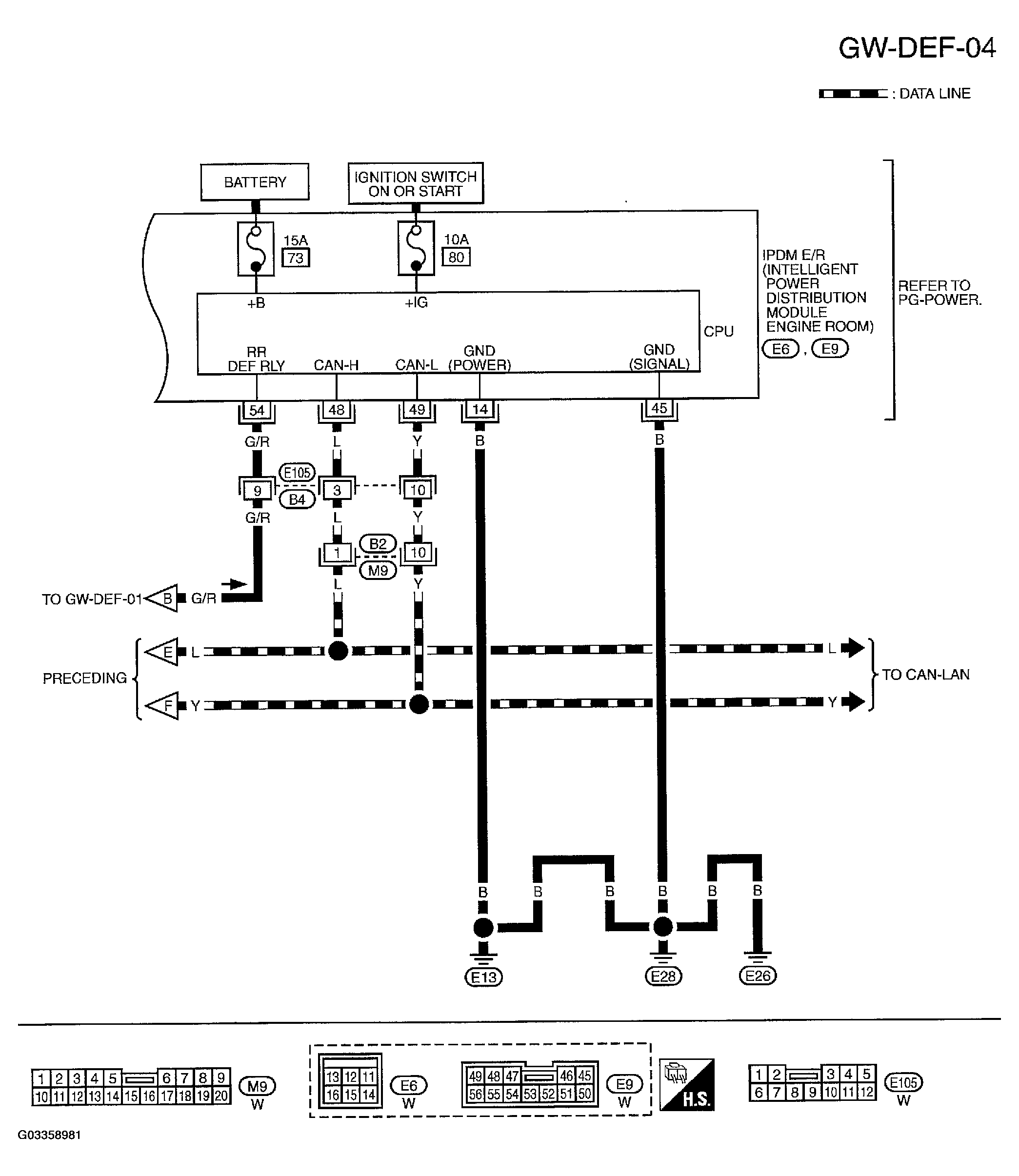

Fig 4: Rear Window Defogger Wiring Diagram (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
