System - Basic Engine Control System

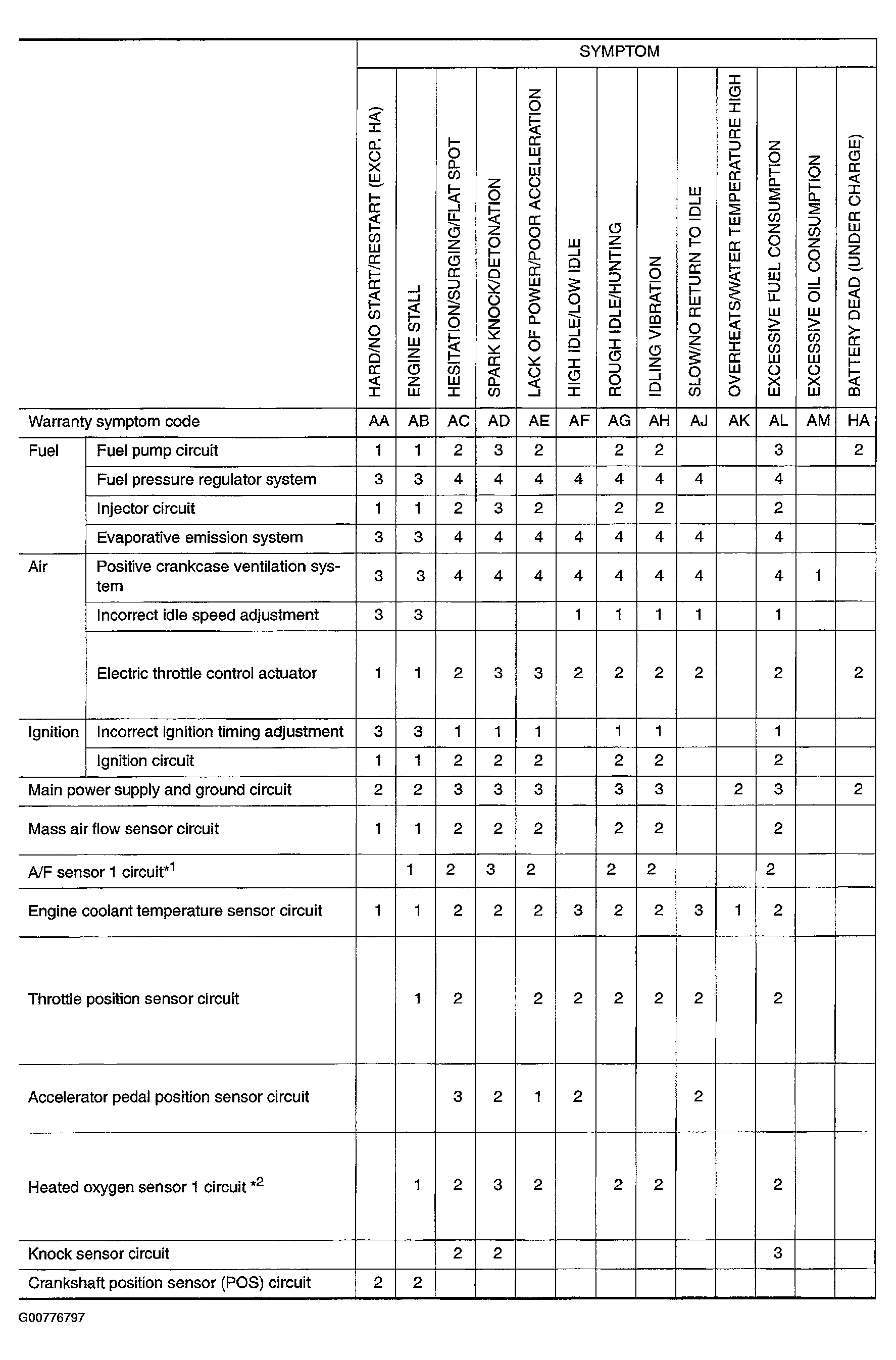

Fig 1: Symptom Matrix Chart - Basic Engine Control System (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

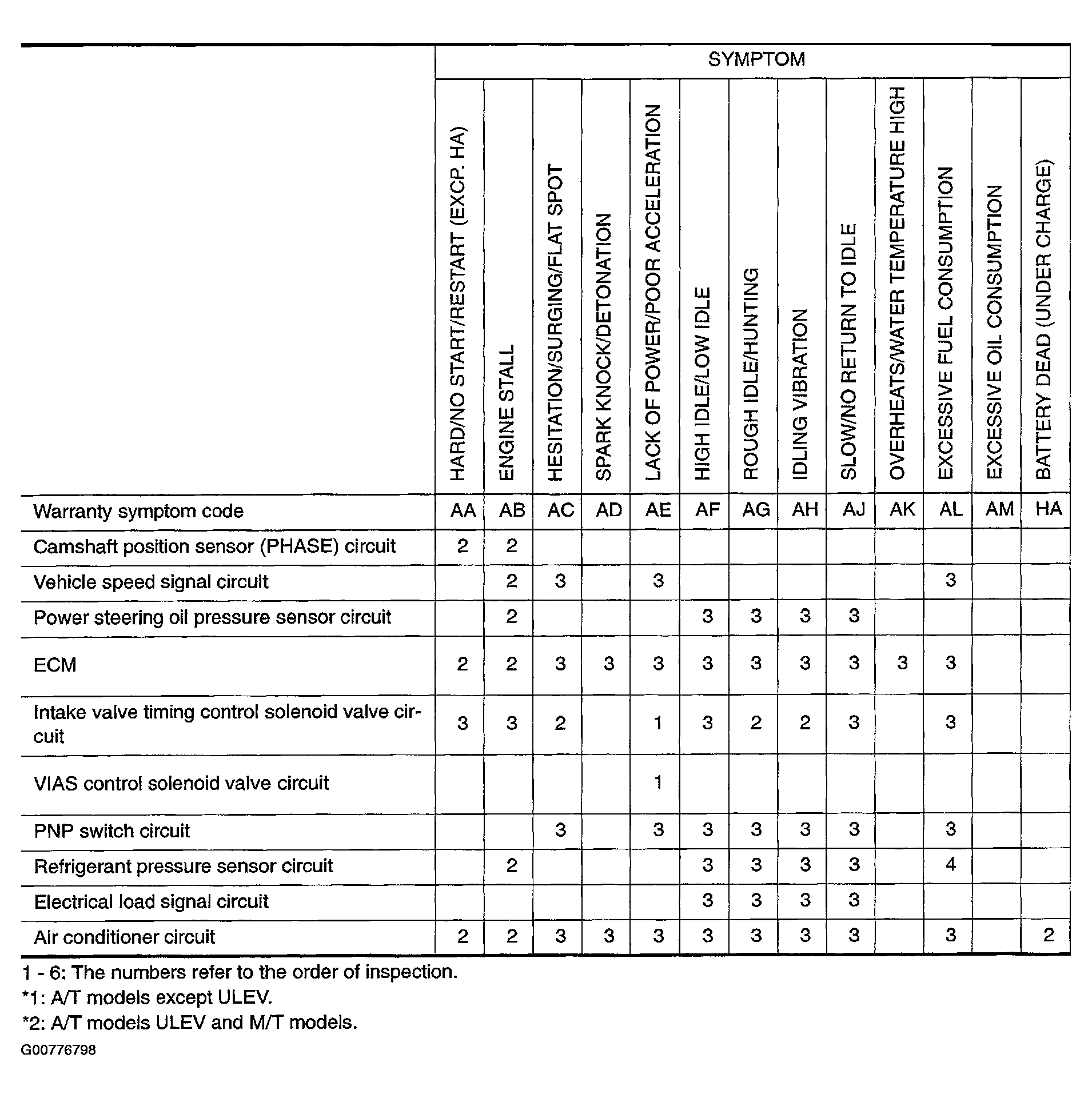

Fig 2: Symptom Matrix Chart - Basic Engine Control System (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
