SULEV Models

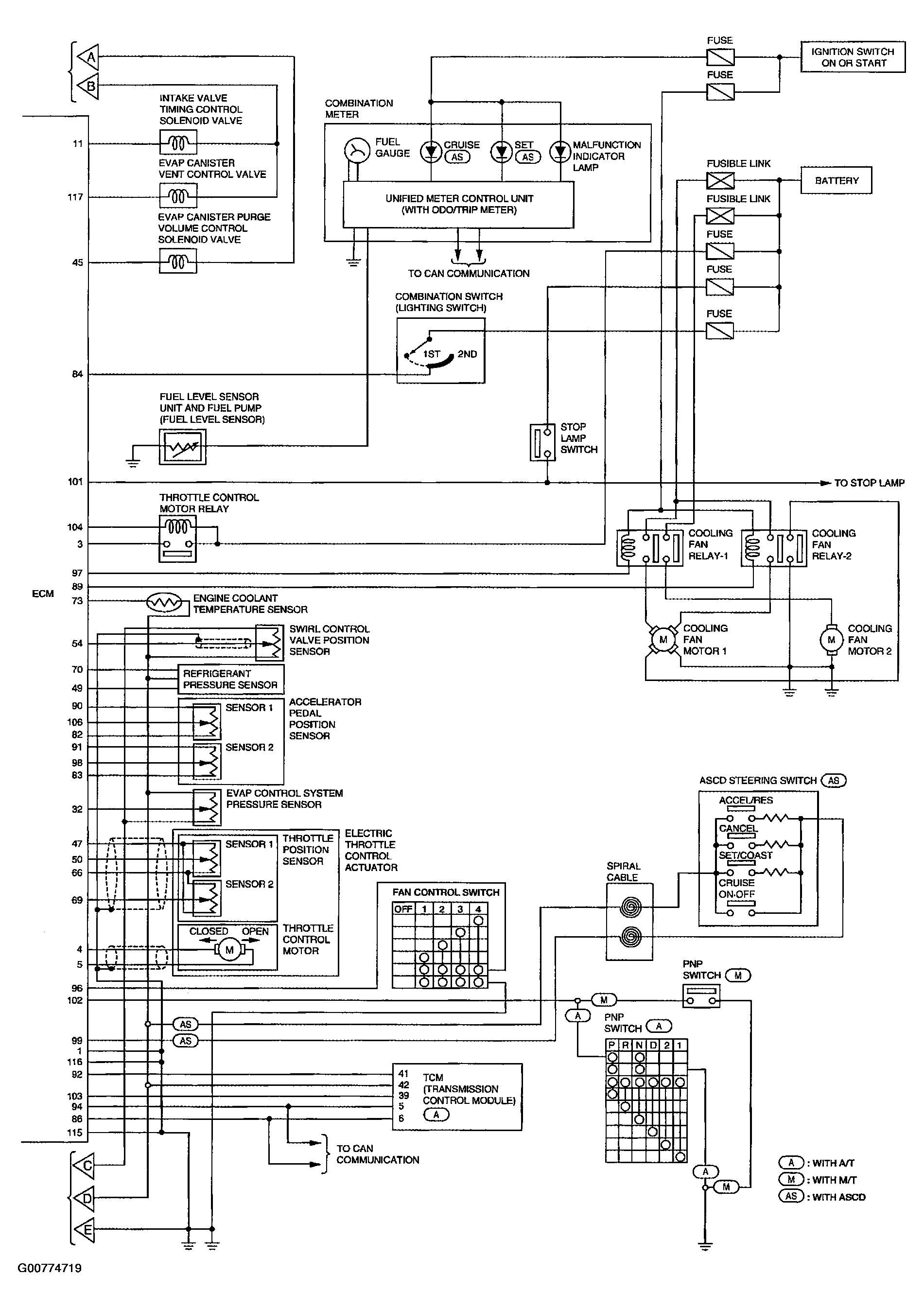

Fig 1: Circuit Diagram SULEV Models (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

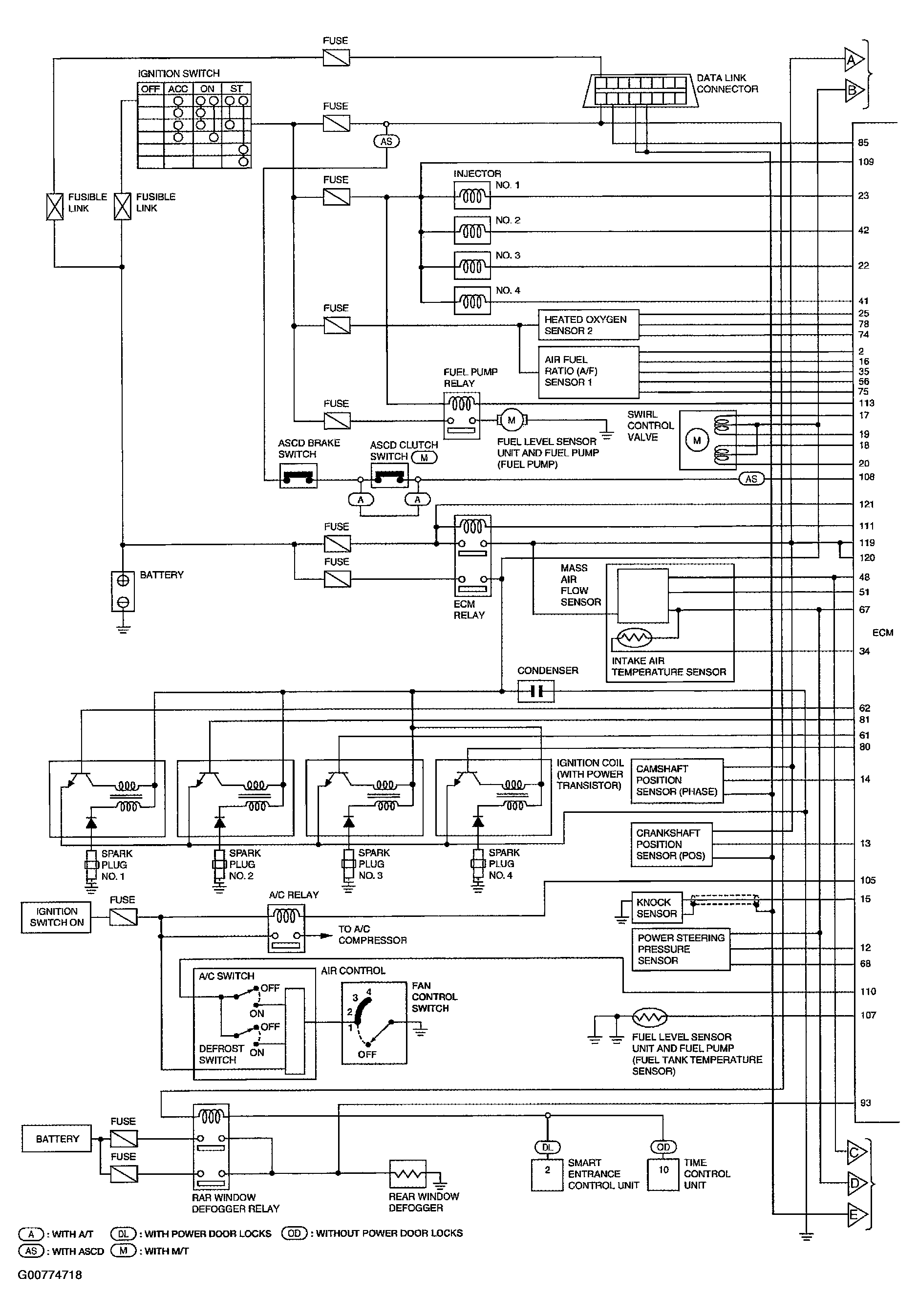

Fig 2: Circuit Diagram SULEV Models (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
