System Description: Operation

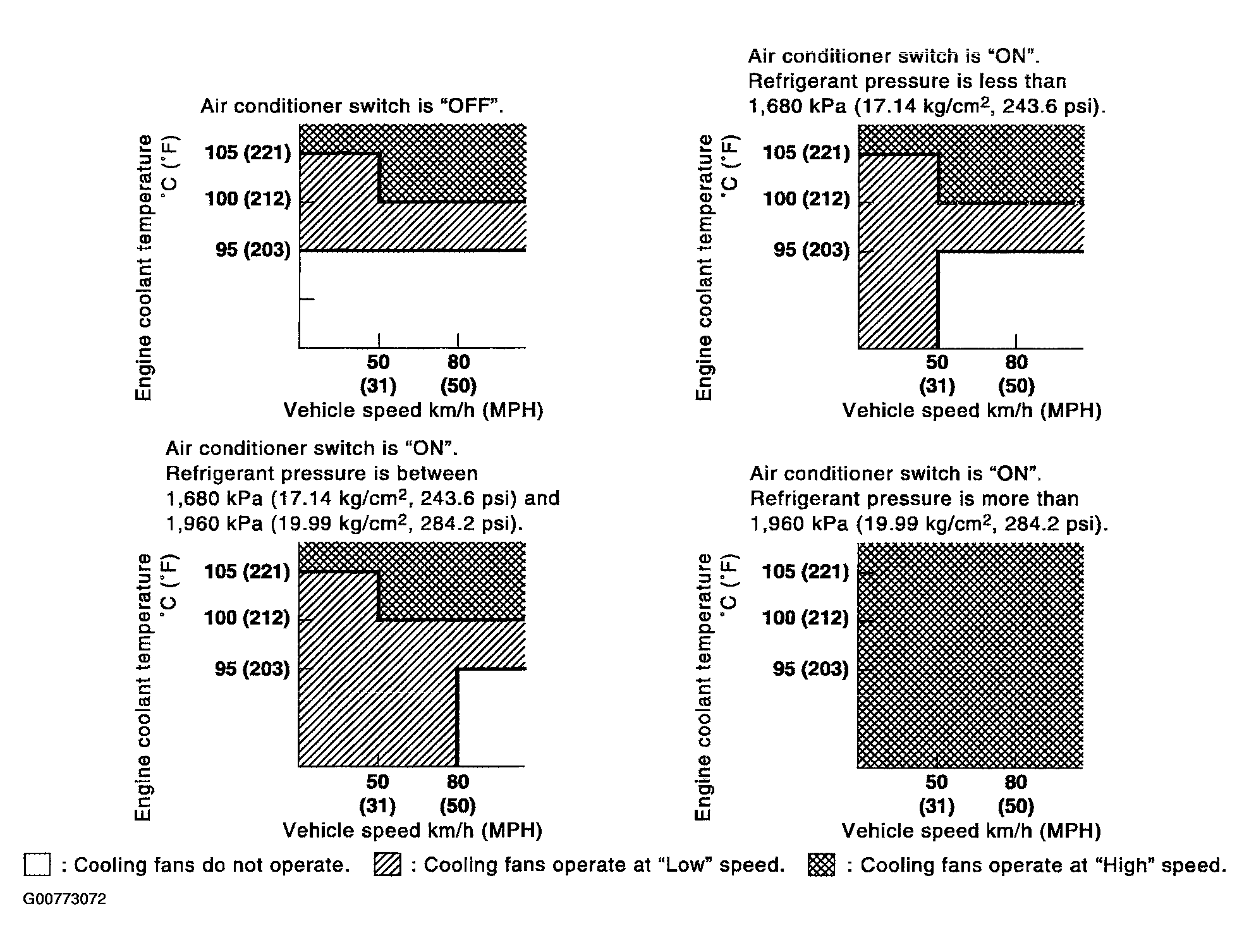

Fig 1: Cooling Fan Operation Graph

G00773072

Courtesy of NISSAN MOTOR CO., U.S.A.
