DTC P0171, P0174: Fuel Injection System Function
>>
Wiring Diagram
>>
Bank 1
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Bank 1

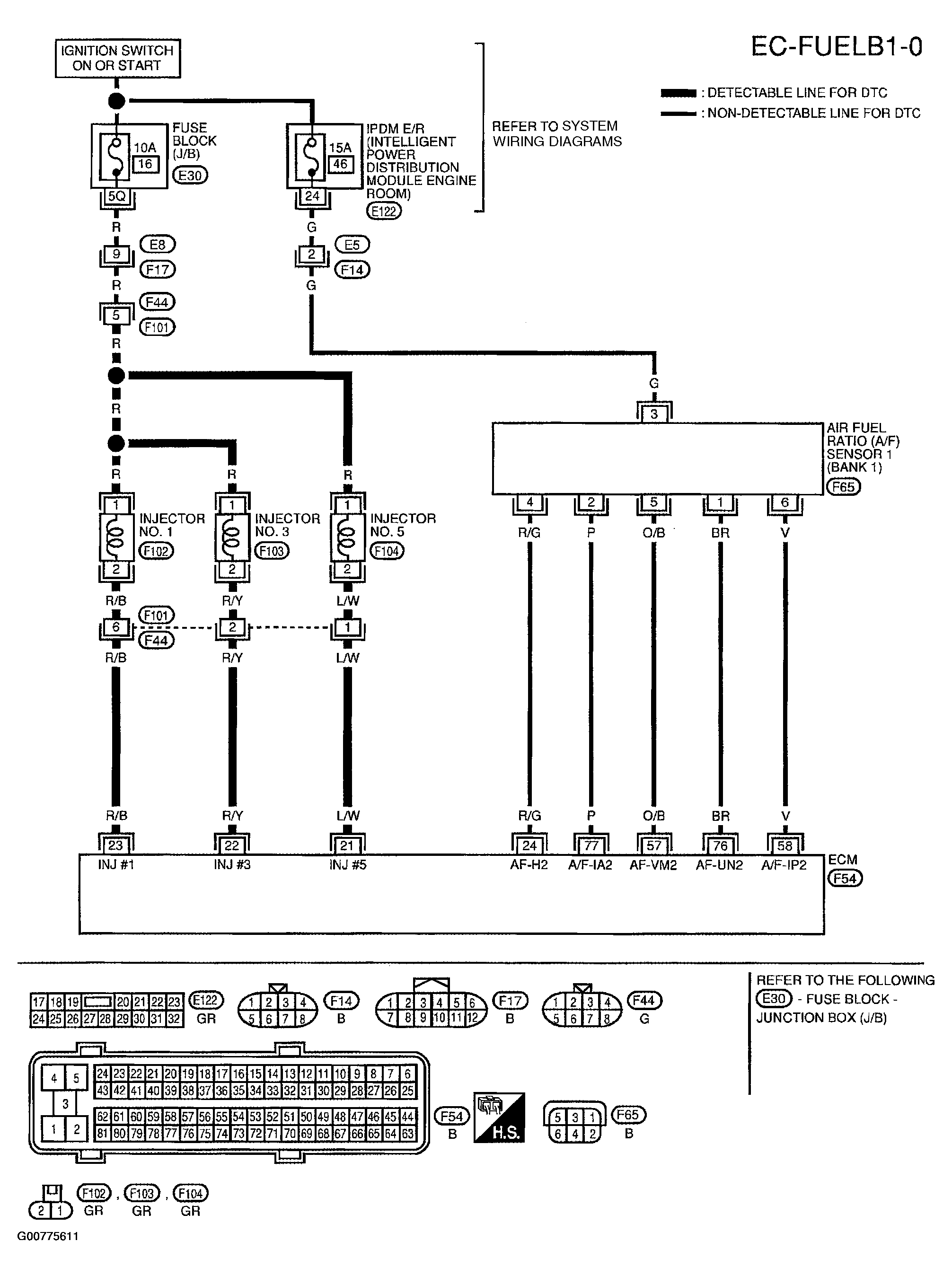

Fig 1: Displaying EC-FUELB1-01 Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
