Work Flow

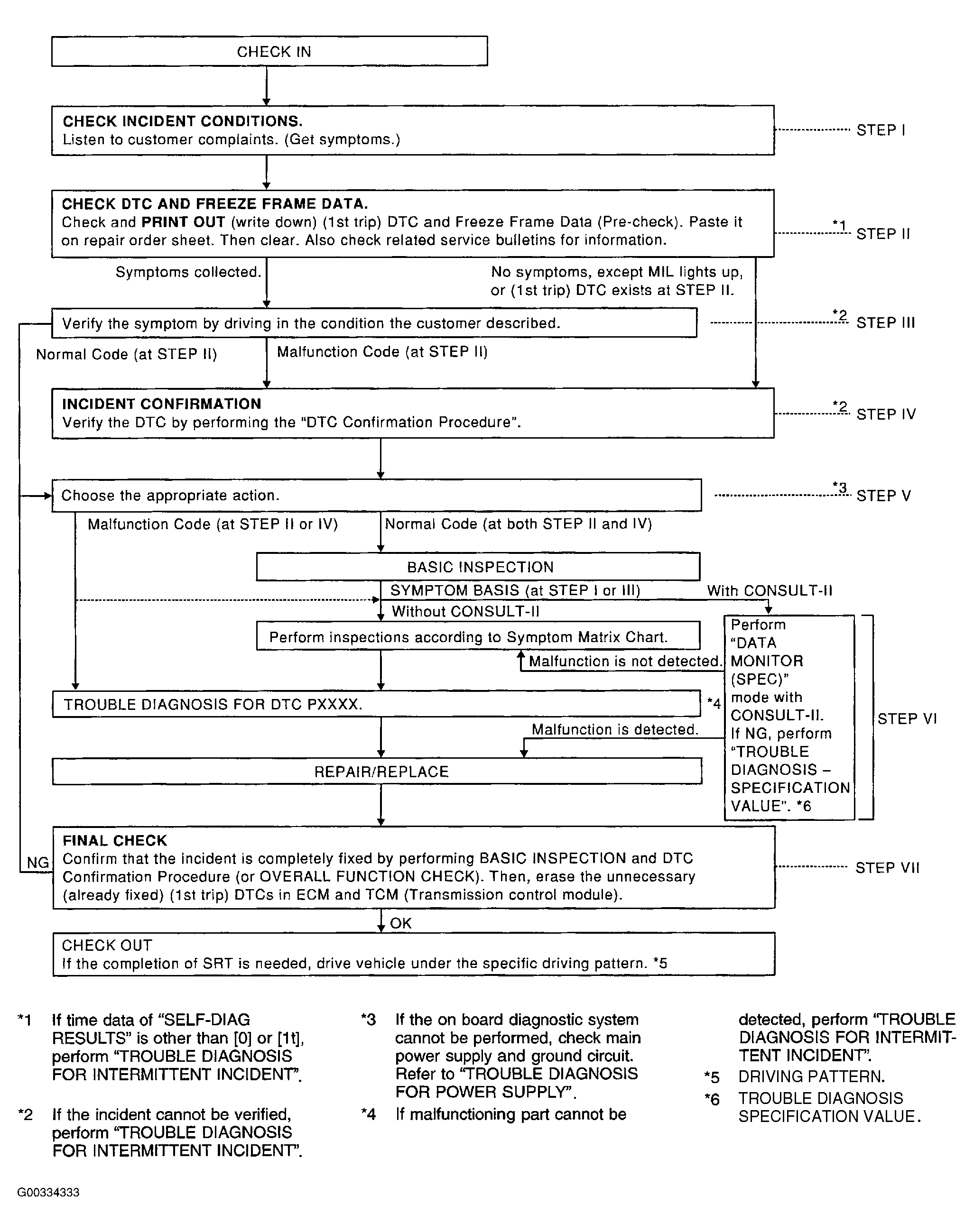

Fig 1: Work Flow Chart (1 Of 2)
G00334333Courtesy of NISSAN MOTOR CO., U.S.A.

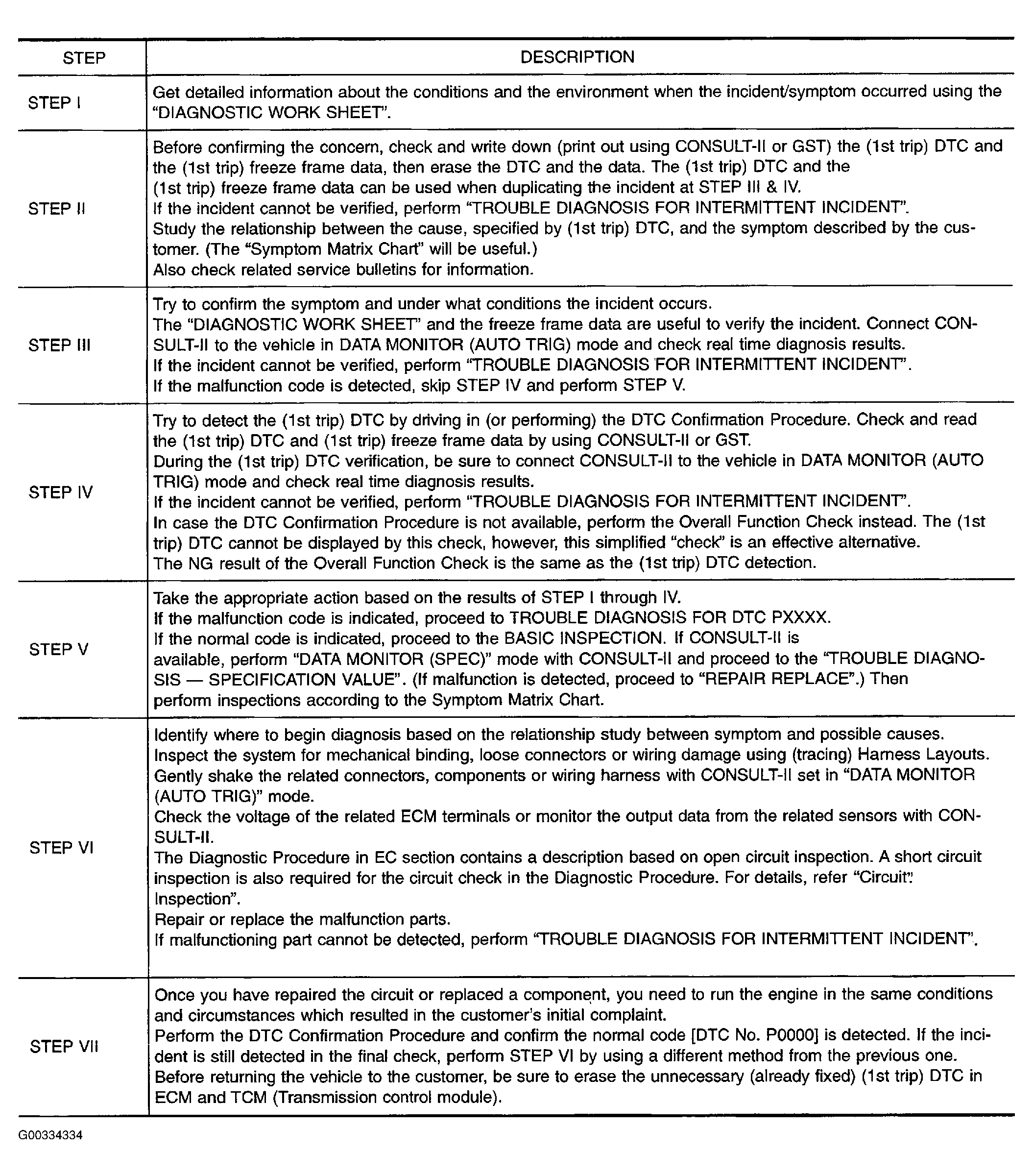

Fig 2: Work Flow Chart (2 Of 2)
G00334334Courtesy of NISSAN MOTOR CO., U.S.A.
