Idle Speed and Ignition Timing

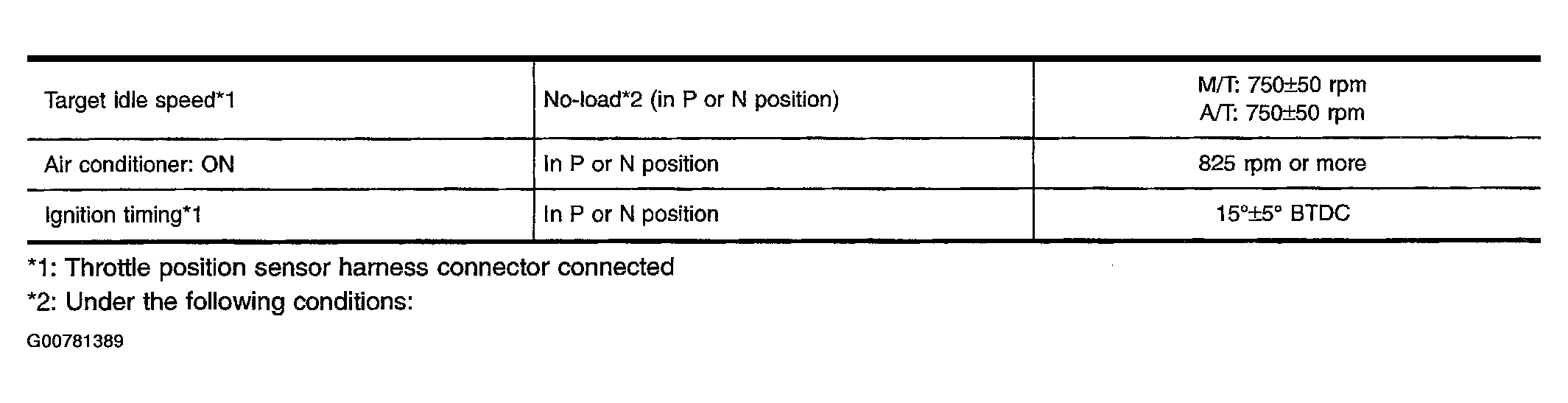

Fig 1: Idle Speed And Ignition Timing Chart
G00781389Courtesy of NISSAN MOTOR CO., U.S.A.
