On Board Diagnostic System Description
>>
Consult-II
>>
Data Monitor (Spec) Mode
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Data Monitor (Spec) Mode

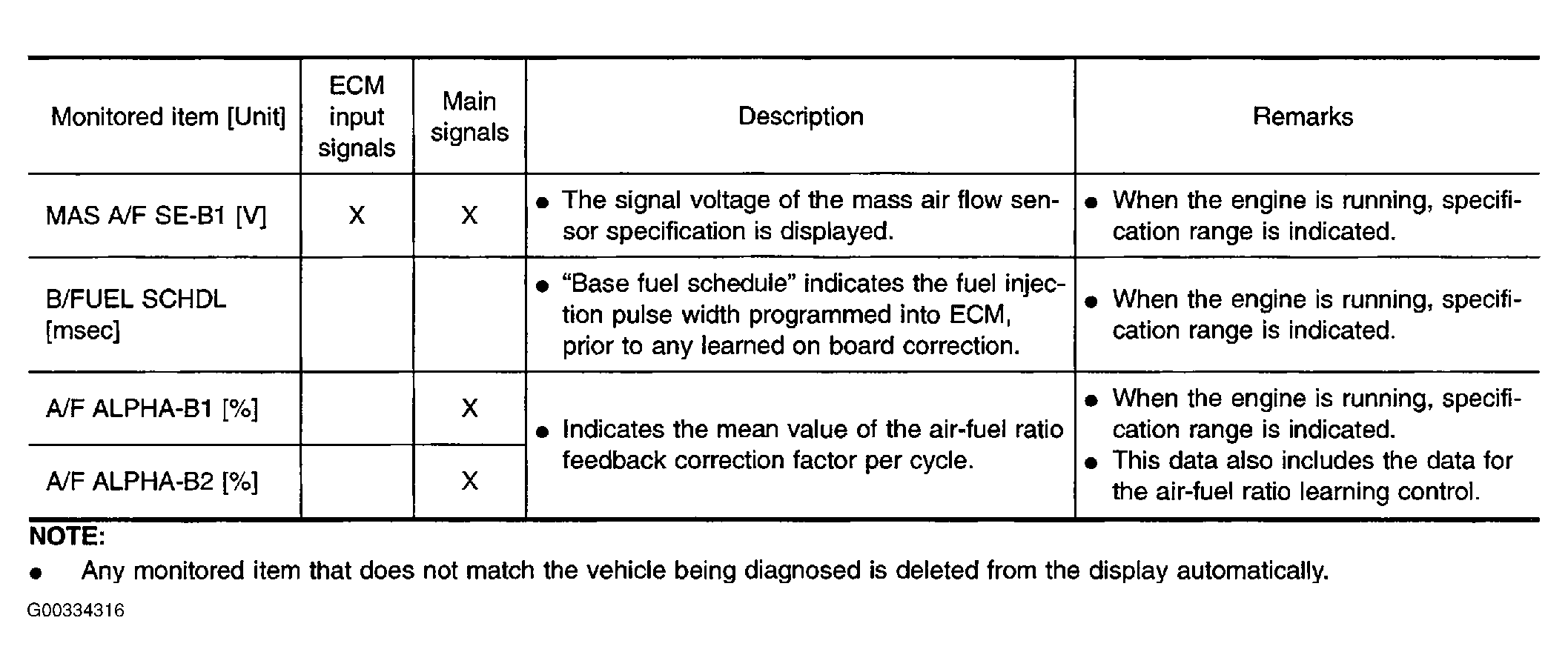

Fig 1: Data Monitor (SPEC) Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
