ASCD Steering Switch

  1. Disconnect ASCD steering switch.
  2. Check continuity between terminals 1 and 2 by pushing each switch.
    Fig 1: Checking ASCD Steering Switch Continuity
    G00781191Courtesy of NISSAN MOTOR CO., U.S.A.

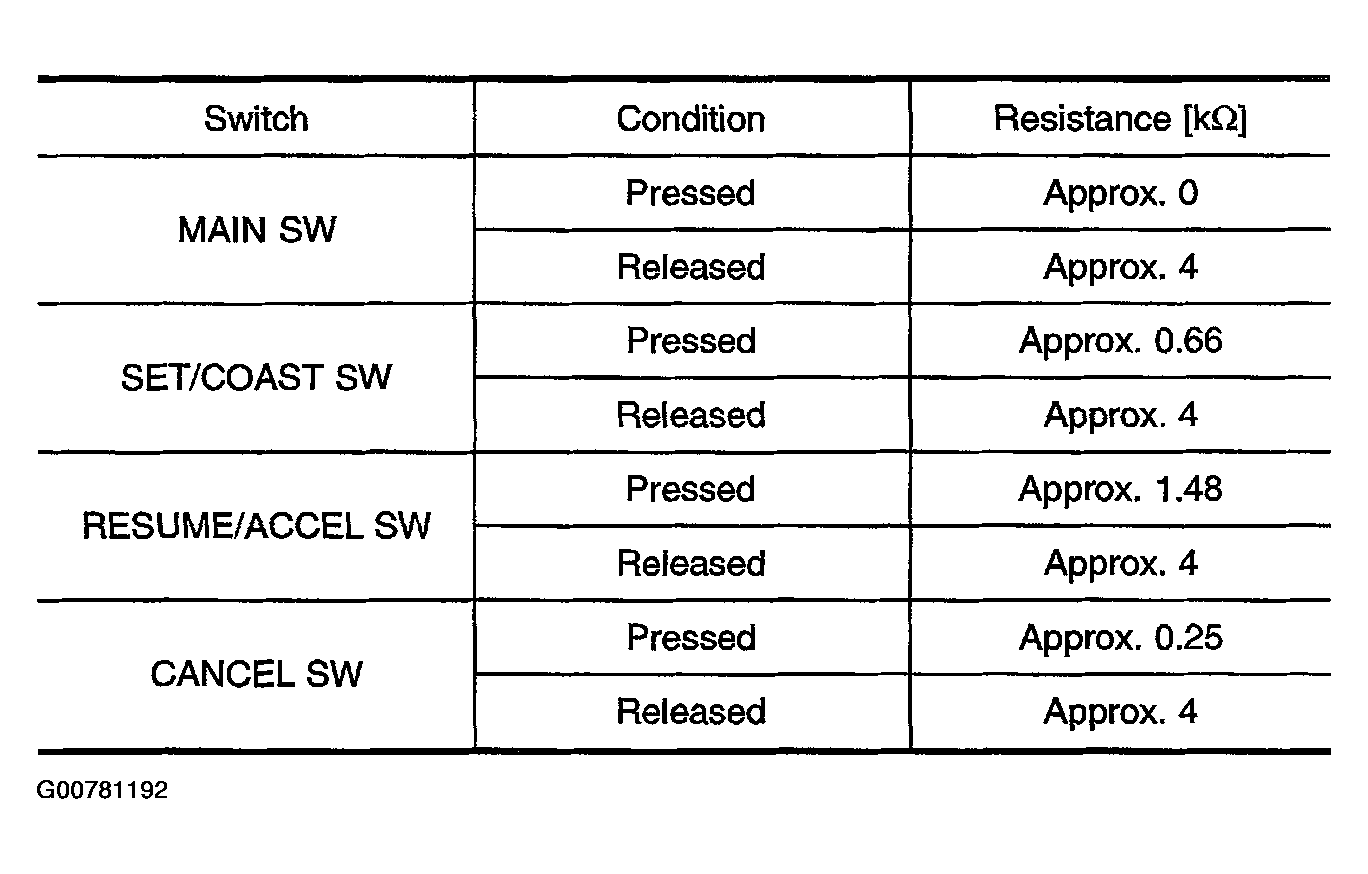

    Fig 2: Checking ASCD Steering Switch Continuity Chart
    G00781192Courtesy of NISSAN MOTOR CO., U.S.A.
