With GST

  1. Remove vacuum cut valve and vacuum cut valve bypass valve as an assembly.
  2. Apply vacuum to port A  and check that there is no suction from port B  .
  3. Apply vacuum to port B  and check that there is suction from port A  .
  4. Blow air in port B  and check that there is a resistance to flow out of port A.
  5. Supply battery voltage to the terminal.
  6. Blow air in port A  and check that air flows freely out of port B.
  7. Blow air in port B  and check that air flows freely out of port A.
  8. If NG, go to "DIAGNOSTIC PROCEDURE  " .

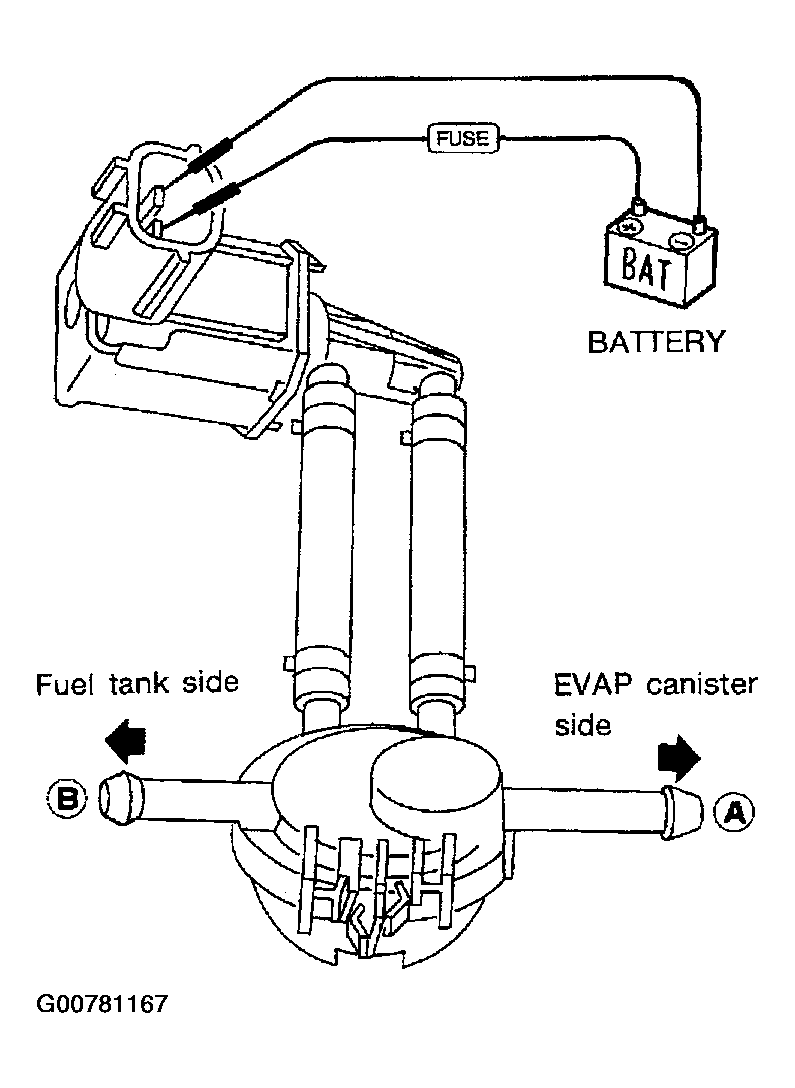

    Fig 1: Checking Overall Function Of Vacuum Cut Valve Bypass Valve
    G00781167Courtesy of NISSAN MOTOR CO., U.S.A.
