Write Configuration Procedure

WARNING: This page is about a different car, the 2004 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.
    Fig 1: Identifying Data Link Connector
    G03497021Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

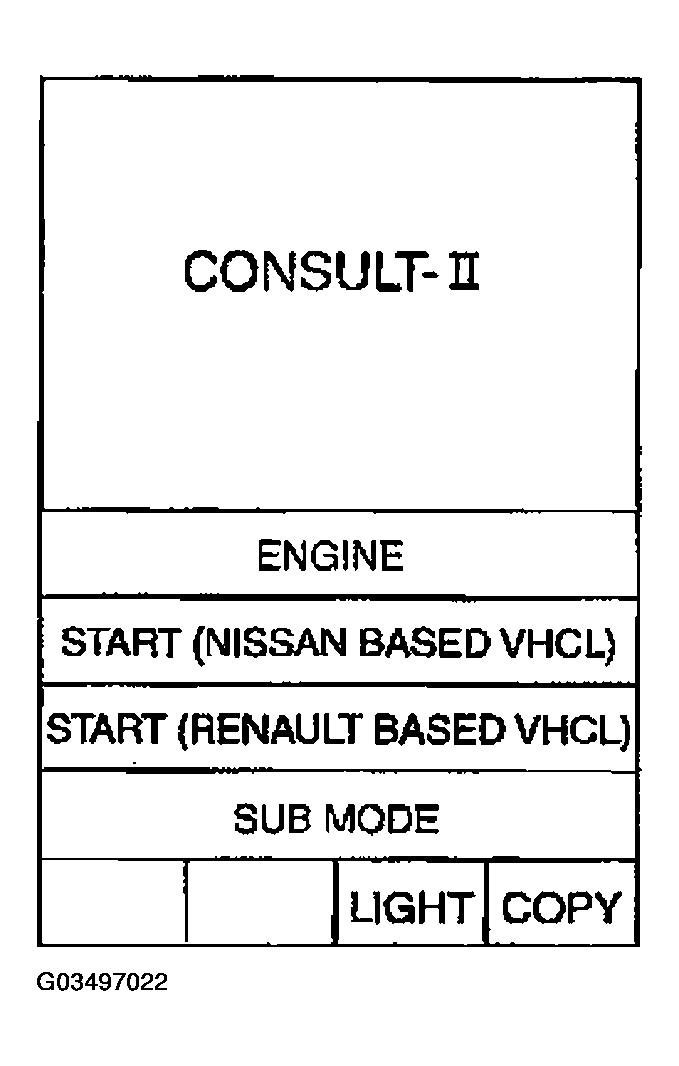

    Fig 2: Displaying START (NISSAN BASED VHCL)
    G03497022Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

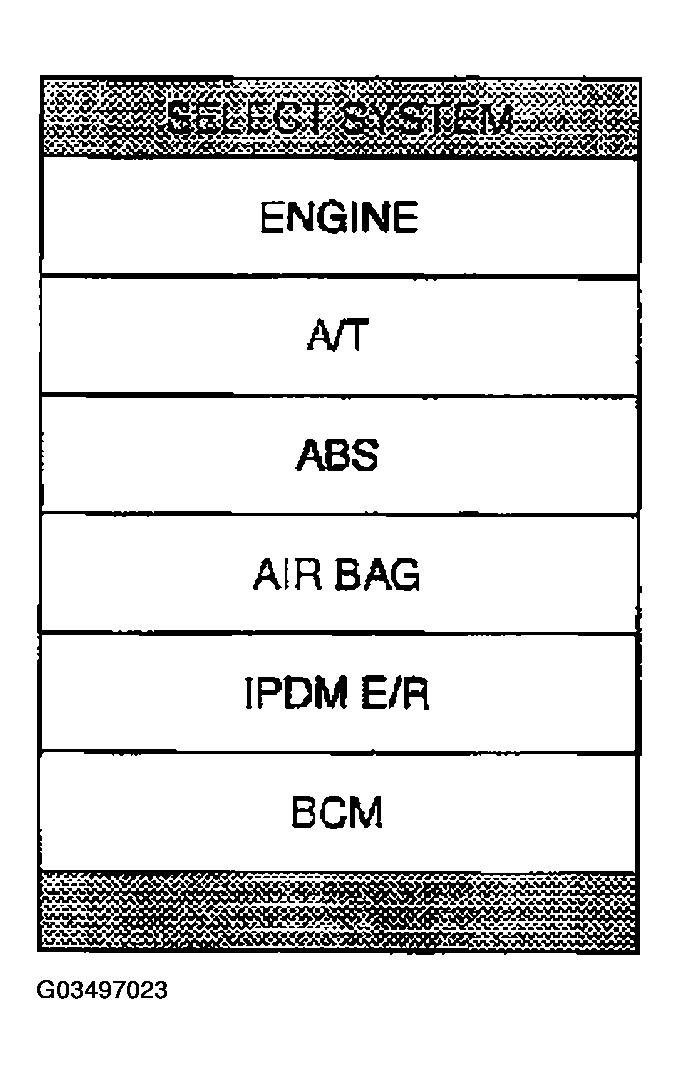

    Fig 3: Displaying SELECT SYSTEM Screen
    G03497023Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.
    Fig 4: Displaying SELECT TEST ITEM Screen
    G03497024Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

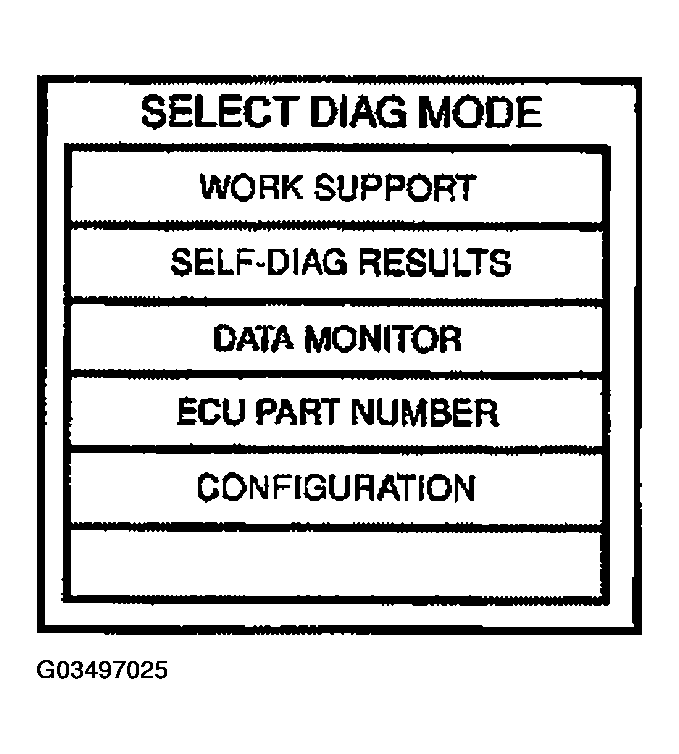

    Fig 5: Displaying SELECT DIAG MODE Screen
    G03497025Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "OTHER" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .

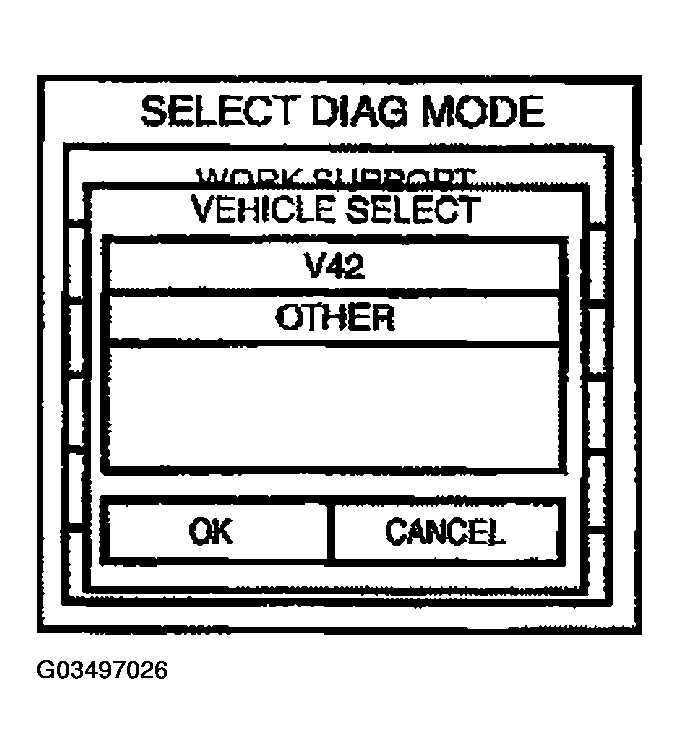

    Fig 6: Displaying VEHICLE SELECT Screen
    G03497026Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WRITE CONFIGURATION" on "CONFIGURATION" screen.
    Fig 7: Displaying CONFIGURATION Screen (1 Of 2)
    G03497027Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch YES".

    For canceling, touch "NO".

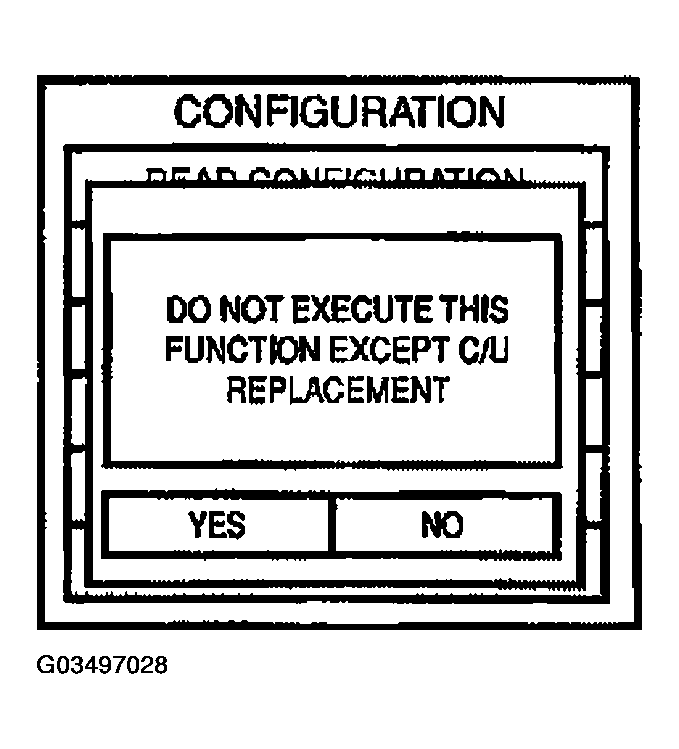

    Fig 8: Displaying CONFIGURATION Screen (2 Of 2)
    G03497028Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Using the following flow chart, identify the correct model and configuration list. Confirm and/or change setting value for each item according to the configuration list.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .

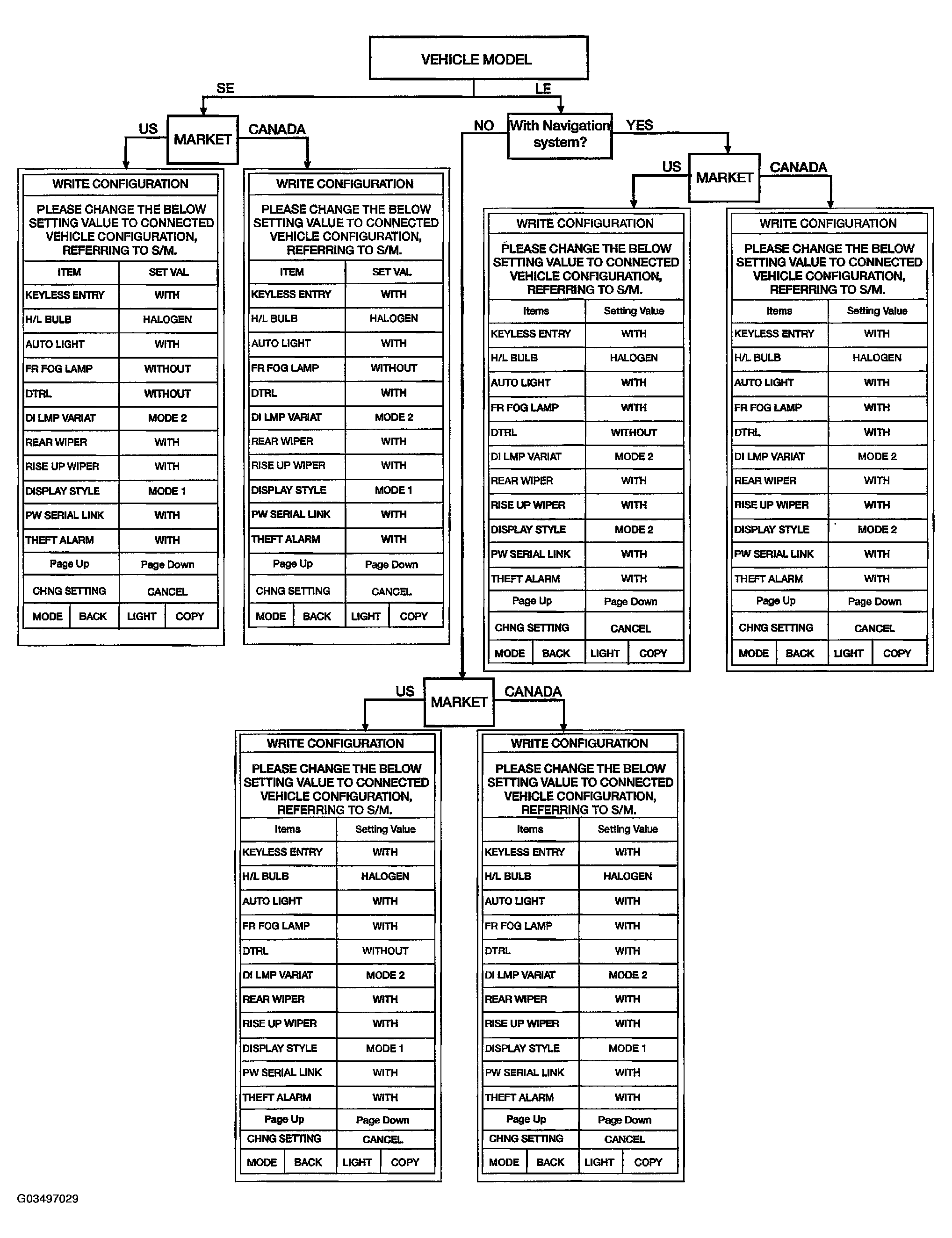

    Fig 9: Correct Model And Configuration List Identifying Flow Chart
    G03497029Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
    CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of brand-new BCM is same as the desirable configuration. If not. configuration which is set automatically by selecting vehicle model cannot be memorized.

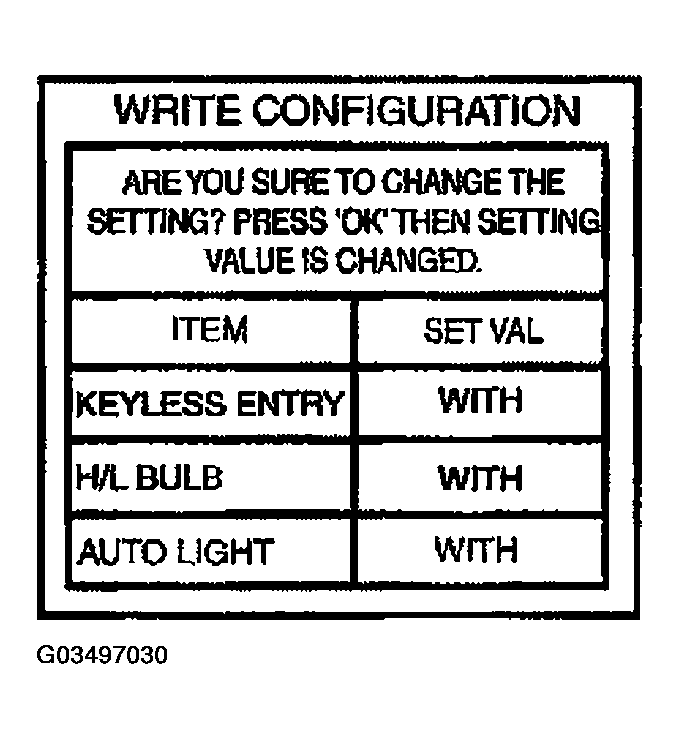

    Fig 10: Displaying WRITE CONFIGURATION Screen (1 Of 2)
    G03497030Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Touch "OK" on "WRITE CONFIGURATION" screen.

    If "CANCEL" is touched, it will return to previous screen.

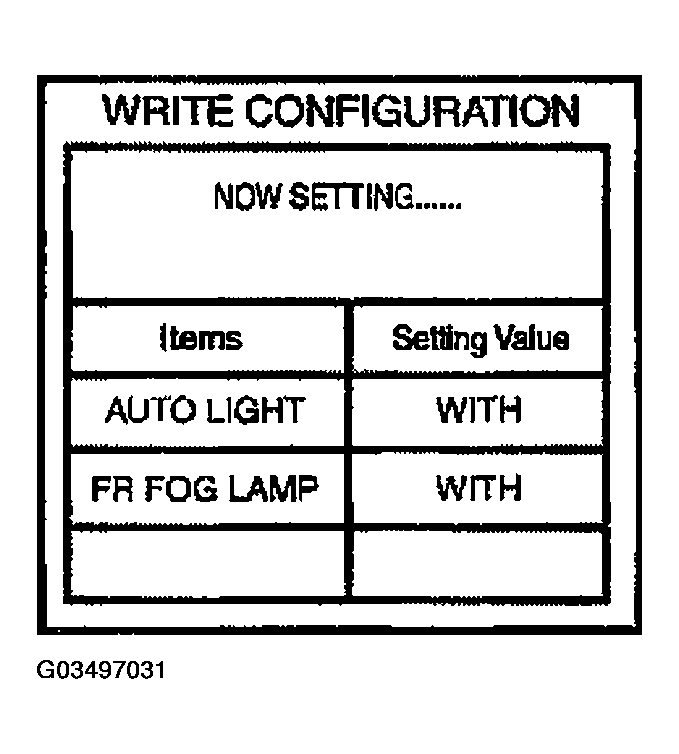

    Fig 11: Displaying WRITE CONFIGURATION Screen (2 Of 2)
    G03497031Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Wait until the next screen during setting.
  13. WRITE CONFIGURATION results are printed out automatically. Confirm "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with applicable configuration list shown in step  9.

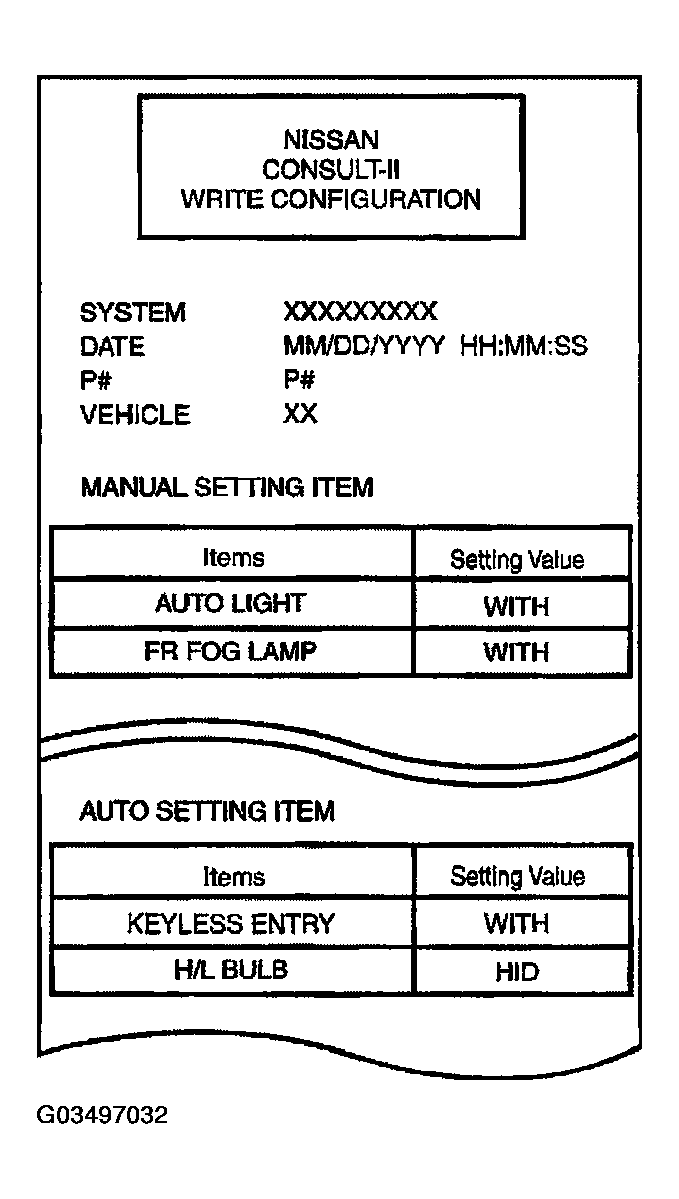

    Fig 12: Displaying WRITE CONFIGURATION Screen (1 Of 2)
    G03497032Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Touch "OK" on "WRITE CONFIGURATION" screen. WRITE CONFIGURATION is completed.

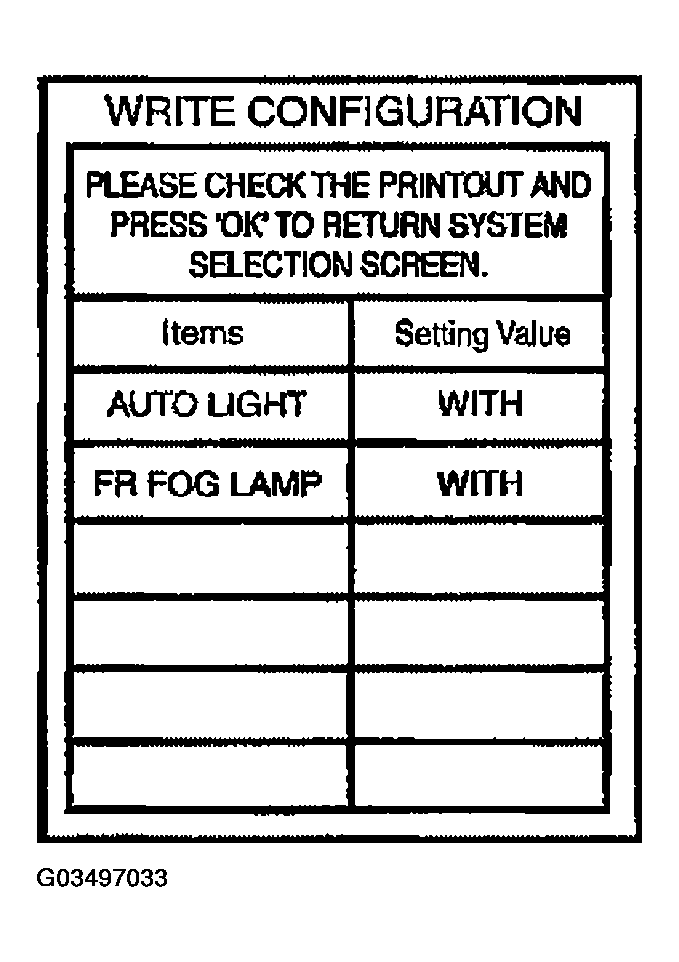

    Fig 13: Displaying WRITE CONFIGURATION Screen (2 Of 2)
    G03497033Courtesy of NISSAN MOTOR CO., U.S.A.
