Read Configuration Procedure

WARNING: This page is about a different car, the 2004 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

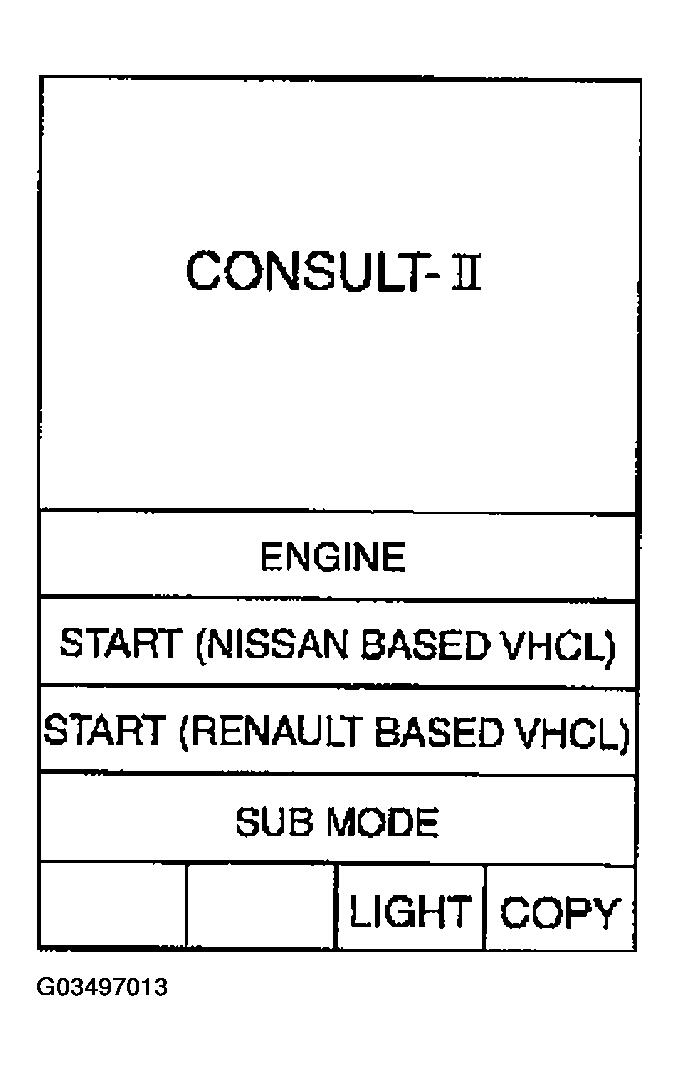

Fig 2: Displaying START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT ITEM" screen. If "BCM" is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

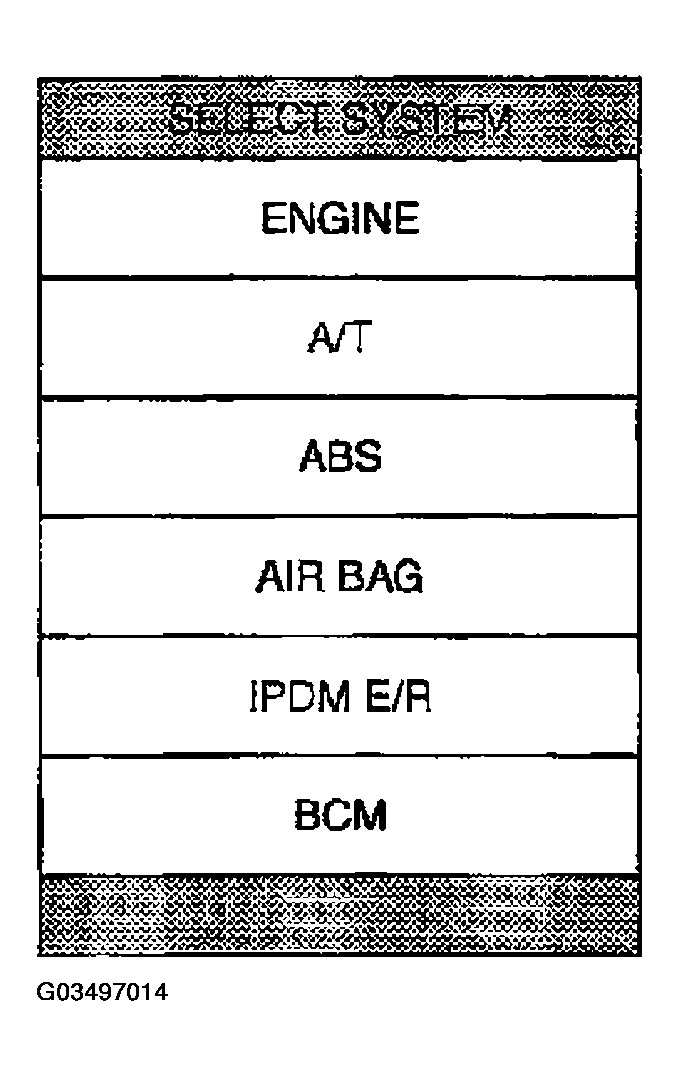

Fig 3: Displaying SELECT ITEM screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT TEST ITEM" screen.

Fig 4: Displaying SELECT TEST ITEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

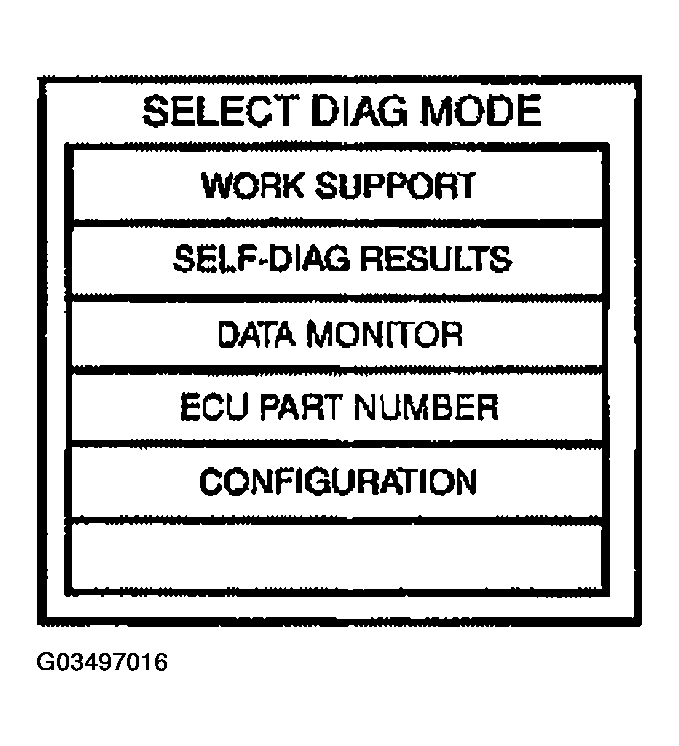

Fig 5: Displaying CONFIGURATION On SELECT DIAG MODE Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

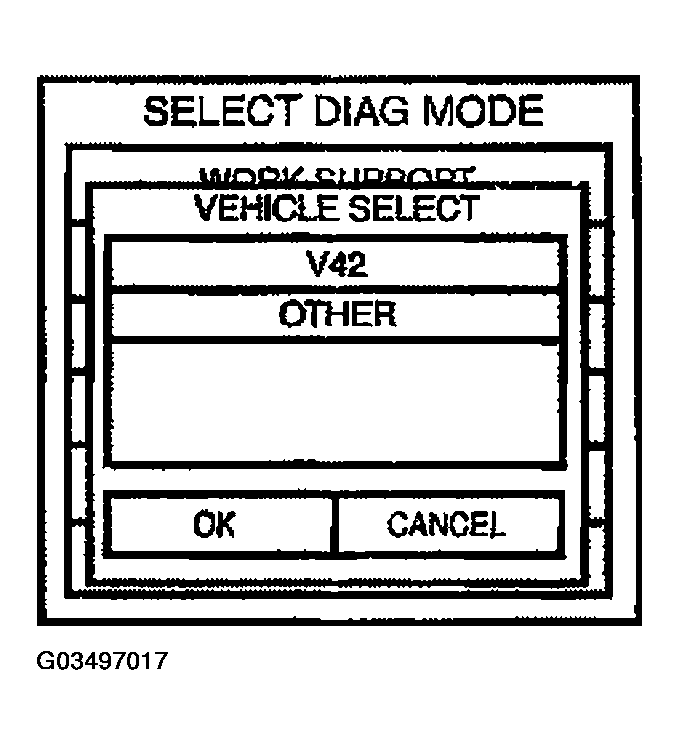

Touch "OTHER" and "OK" on "VEHICLE SELECT screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .

Fig 6: Displaying VEHICLE SELECT Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "READ CONFIGURATION" on "CONFIGURATION" screen.

Fig 7: Displaying CONFIGURATION Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

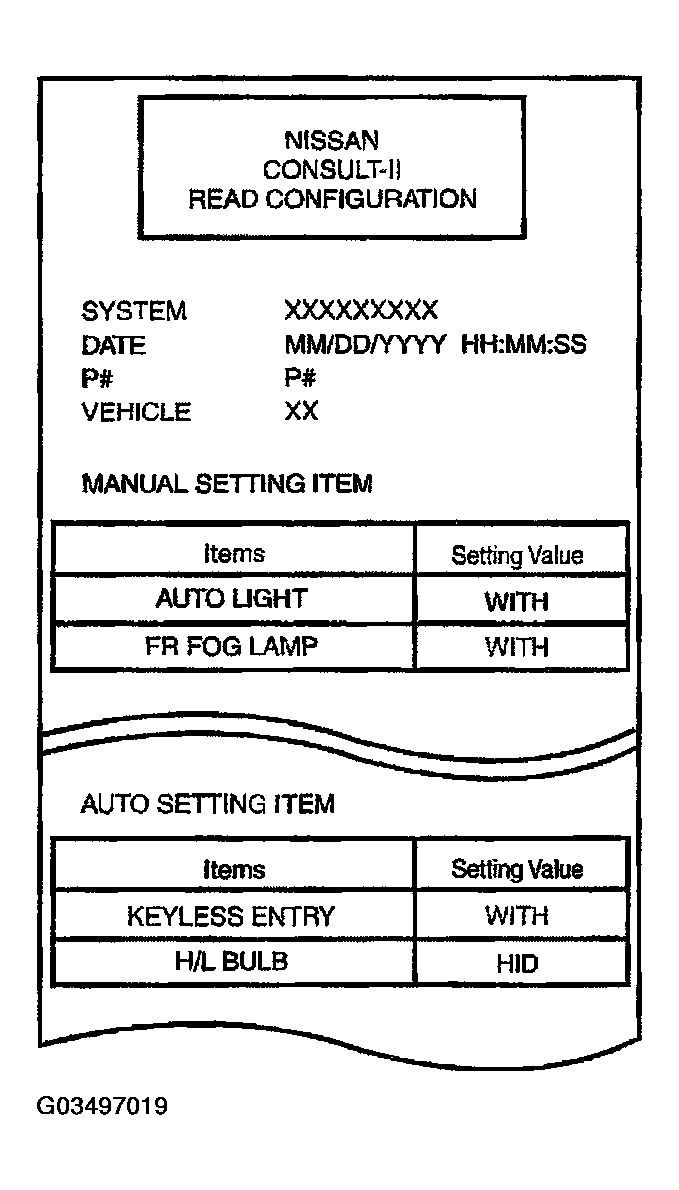

Configuration of current BCM is printed out automatically. Configuration of brand-new BCM before executing "WRITE CONFIGURATION" is as follows.

WRITE CONFIGURATION

MANUAL SETTING ITEM
Items	Setting Value
KEYLESS ENTRY	WITH
H/L BULB	HALOGEN
AUTO LIGHT	WITH
FR FOG LAMP	WITH
DTRL	WITHOUT
Dl LAMP VARIANT	MODE2
REAR WIPER	WITH
RISE UP WIPER	WITH
DISPLAY STYLE	MODE2
PW SERIAL LINK	WITH
THEFT ALARM	WITH
AUTO SETTING ITEM
CDL UNLK TYPE	MODE1
LIGHT RECOG	MODE2
WAKUP SLP LOG	MODE1
AUTOLIGHT SEN	SENSOR2
BUCKLE SW	MODE2
SEAT BLT WARN	WITH

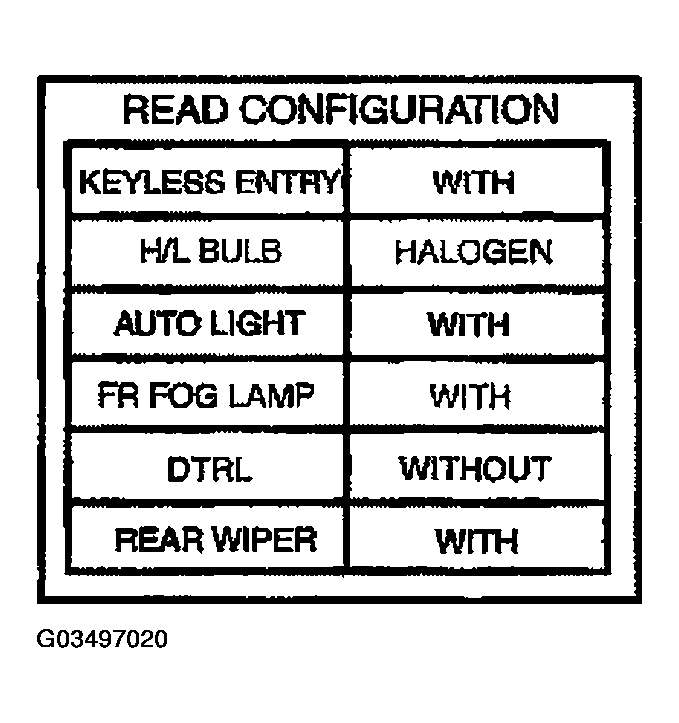

Fig 8: Displaying READ CONFIGURATION Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Touch "BACK" on "READ CONFIGURATION" screen.

Fig 9: Displaying READ CONFIGURATION Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
