4. Check Cooling Fan Motor-1 Circuit-I

1. Disconnect cooling fan motor-1 harness connector.

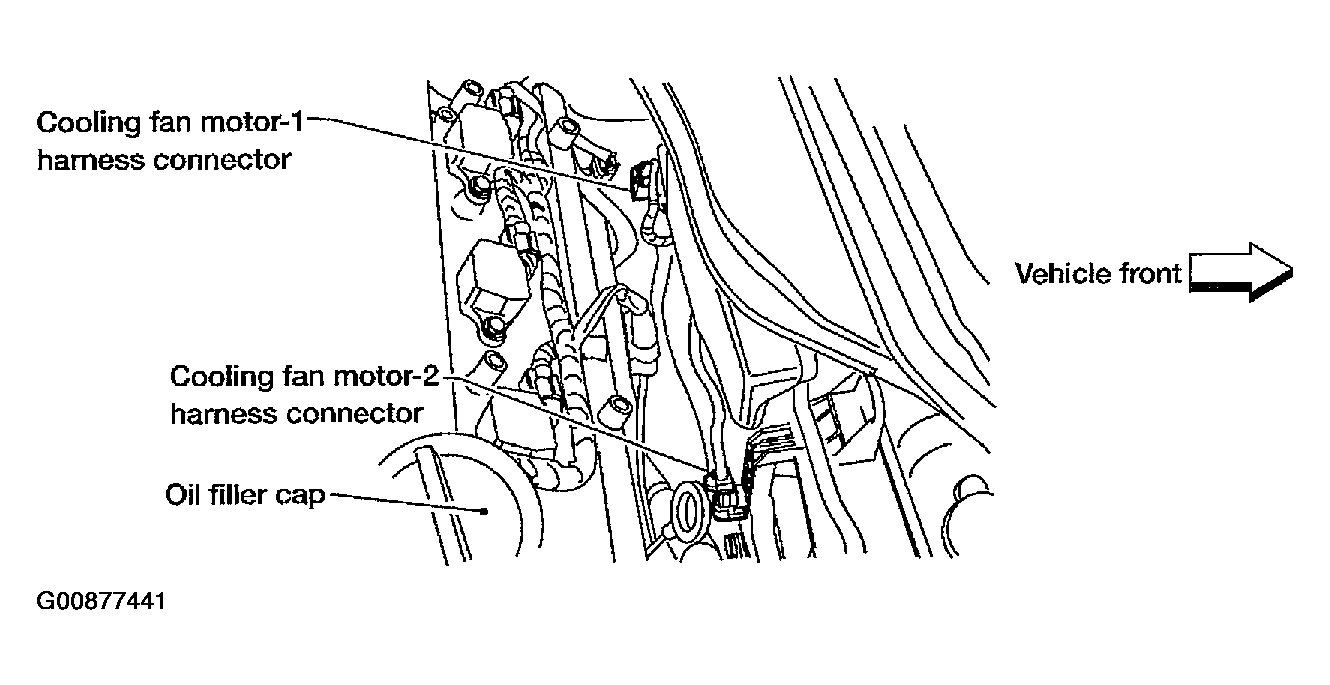

   Fig 1: Disconnect Cooling Fan Motor-1 Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check voltage between cooling fan motor-1 terminals 1, 2 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

1. OK: GO TO 6 .
2. NG: GO TO 5.

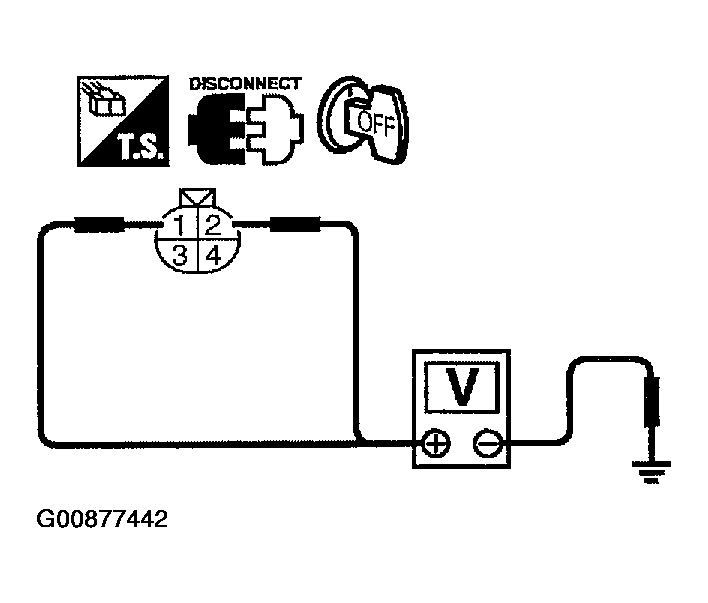

Fig 2: Check voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
