8. Check ASCD Brake Switch Power Supply Circuit

1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Turn ignition switch ON.

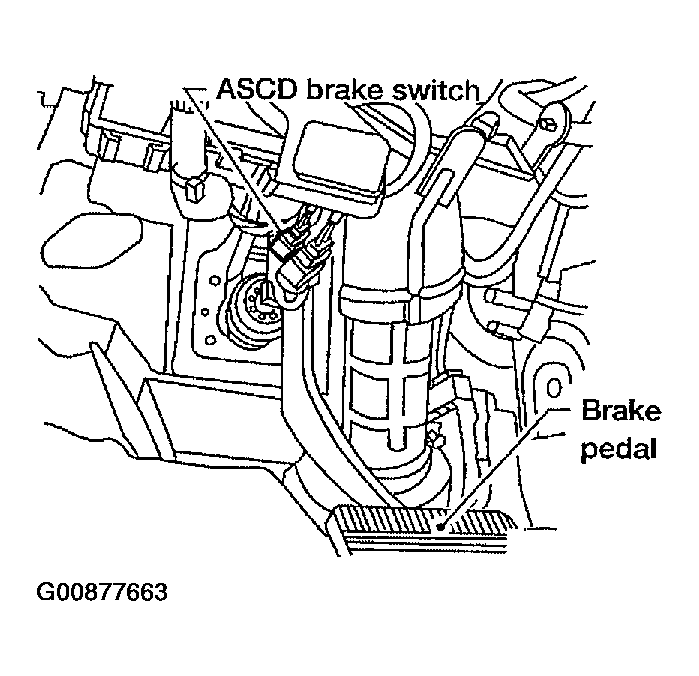

   Fig 1: Locating Brake Pedal Switches

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

1. OK: GO TO 10 .
2. NG: GO TO 9.

Fig 2: Check voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
