Idle Speed and Ignition Timing

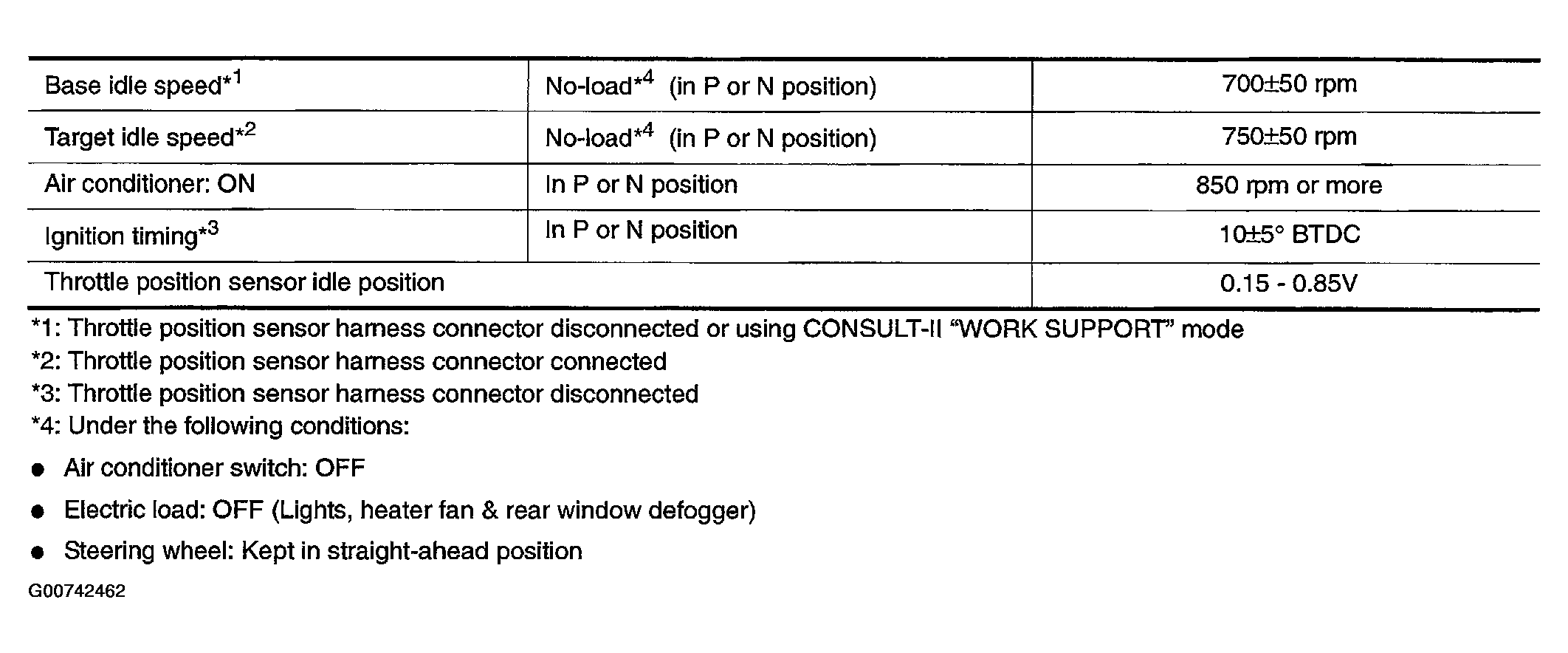

Fig 1: Idle Speed And Ignition Timing Specification Chart
G00742462Courtesy of NISSAN MOTOR CO., U.S.A.
