Section 8 (Transfer Case)
>>
Overhaul
>>
Shift Control Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Shift Control Components
WARNING:
This page is about a different variant/trim than selected.

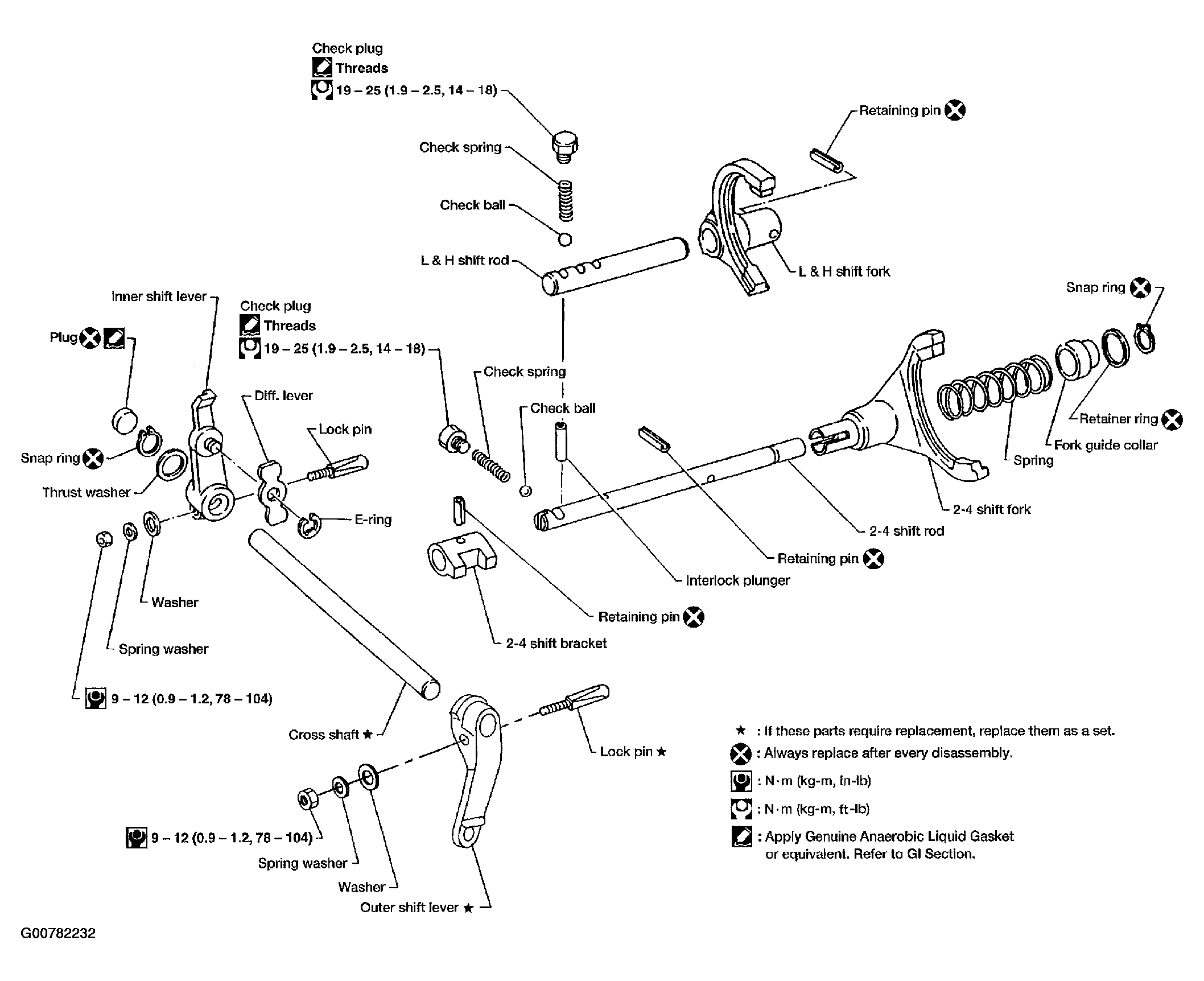

Fig 1: Exploded View Of Shift Control Components Including Torque Specs
Courtesy of NISSAN MOTOR CO., U.S.A.
