DTC P0127: IAT Sensor: Wiring Diagram

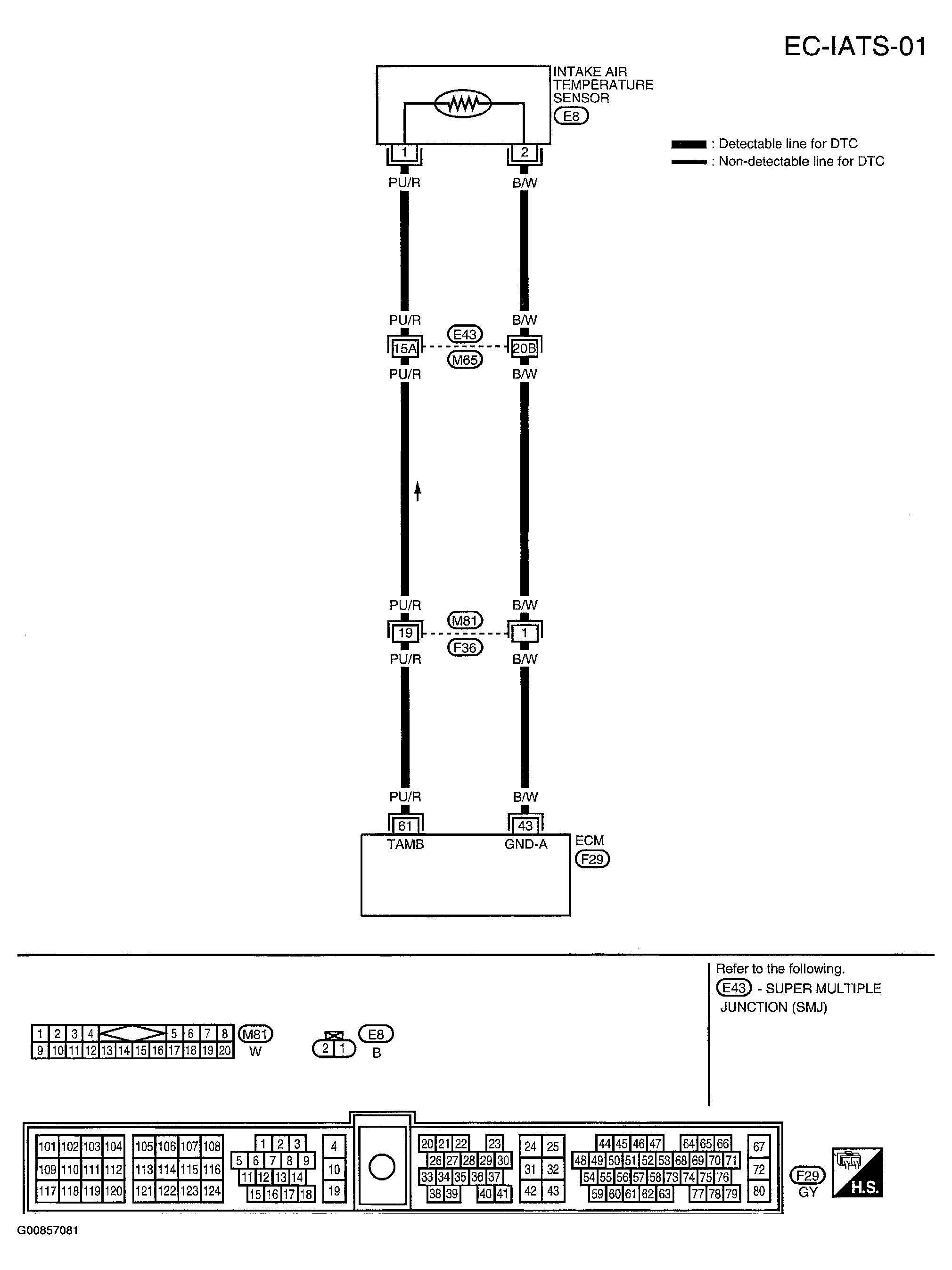

Fig 1: Wiring Diagram - EC-IATS-01
Courtesy of NISSAN MOTOR CO., U.S.A.
