Checking Front Wheel Turning Angle

  1. Rotate steering wheel fully right, then left; measure turning angle. Refer to FRONT WHEEL TURNING ANGLE .
  2. If it is not within specification, check stopper bolt adjustment. Refer to FRONT WHEEL TURNING ANGLE .

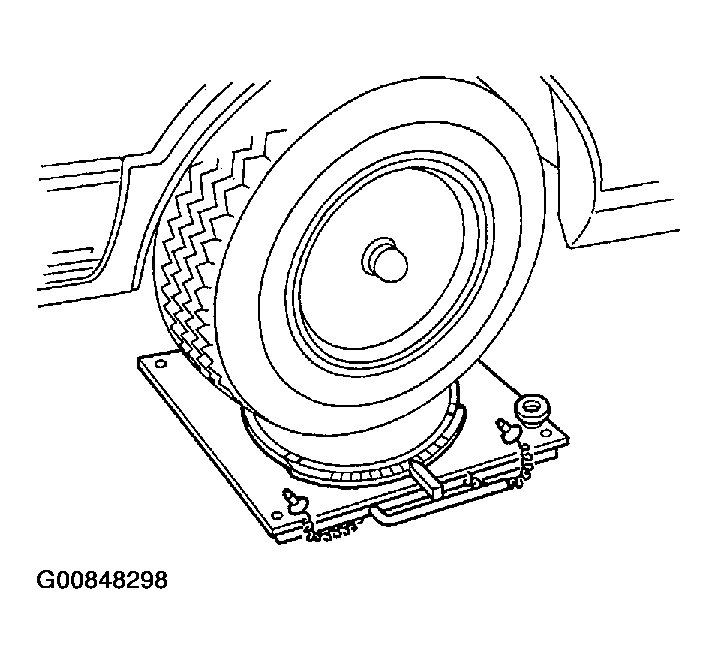

    Fig 1: Checking Front Wheel Turning Angle
    G00848298Courtesy of NISSAN MOTOR CO., U.S.A.
