Mil And Data Link Connector: Wiring Diagram

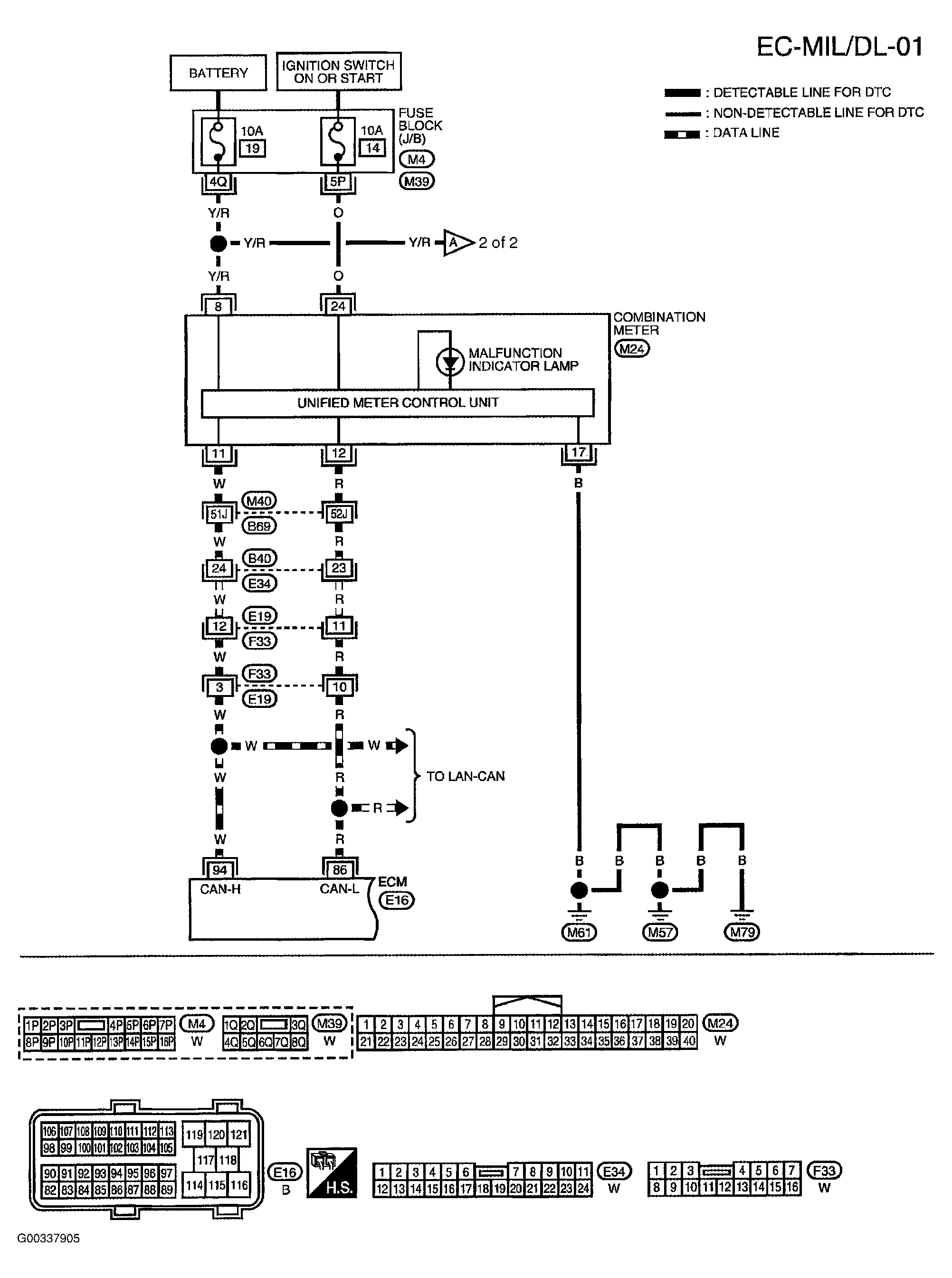

Fig 1: Wiring Diagram - EC-MIL/DL-01
G00337905Courtesy of NISSAN MOTOR CO., U.S.A.

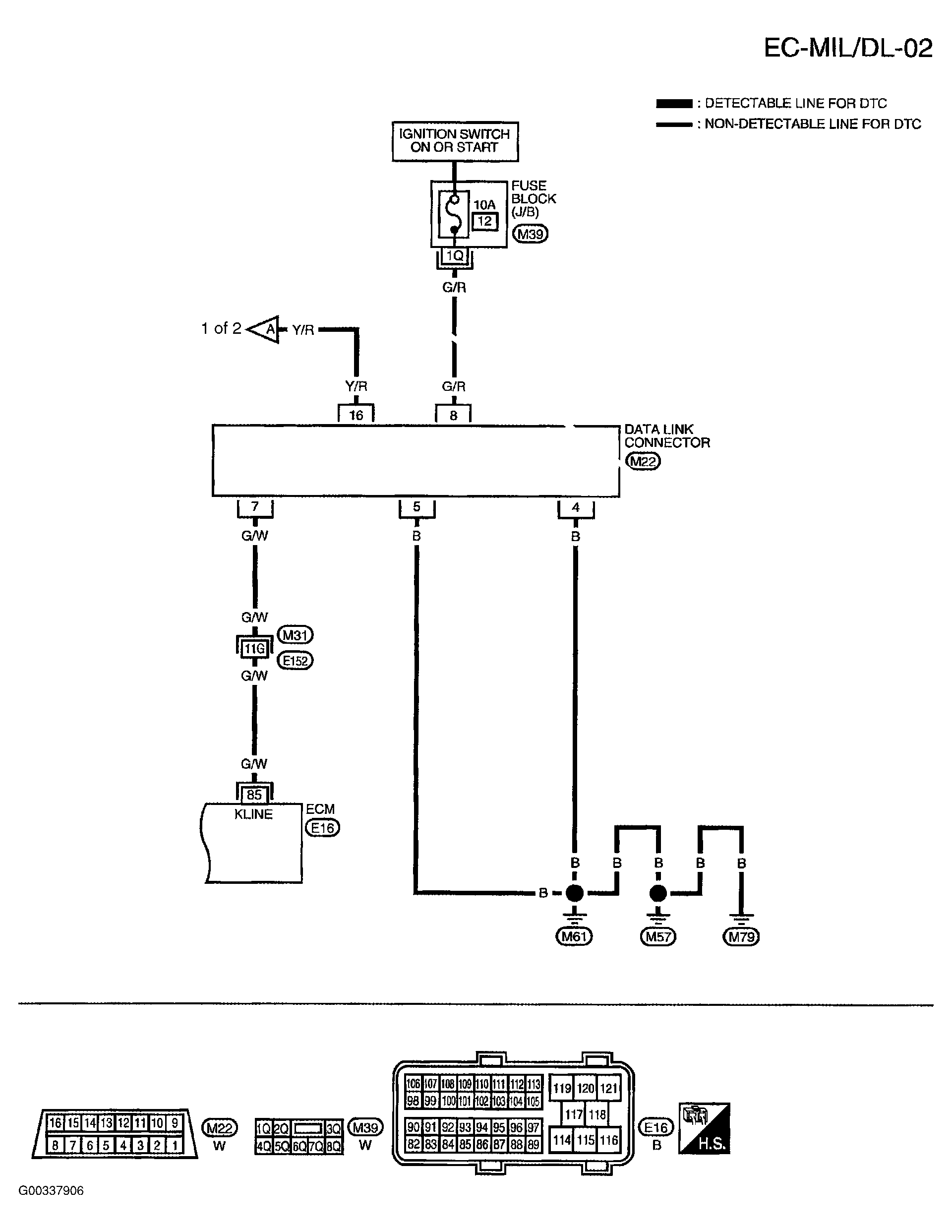

Fig 2: Wiring Diagram - EC-MIL/DL-02
G00337906Courtesy of NISSAN MOTOR CO., U.S.A.
