Power Window System
>>
Schematic (With Left Front Only Power Window Anti-Pinch System)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic (With Left Front Only Power Window Anti-Pinch System)

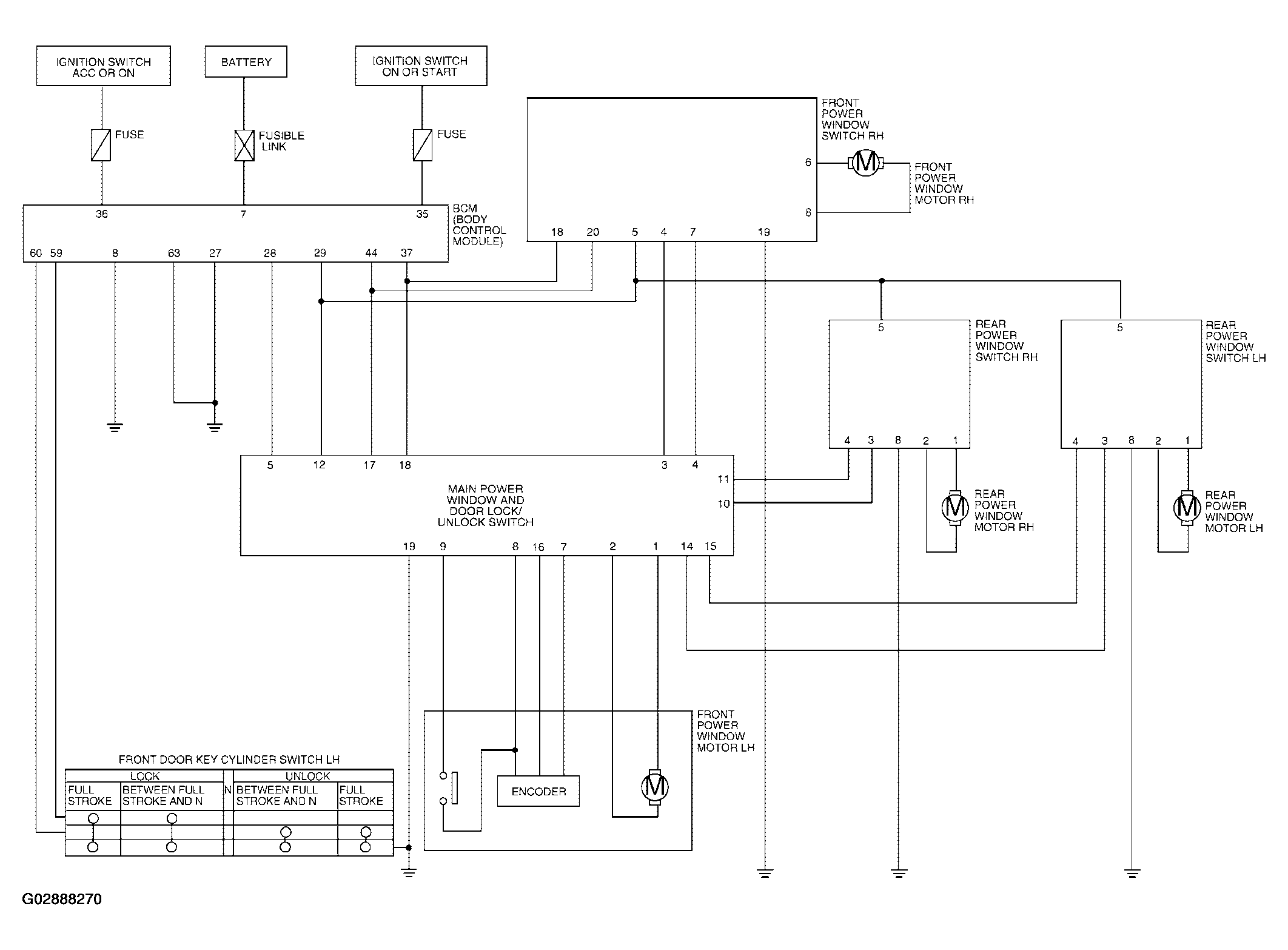

Fig 1: Schematic (With Left Front Only Power Window Anti-Pinch System)
Courtesy of NISSAN MOTOR CO., U.S.A.
