Disassembly and Assembly

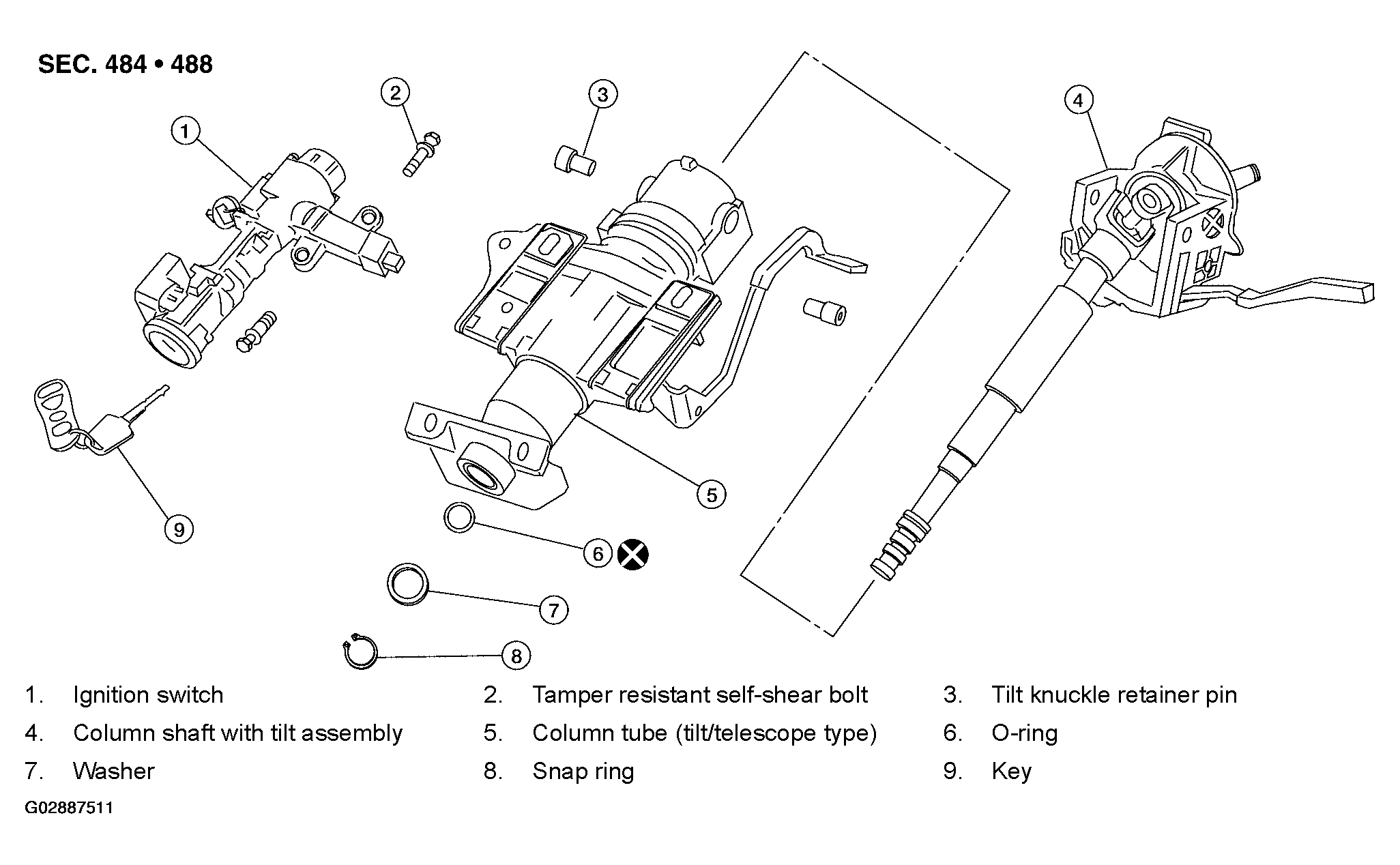

Fig 1: Exploded View Of Steering Column Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the tamper resistance self-shear type screws with a drill or other appropriate tool.
Install new tamper resistant self-shear type screws.
Fig 2: Installing Tamper Resistant Self-Shear Type Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
