Charging Systems: Generator: Construction

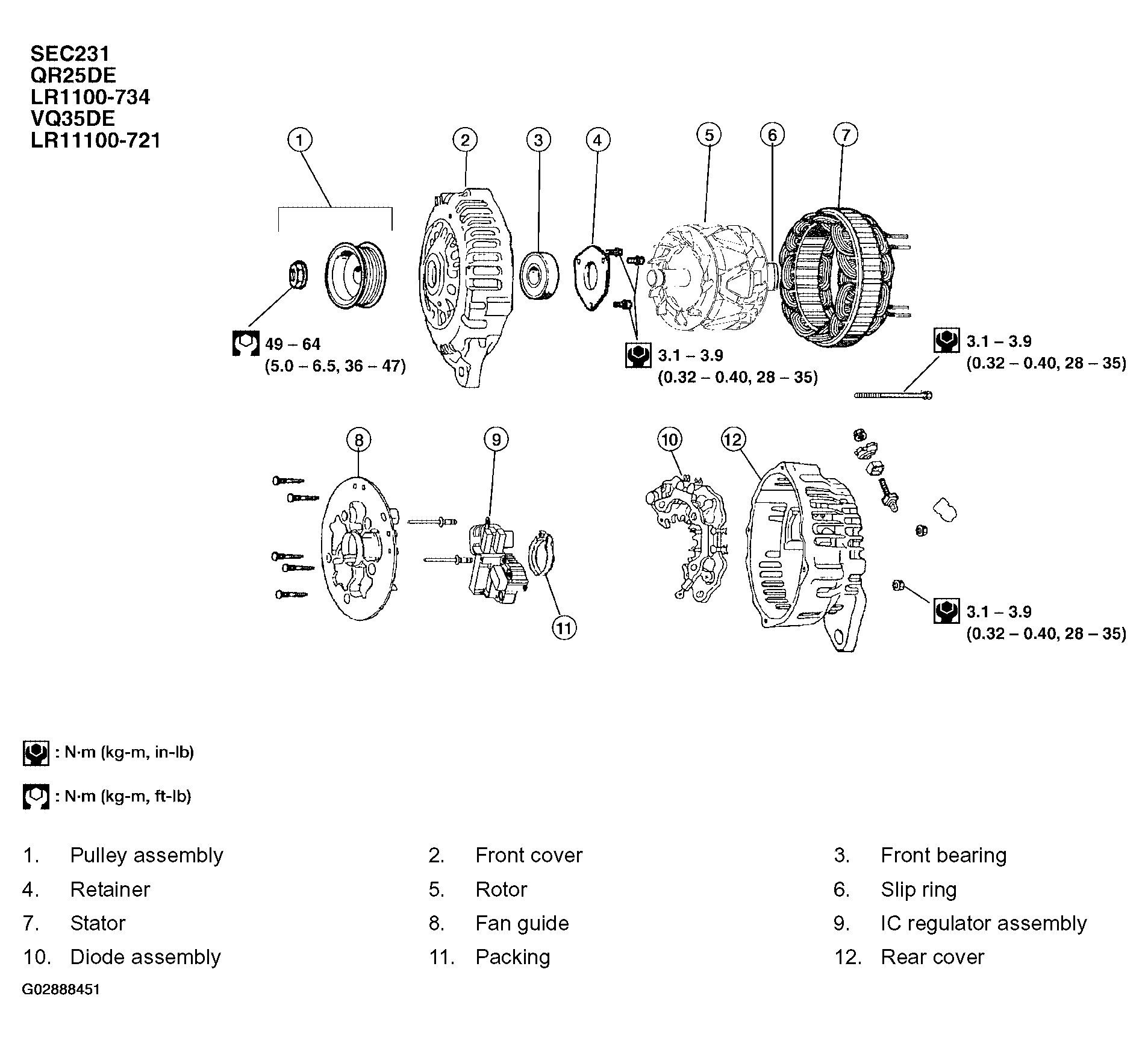

Fig 1: Generator With Torque Specifications
G02888451Courtesy of NISSAN MOTOR CO., U.S.A.
