Control Device

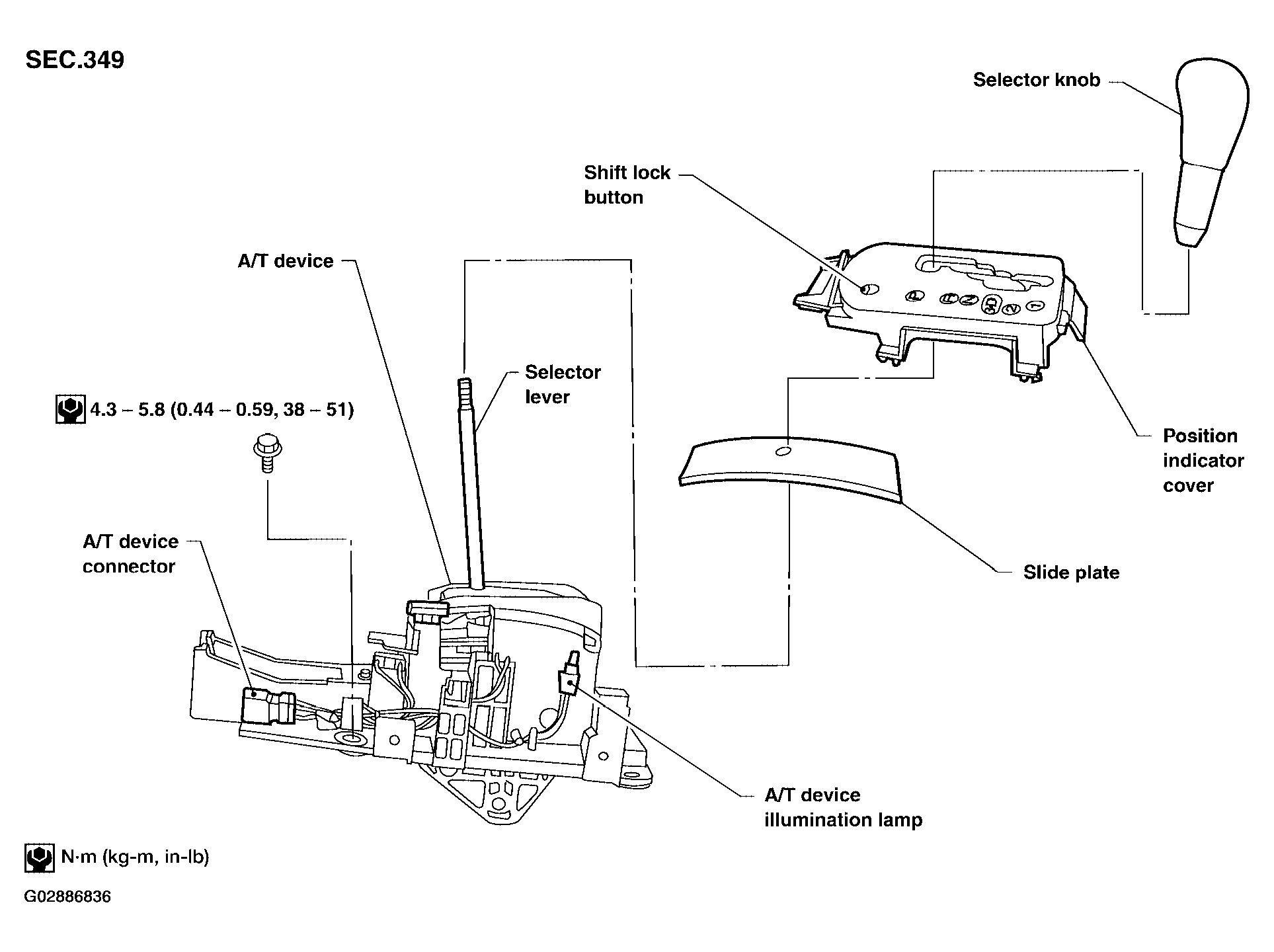

Fig 1: Exploded View Of Control Device Components & Torque Specifications
G02886836Courtesy of NISSAN MOTOR CO., U.S.A.
