Control Cable

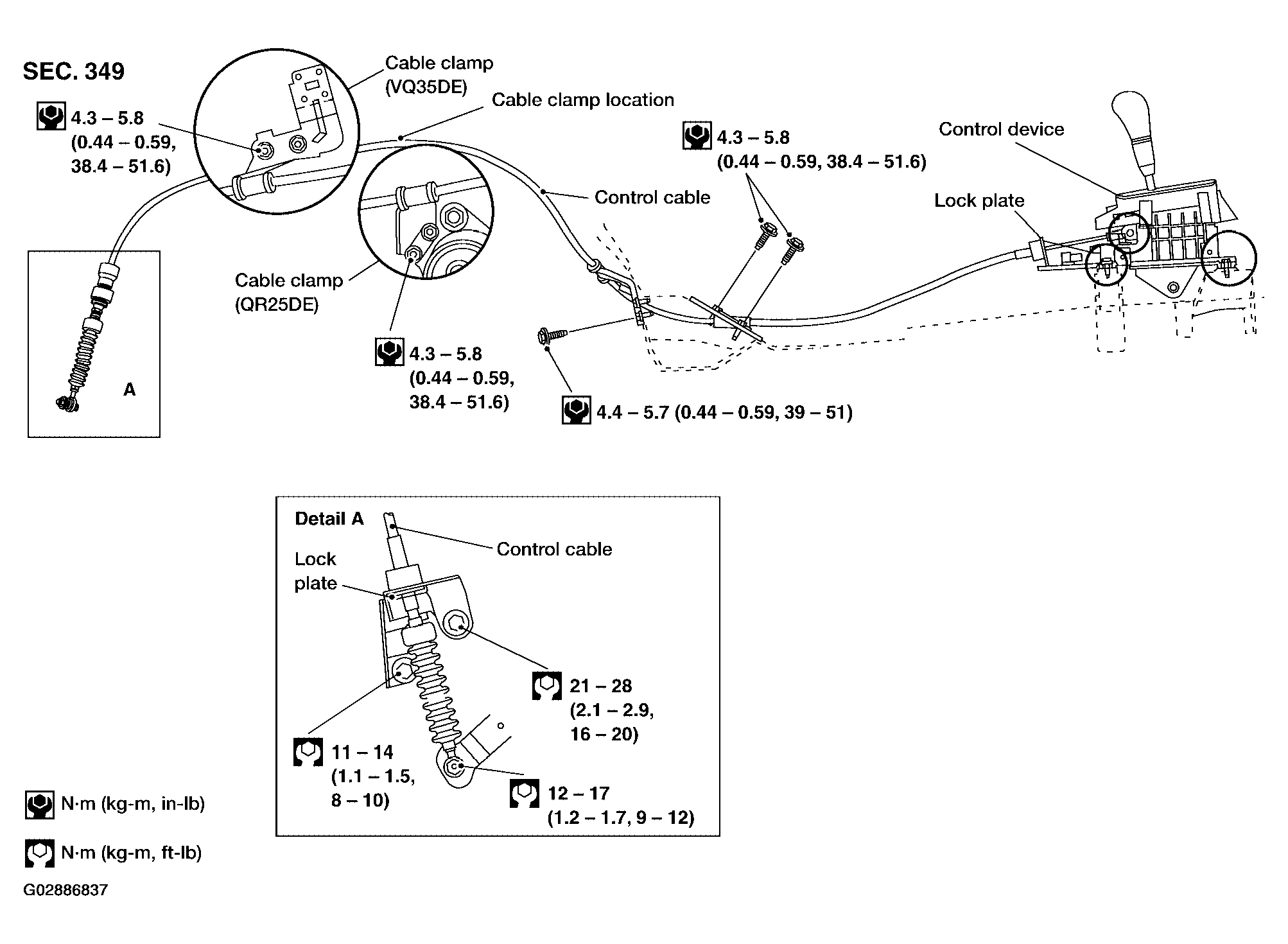

Fig 1: Exploded View Of Control Cable Components & Torque Specifications
G02886837Courtesy of NISSAN MOTOR CO., U.S.A.
