Final Drive: Components

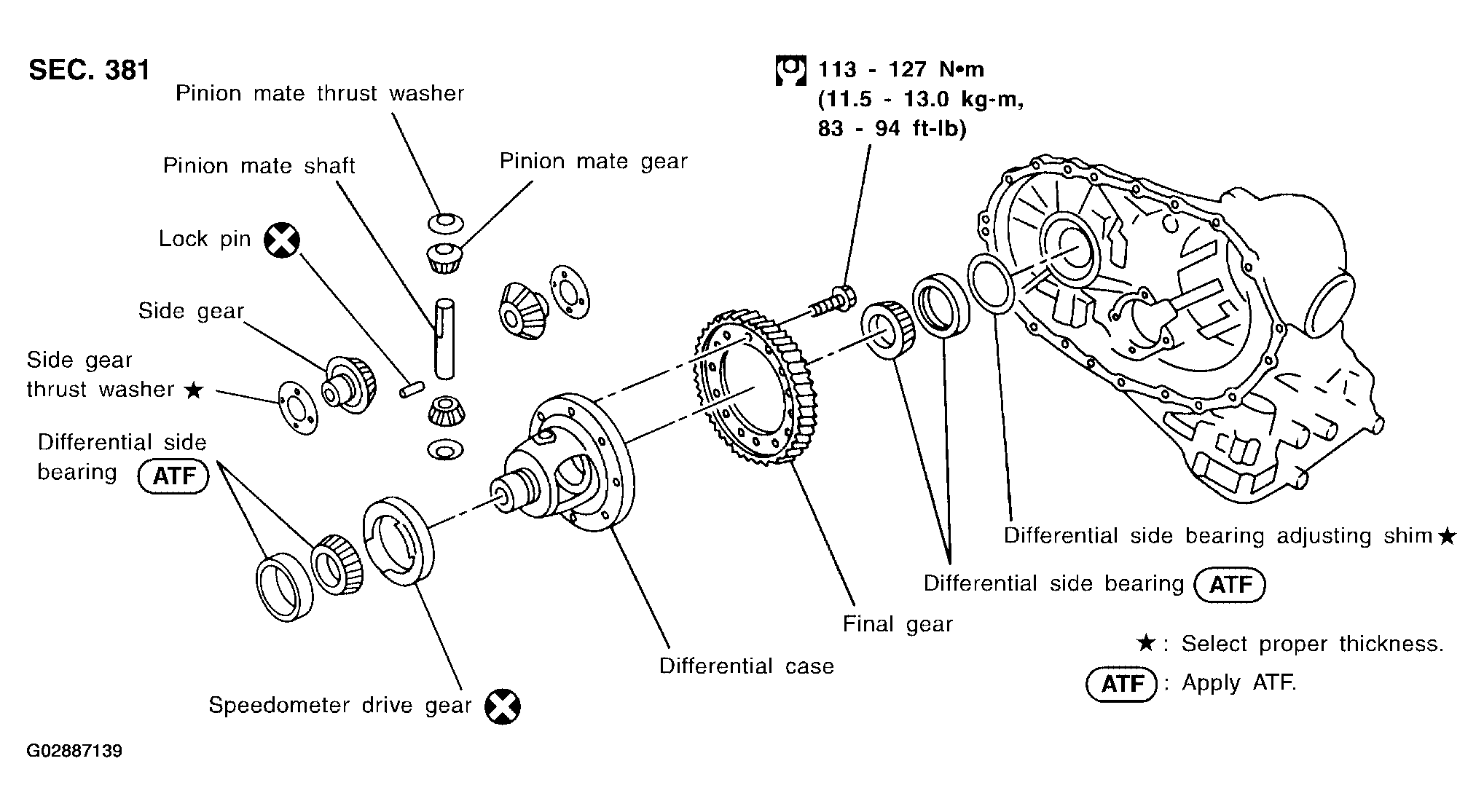

Fig 1: Exploded View Of Final Drive Assembly Components & Torque Specifications
G02887139Courtesy of NISSAN MOTOR CO., U.S.A.
