Removal and Installation: Notes

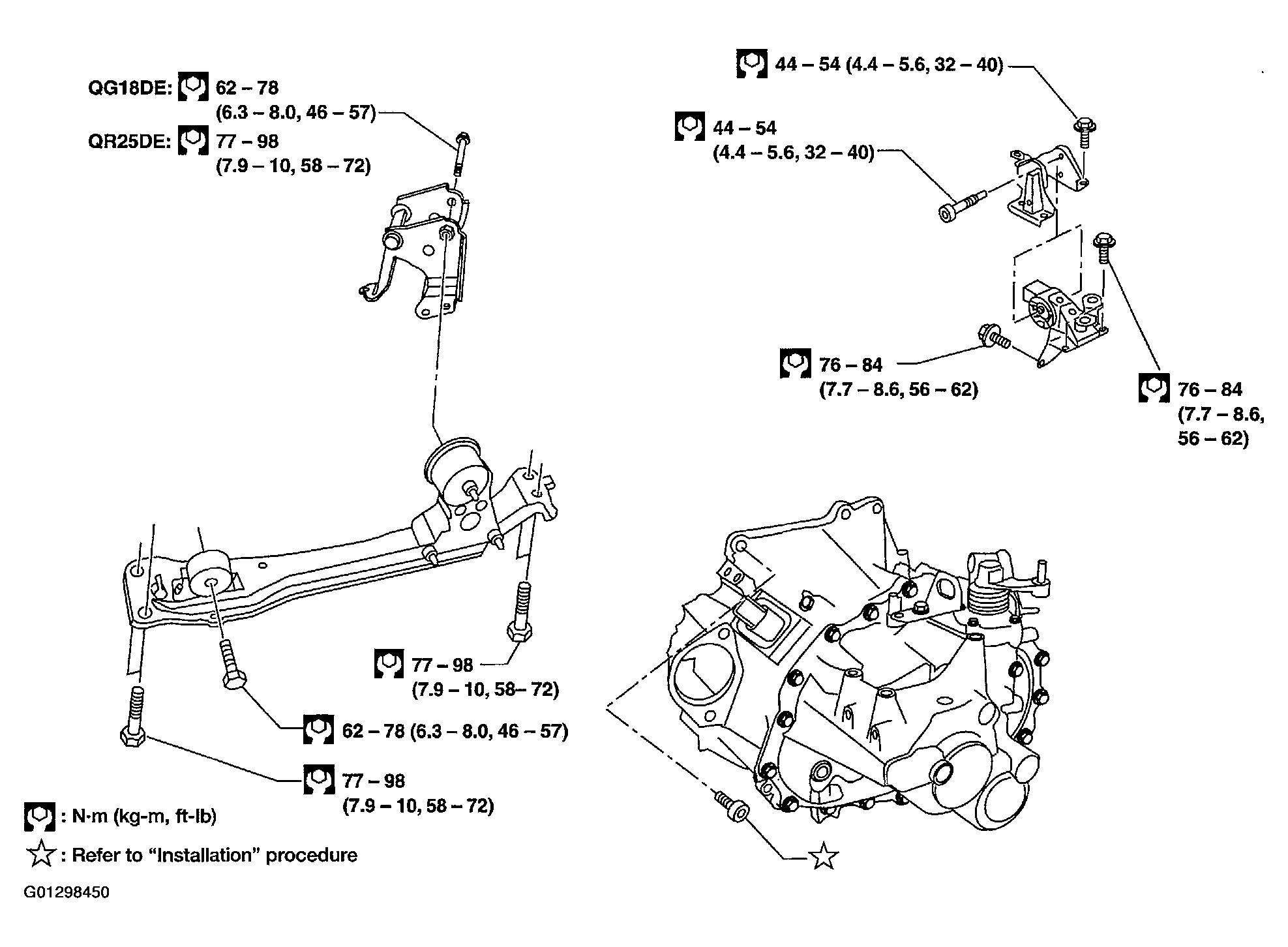

Fig 1: Removing And Installing Transaxle Assembly
G01298450Courtesy of NISSAN MOTOR CO., U.S.A.
