Removal and Installation of Control Device and Cable

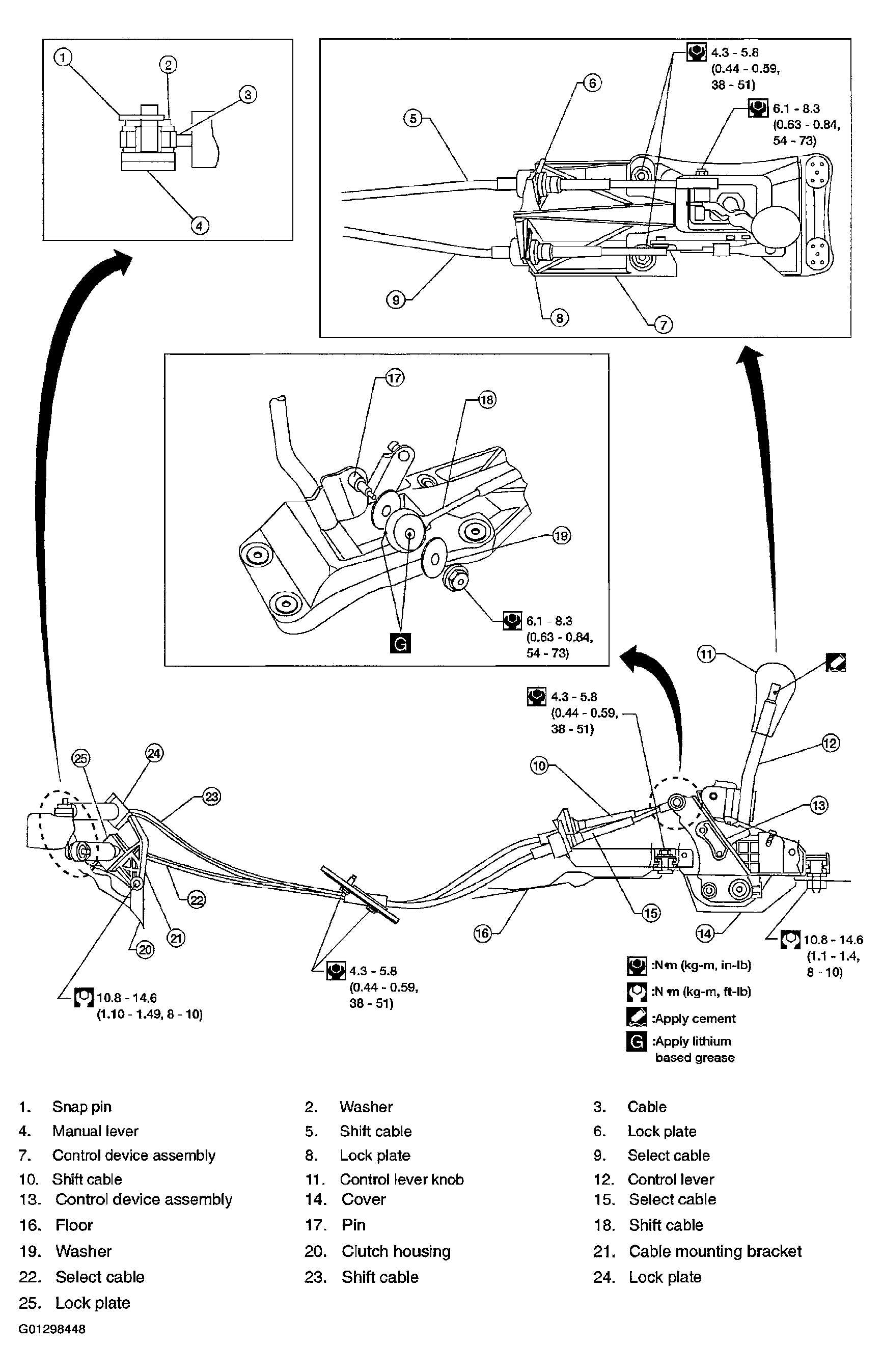

Fig 1: Identifying Control Linkage Control Device And Cable Components
G01298448Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Note that the select side lock plate for securing the control cable is different from the one on the shift side.
  • After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st, 2nd, or Reverse.
