Clutch System: Components: Notes

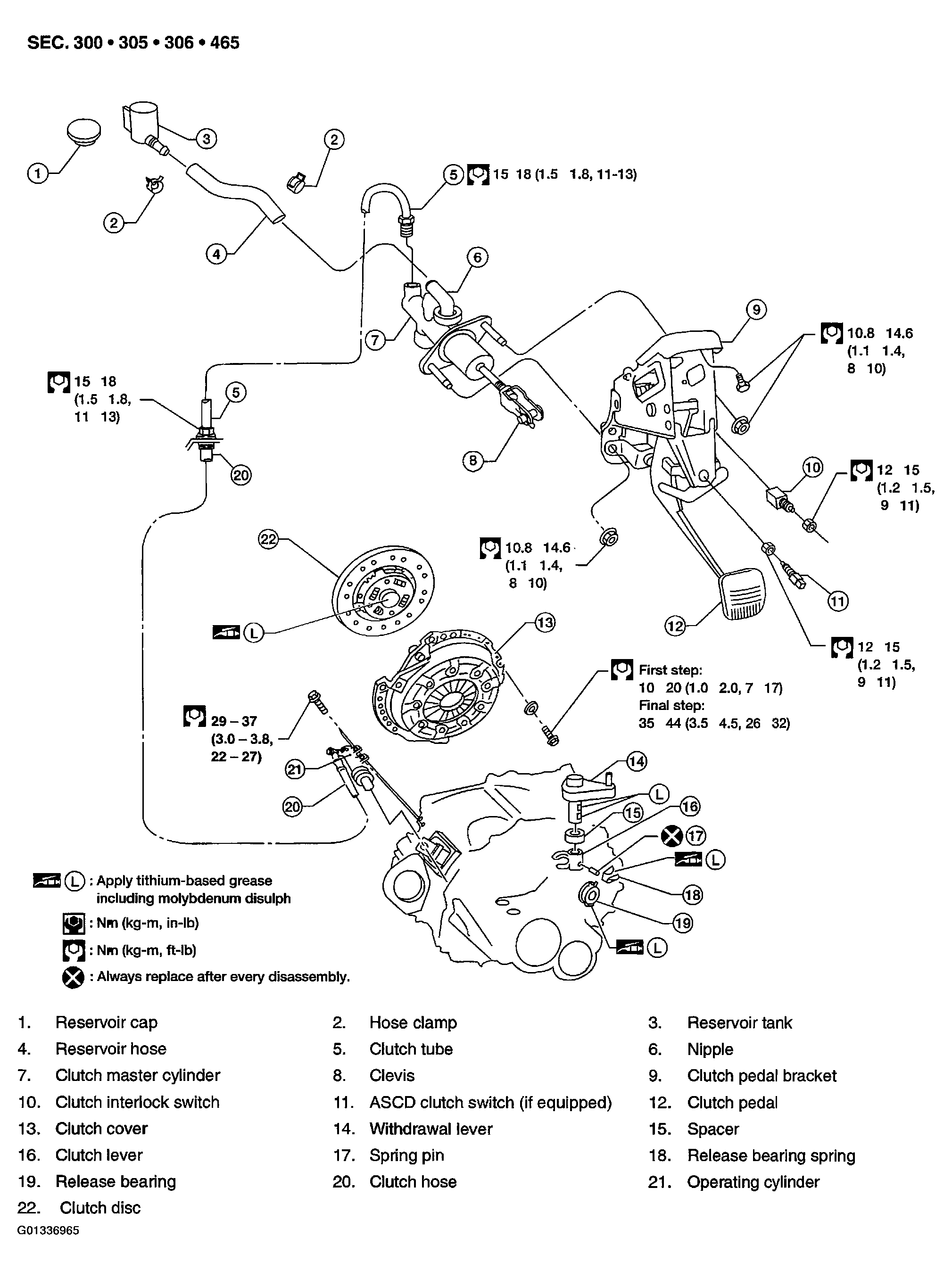

Fig 1: Clutch System Replacement Components And Fastener Torque Specification
G01336965Courtesy of NISSAN MOTOR CO., U.S.A.
