Final Drive: Components

WARNING: This page is about a different variant/trim than selected.

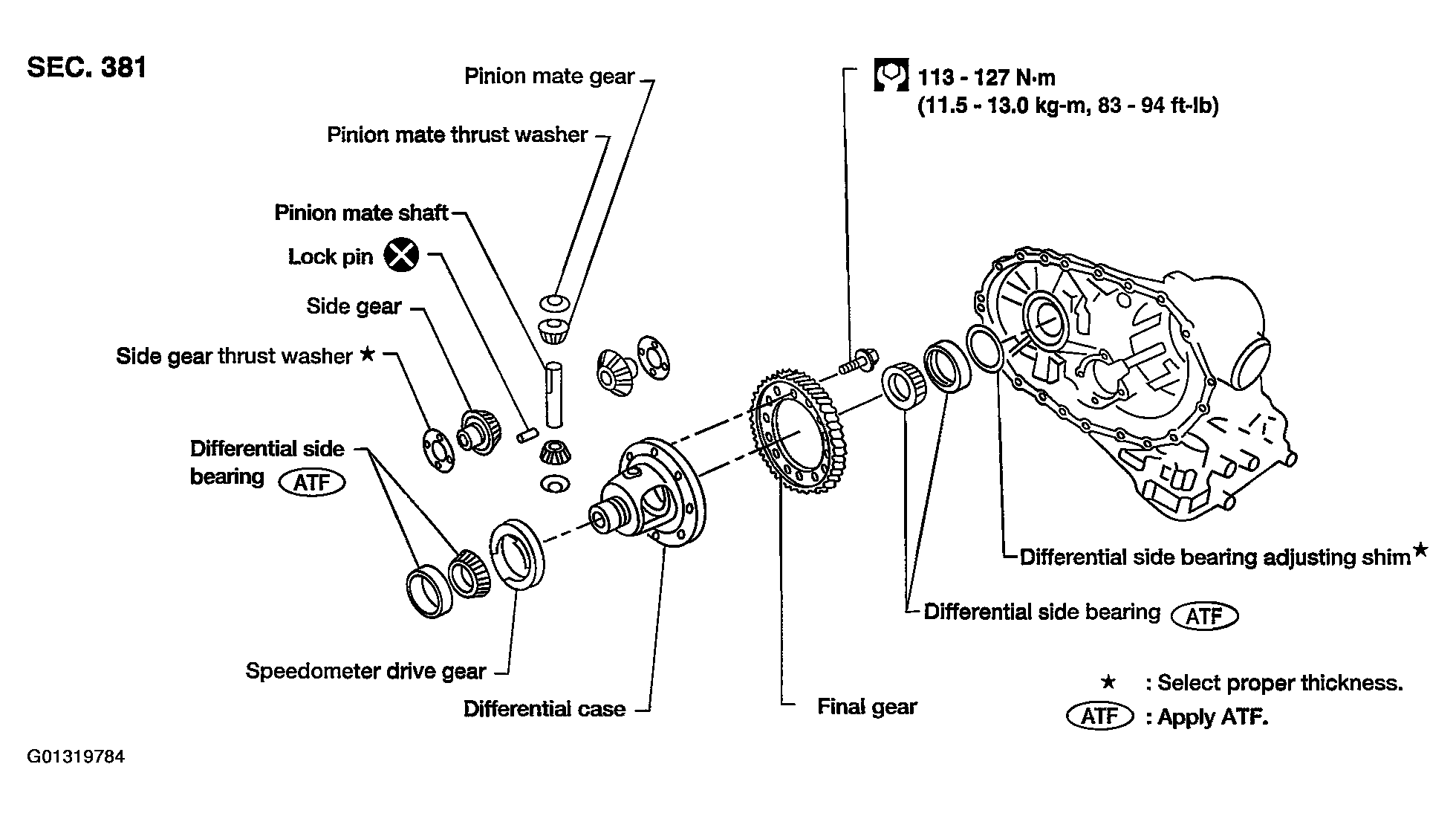

Fig 1: Identifying Final Drive Components
G01319784Courtesy of NISSAN MOTOR CO., U.S.A.
