CONSULT-II Operation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.

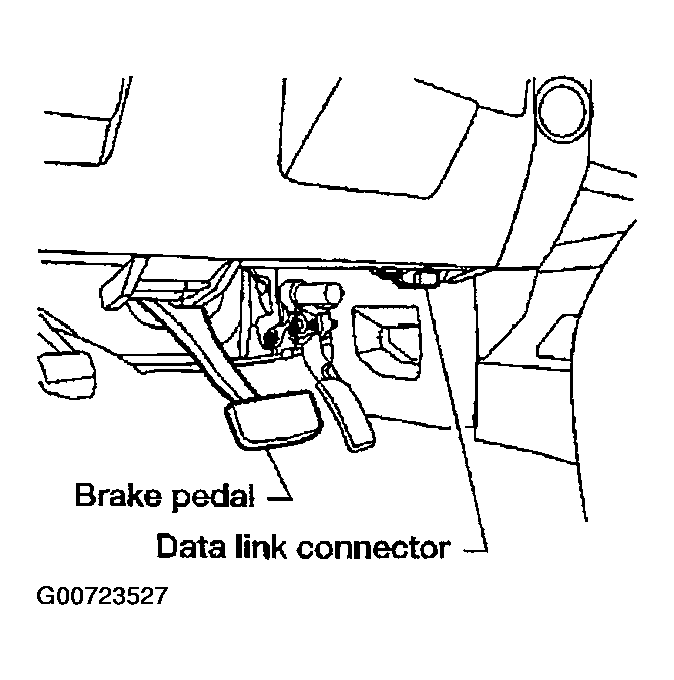

    Fig 1: Locating Data Link Connector
    G00723527Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

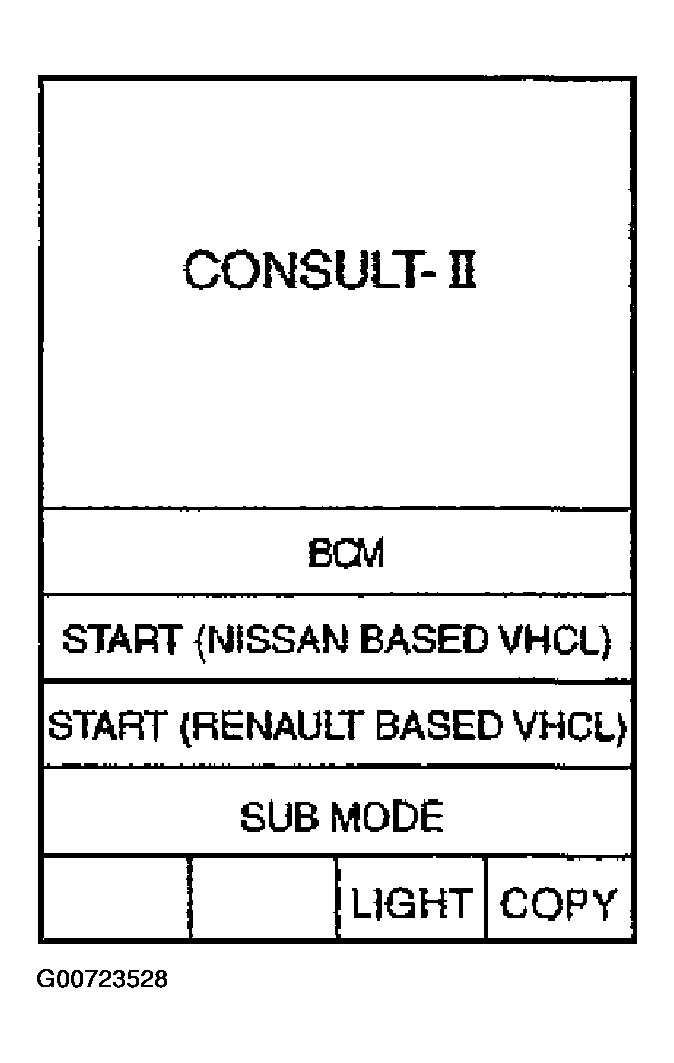

    Fig 2: CONSULT-II Display
    G00723528Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on the "SELECT SYSTEM" screen. If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

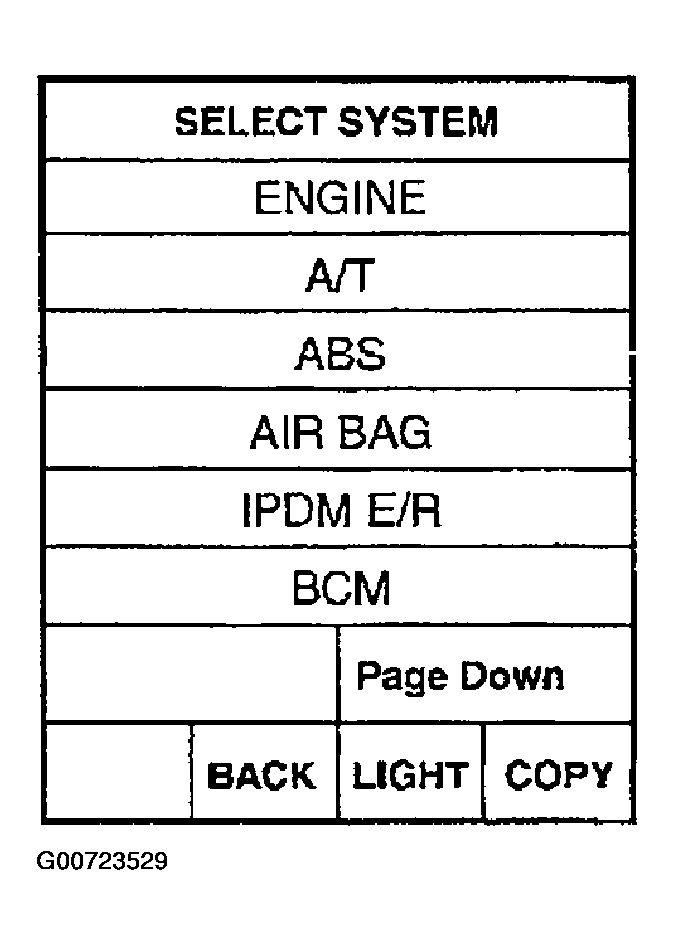

    Fig 3: CONSULT-II Display
    G00723529Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

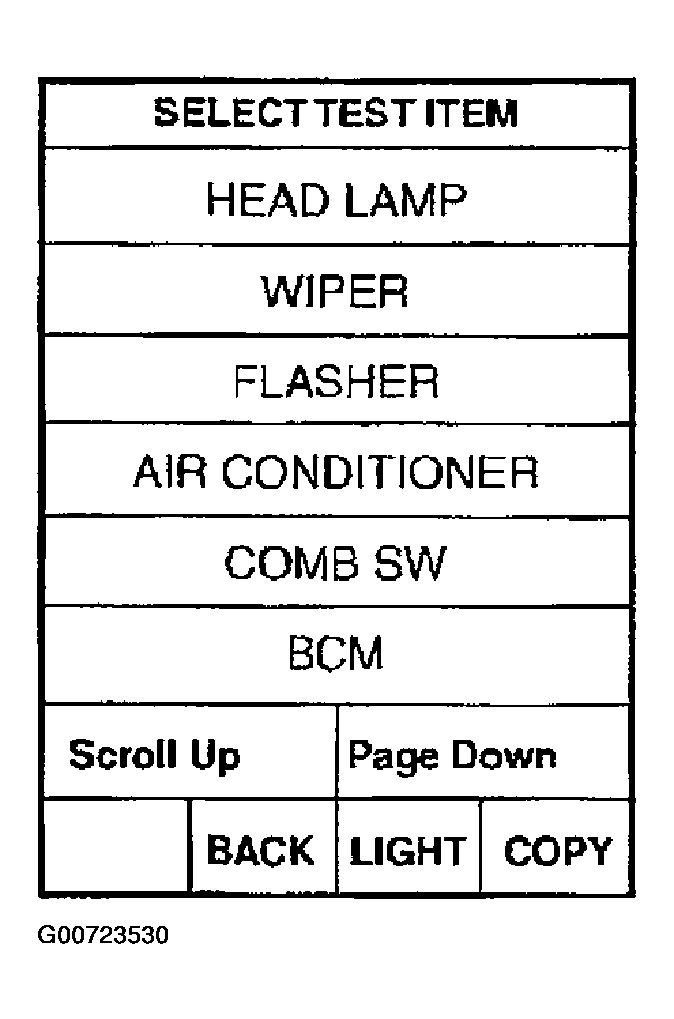

Fig 4: CONSULT-II Display
G00723530Courtesy of NISSAN MOTOR CO., U.S.A.
