Cooling Fan Motor

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect cooling fan motor harness connector.
  2. Supply cooling fan motor terminals with battery voltage and check operation.
    COOLING FAN MOTOR OPERATION

    Cooling fan speed Cooling fan motor terminals
    (+) (-)
    Low 1 3 and 4
    2 3 and 4
    High 1 and 2 3 and 4

    Cooling fan motor should operate  .

    If NG, replace cooling fan motor.

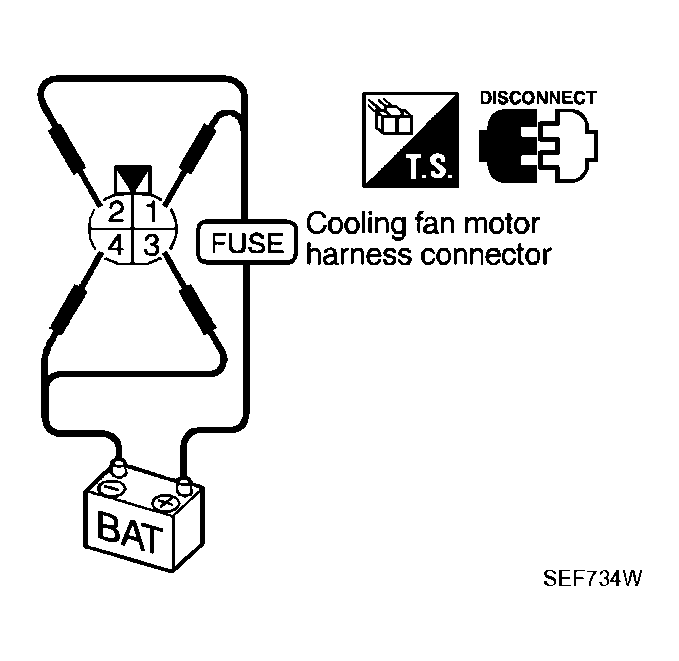

    Fig 1: Inspecting Cooling Fan Motor
    G04203103Courtesy of NISSAN MOTOR CO., U.S.A.
