DTC Confirmation Procedure

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

For DTC confirmation procedure, see Fig 1 .

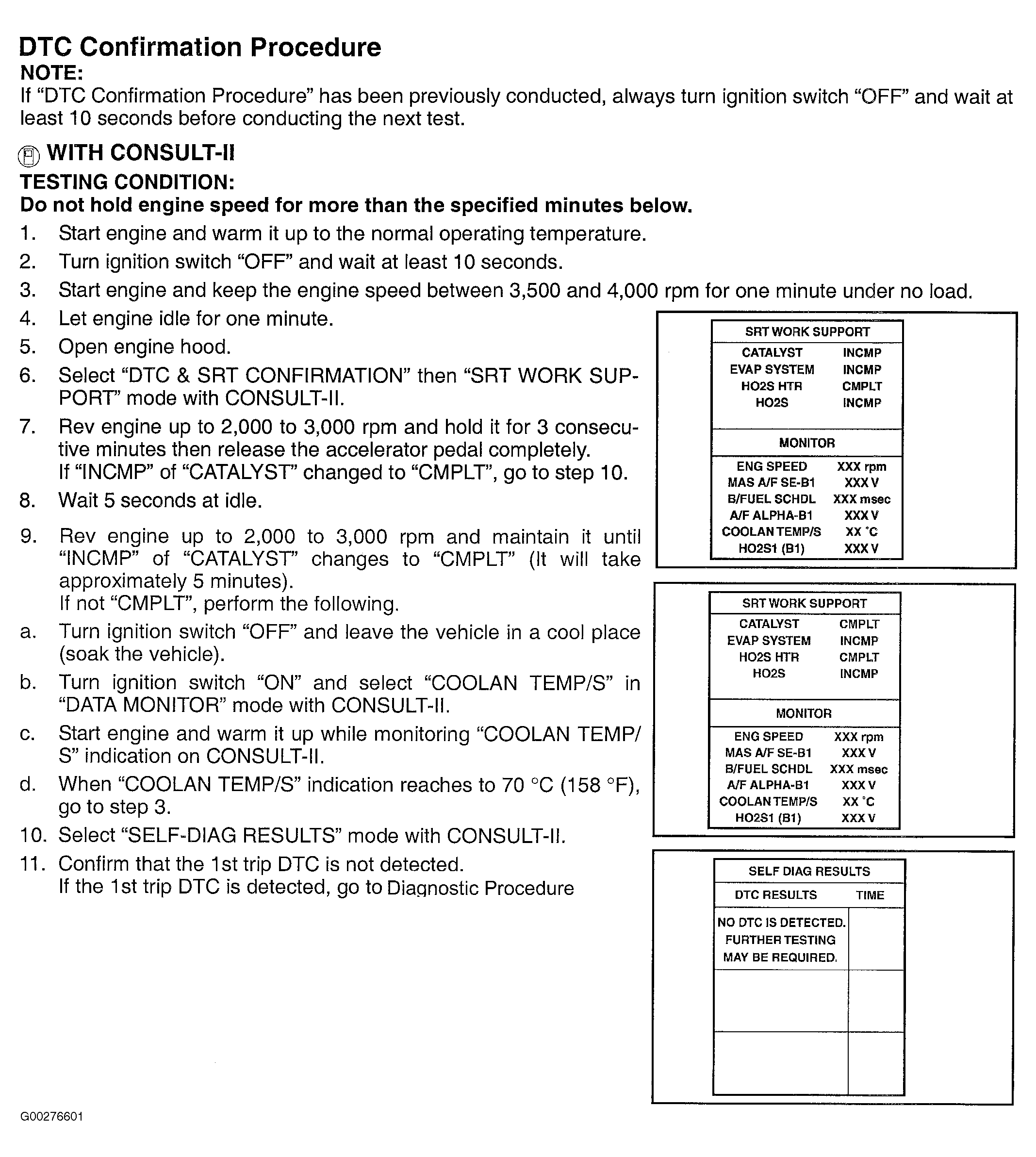

Fig 1: DTC Confirmation Procedure
G00276601Courtesy of NISSAN MOTOR CO., U.S.A.
