Checking Disc Brake: Pad

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Check for any wear or damage. Repair or replace as necessary.

Standard thickness :Refer to "FRONT DISC BRAKE ". "REAR DISC BRAKE ".

Repair limit thickness : Refer to "FRONT DISC BRAKE ". "REAR DISC BRAKE ".

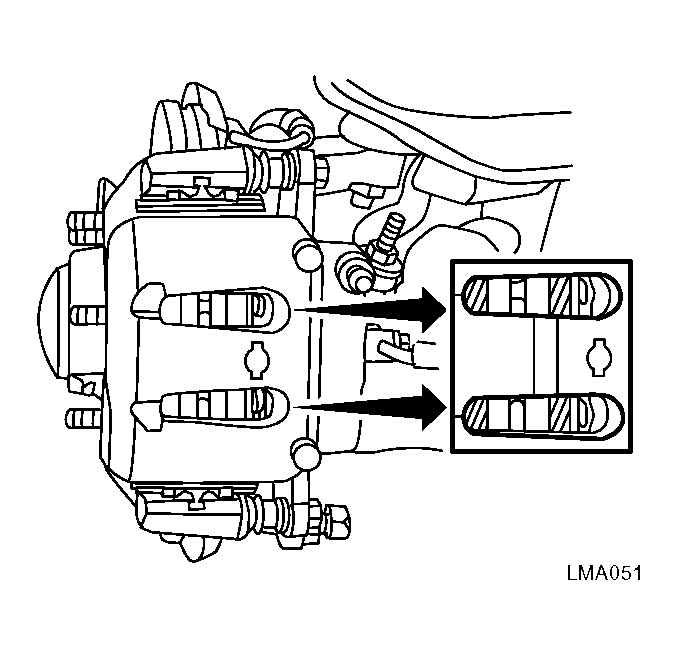

Fig 1: Checking Pad

Courtesy of NISSAN MOTOR CO., U.S.A.
