Base And Mid Level System
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

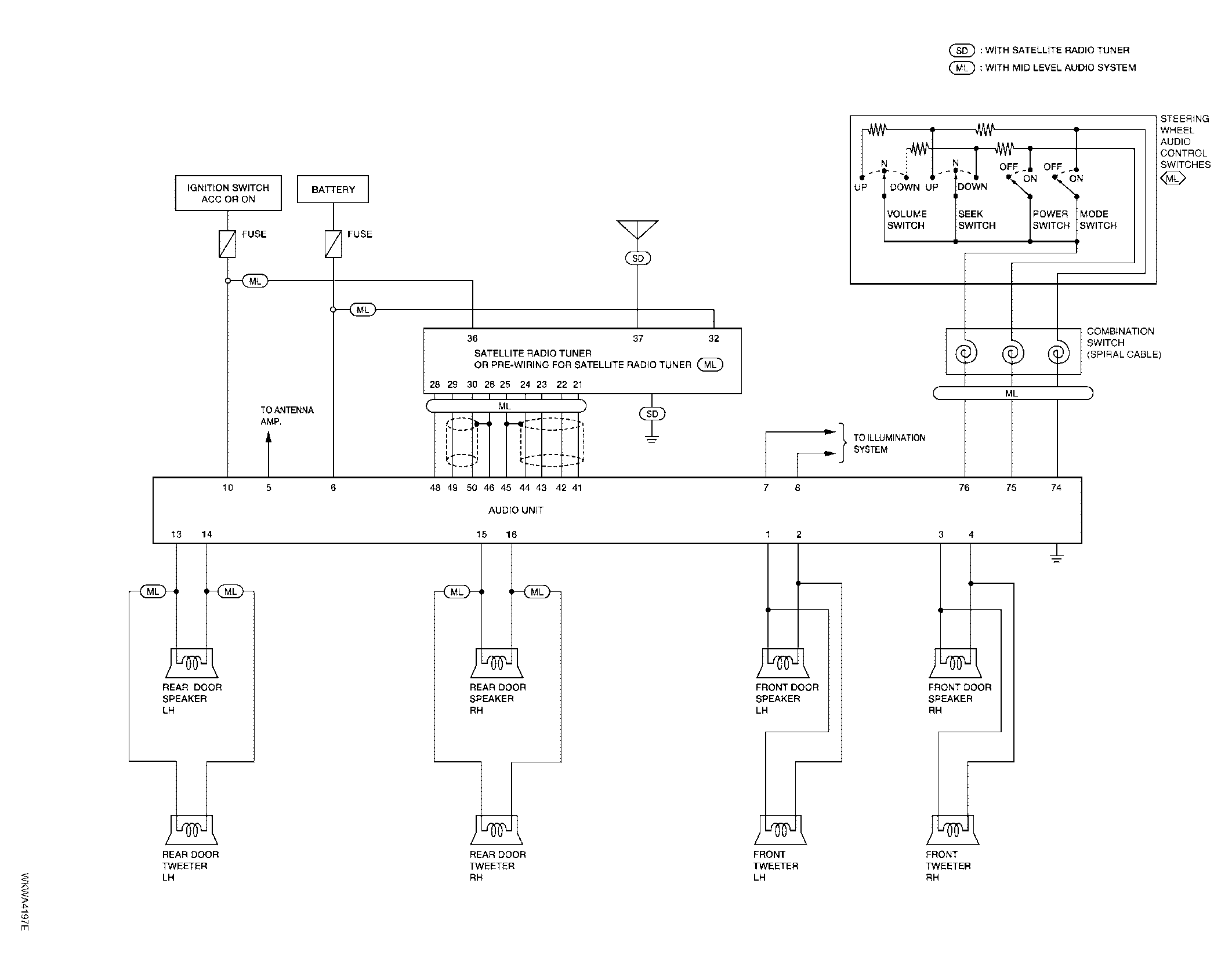

Fig 1: Schematic Diagram - Base And Mid Level System
