With Consult-II
WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Start engine.
- Accelerate vehicle to maintain the following conditions.
ACCELE POS: 1.5/8 - 2.0/8
Selector lever: "D" position
Gear position: 3rd To 4th Gear (FR/B ON/OFF)
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test .
- Perform step "2" again.
- Turn ignition switch "OFF", then perform step "1" to "3" again.

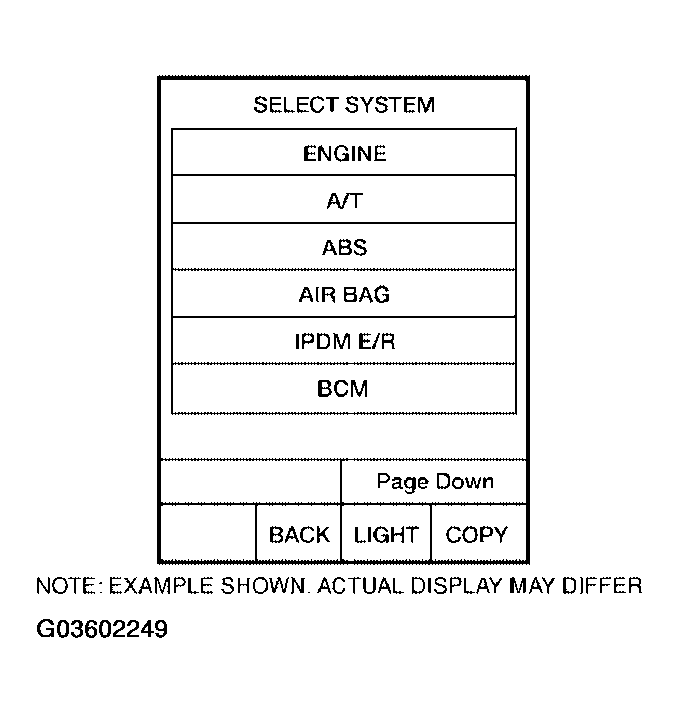

- Check "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II.
If DTC (P1759) is detected, refer to "DIAGNOSTIC PROCEDURE ".
If DTC (P1757) is detected, go to "DIAGNOSTIC PROCEDURE ".
If DTC (P1841) is detected, go to "DIAGNOSTIC PROCEDURE ".
