Inspection Procedure

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

SELF-DIAGNOSIS RESULT CHECK

Check self-diagnosis results.

SELF-DIAGNOSIS RESULTS

Self-diagnosis results
FR LH IN ABS SOL
FR LH OUT ABS SOL
FR RH IN ABS SOL
FR RH OUT ABS SOL
R-EV
R-AV

Is the above displayed in the self-diagnosis display items?

YES: GO TO 2.
NO: Inspection End.

CONNECTOR INSPECTION
1. Disconnect ABS actuator and electric unit (control unit) connector E125.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
- OK: GO TO 3.
- NG: Repair or replace as necessary.

CHECKING SOLENOID POWER AND GROUND

Check voltage between ABS actuator and electric unit (control unit) harness connector E125 and body ground.

VOLTAGE SPECIFICATIONS

ABS actuator and electric unit (control unit) harness connector E125	Body ground	Measured value (Approx.)
32	-	12V

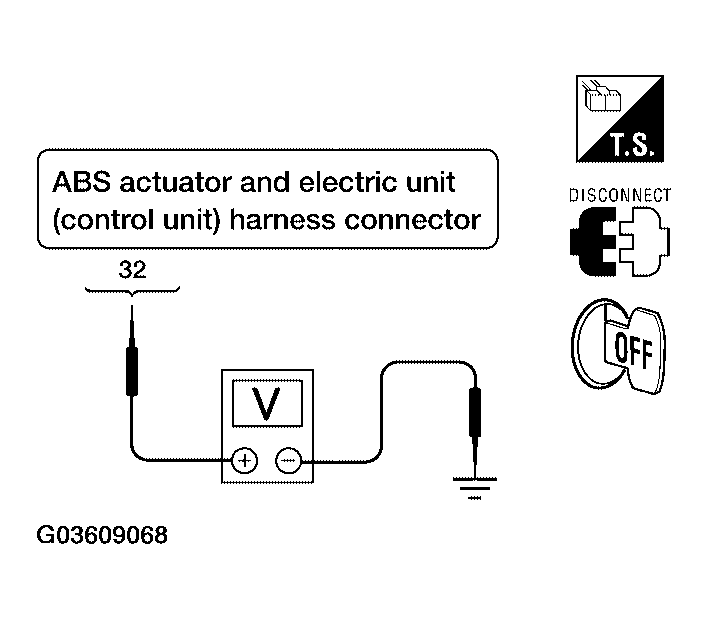

Fig 1: Checking Voltage Between ABS Actuator And Electric Unit Harness Connector E125 And Body Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Check resistance between ABS actuator and electric unit (control unit) harness connector E125 and body ground.

RESISTANCE SPECIFICATIONS

ABS actuator and electric unit (control unit) harness connector E125	Body ground	Measured value Ω (Approx.)
16	-	0Ω
47	-	0Ω

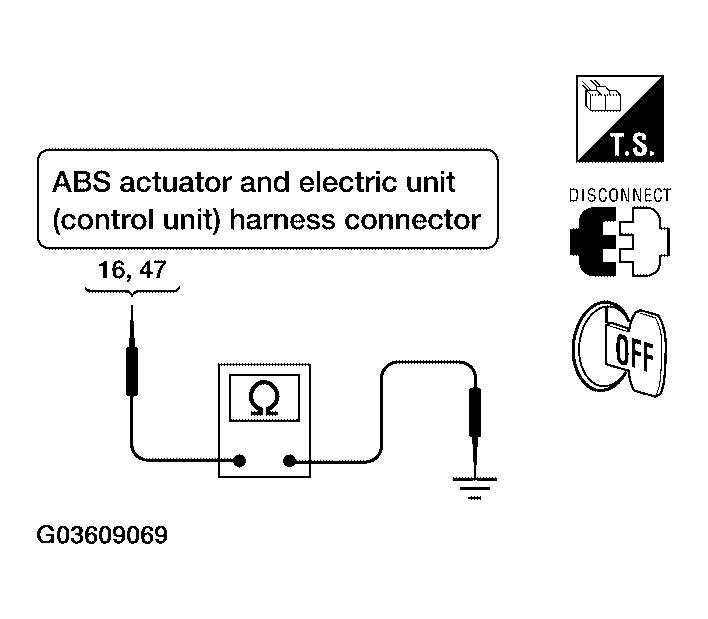

Fig 2: Checking Resistance Between ABS Actuator And Electric Unit Harness Connector E125 And Body Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Perform self-diagnosis again. If the same results appear, replace ABS actuator and electric unit (control unit). Refer to "REMOVAL AND INSTALLATION ".
NG: Repair the circuit.
