Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch ON and start engine.
2. Select "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II.
Is any malfunction of the "CAN COMM CIRCUIT" indicated?
1. YES: Print out CONSULT-II screen, GO TO LAN article. Refer to "PRECAUTIONS WHEN USING CONSULT-II ".
2. NO: INSPECTION END

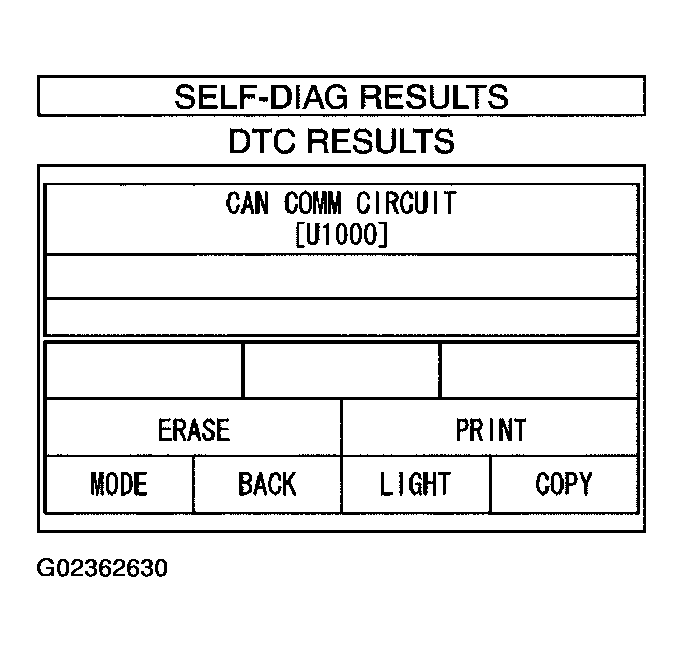

Fig 1: Identifying Display - Self Diag Result
Courtesy of NISSAN MOTOR CO., U.S.A.
