Removal and Installation of NAVI Control Unit

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center box assembly. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove screws (4), and remove NAVI control unit.

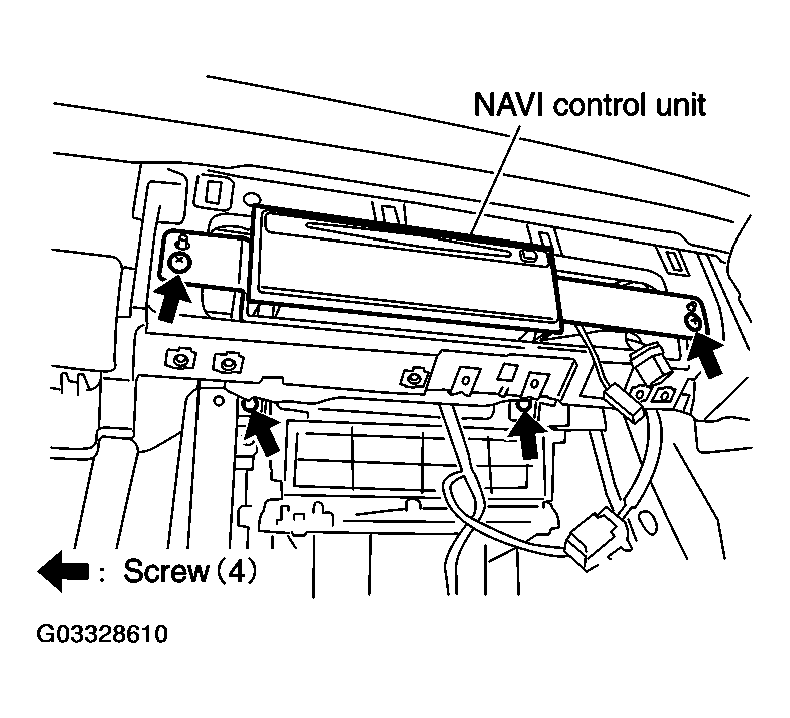

    Fig 1: Removing Screws And NAVI Control Unit
    G03328610Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (4), and remove bracket.
    Fig 2: Removing Bracket And Screw
    G03328611Courtesy of NISSAN MOTOR CO., U.S.A.
