Checking Condition Of Installation
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- Check installation conditions of steering gear assembly, front suspension, axle and steering column.
- Check if movement exists when steering wheel is moved up and down, to the left and right and to the axial direction.
End play of the axial direction for steering wheel: 0 mm (0 in)

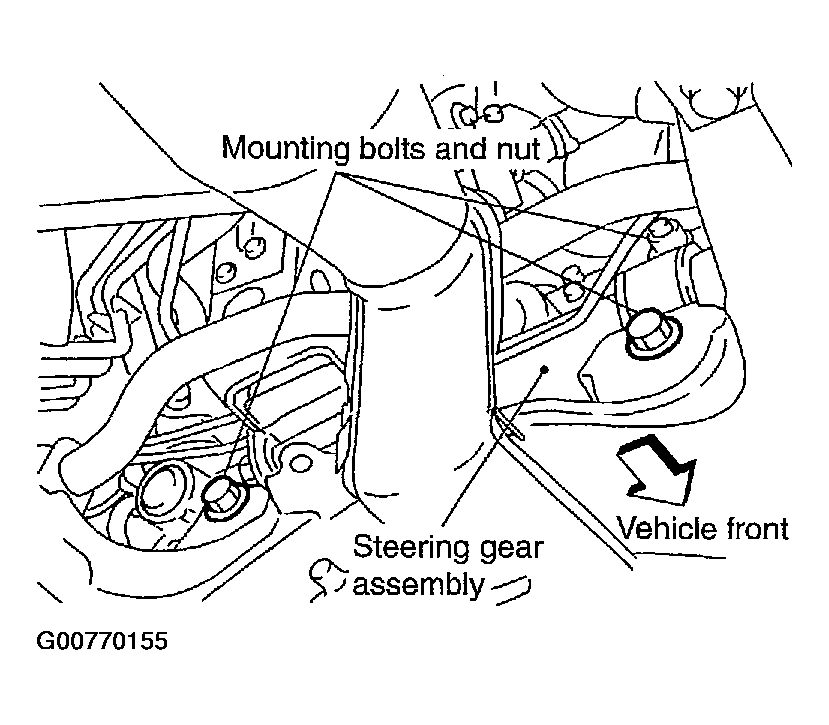

- Check if the mounting bolts and nut for steering gear are loose or not.
Tightening torque
Bolt: 136 - 162 N.m (14 - 16 kg-m, 101 - 119 ft-lb)
Nut: 121.6 - 149.1 N.m (13 - 15, kg-m, 90 - 109 ft-lb)
