Removal and Installation for Audio Unit

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid D. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Using power tool, remove the four audio unit nuts.
  3. Pull out audio unit and disconnect connectors.
  4. Installation is in the reverse order of removal.
  1. Audio unit nuts: 6 N.m (0.6 kg-m, 53 in-lb)

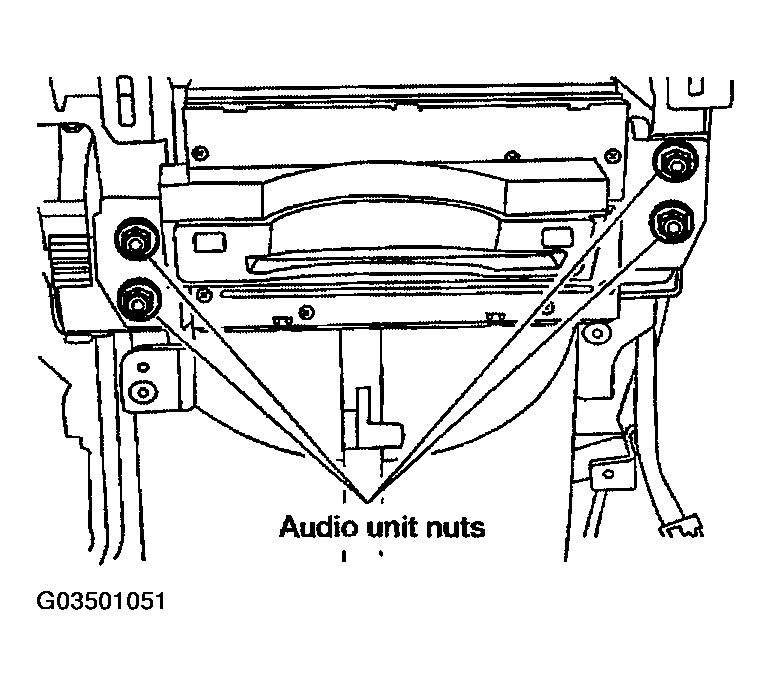

Fig 1: Identifying Audio Unit Nuts
G03501051Courtesy of NISSAN MOTOR CO., U.S.A.
