Overall Function Check

For an overall function check, see Fig 1 .

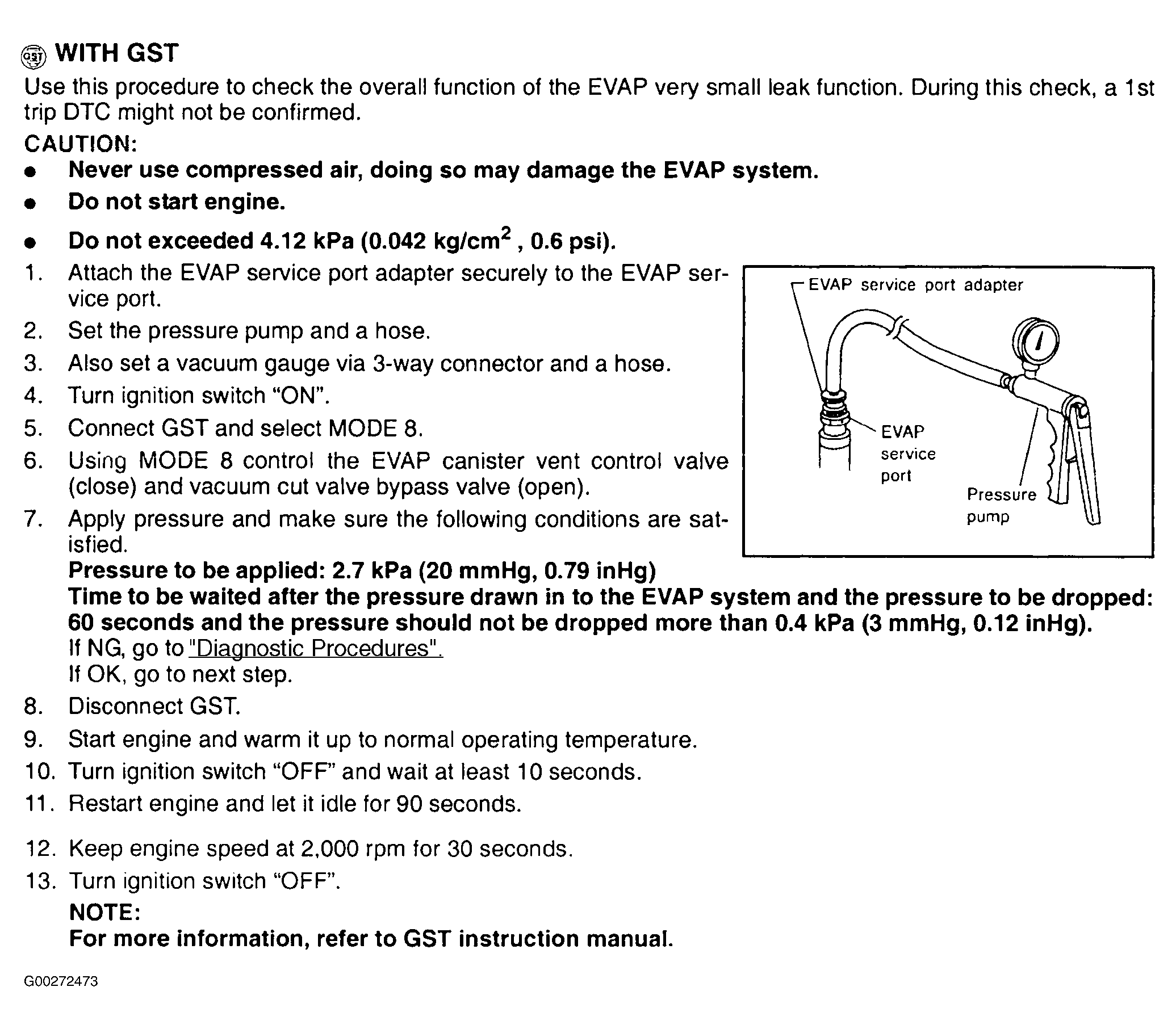

Fig 1: DTC P1456 Overall Function Check
G00272473Courtesy of NISSAN MOTOR CO., U.S.A.
