Overall Function Check

CAUTION: Always drive vehicle at a safe speed.

Use this procedure to check the overall function of the 3-way catalyst (manifold). During this check, a DTC might not be confirmed. See Fig 1 .

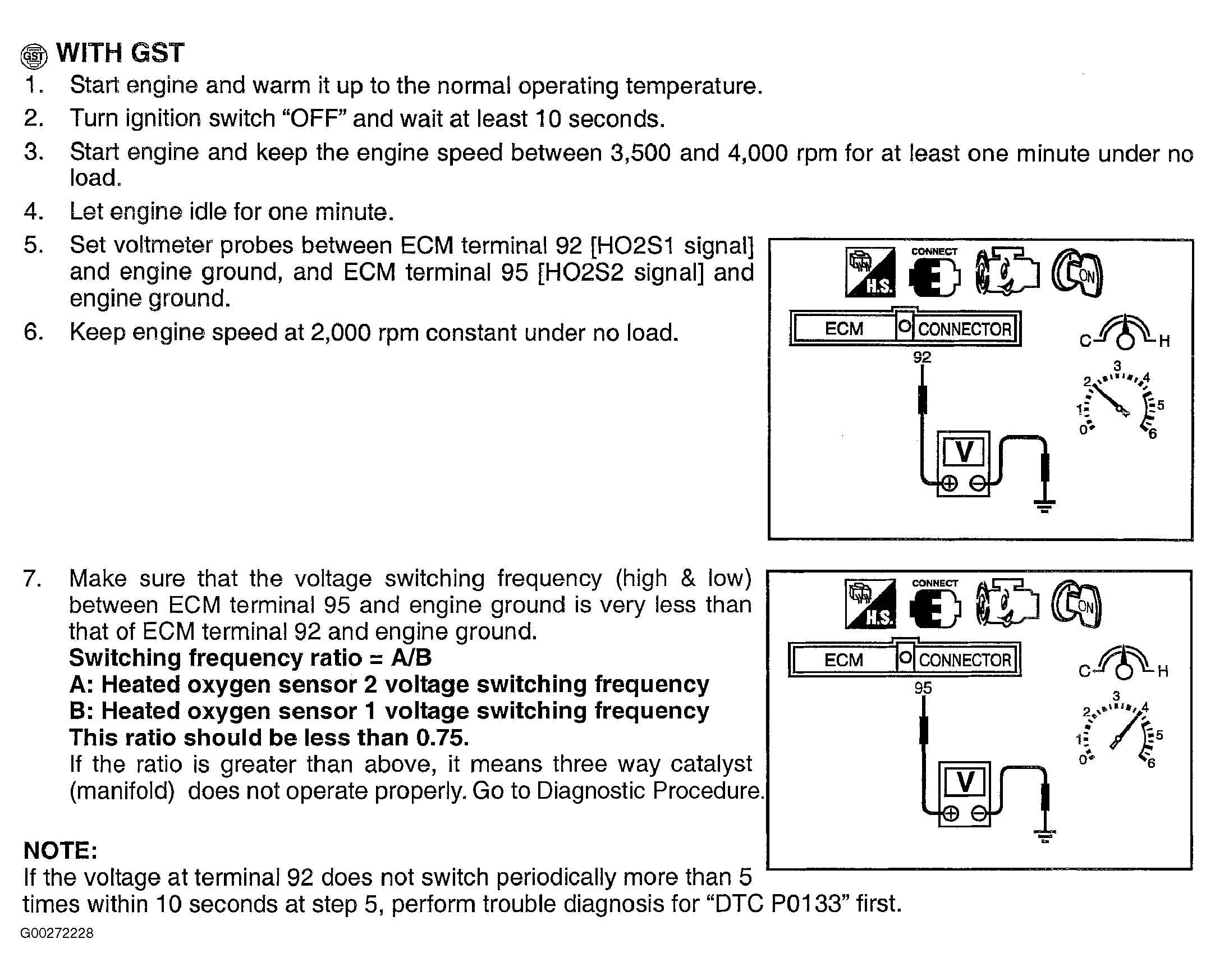

Fig 1: DTC P0420 Overall Function Check
G00272228Courtesy of NISSAN MOTOR CO., U.S.A.
