Wheel Hub: Components

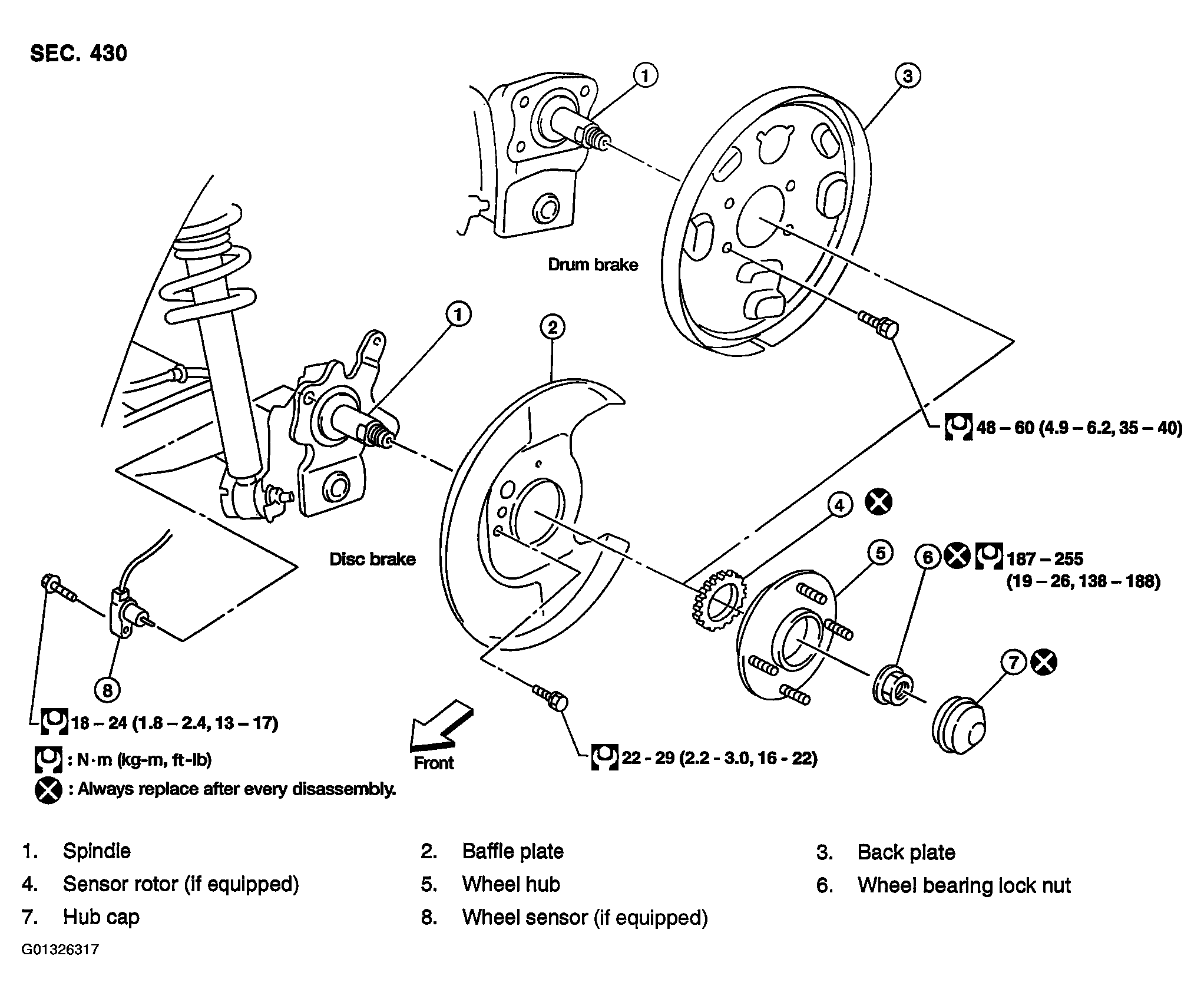

Fig 1: Identifying Wheel Hub Components

G01326317

Courtesy of NISSAN MOTOR CO., U.S.A.
