Wheel Hub And Knuckle: Components

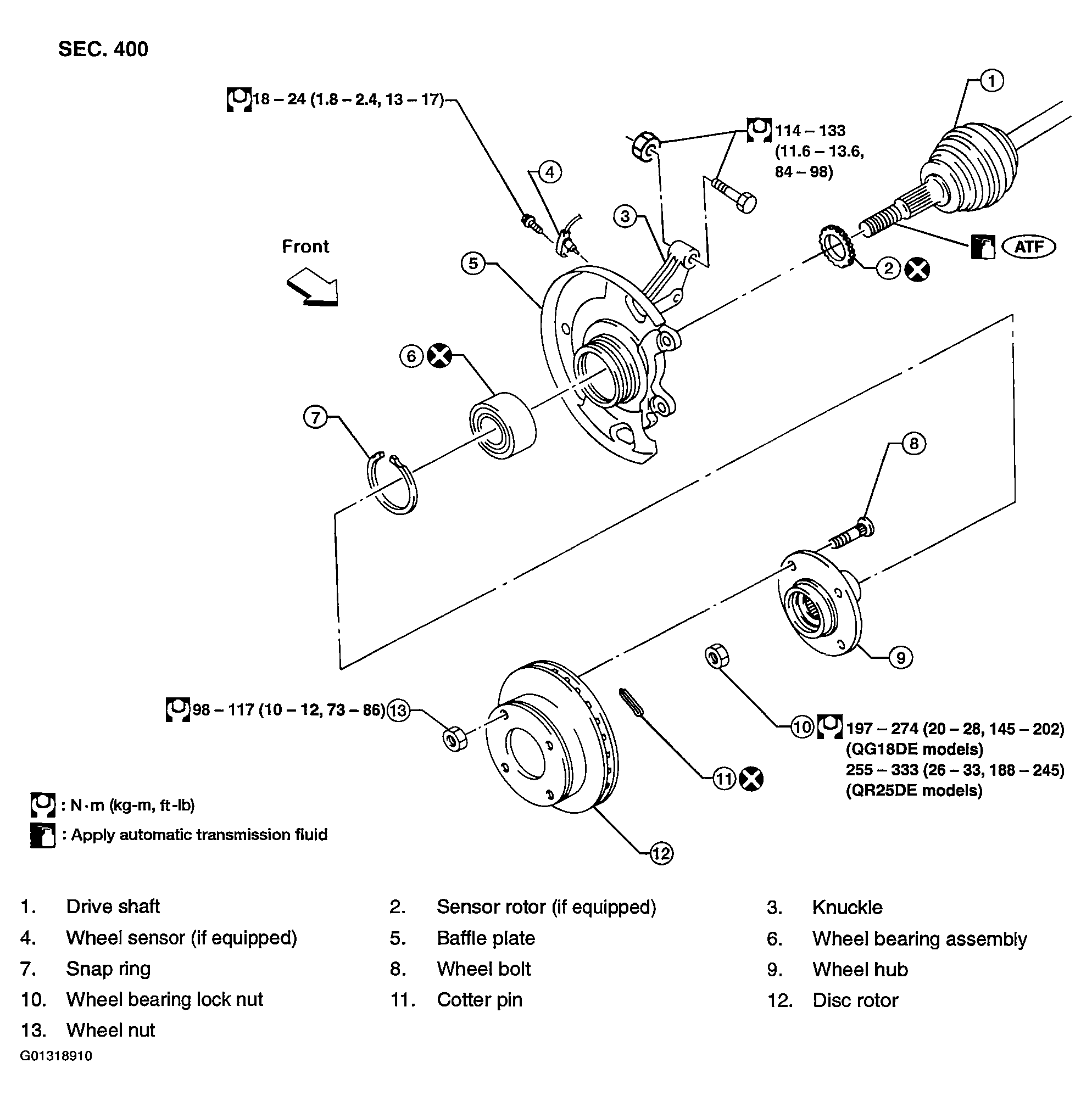

Fig 1: Identifying Wheel Hub And Knuckle Components
G01318910Courtesy of NISSAN MOTOR CO., U.S.A.
