Front Wheel Turning Angle

  1. Rotate steering wheel all the way right and left; measure turning angle.

    Turning angle of full turns: Refer to  SPECIFICATIONS & PROCEDURES

  2. If it is not within specification, check rack stroke.

    Rack stroke "S": Refer to " STEERING GEAR AND LINKAGE  "

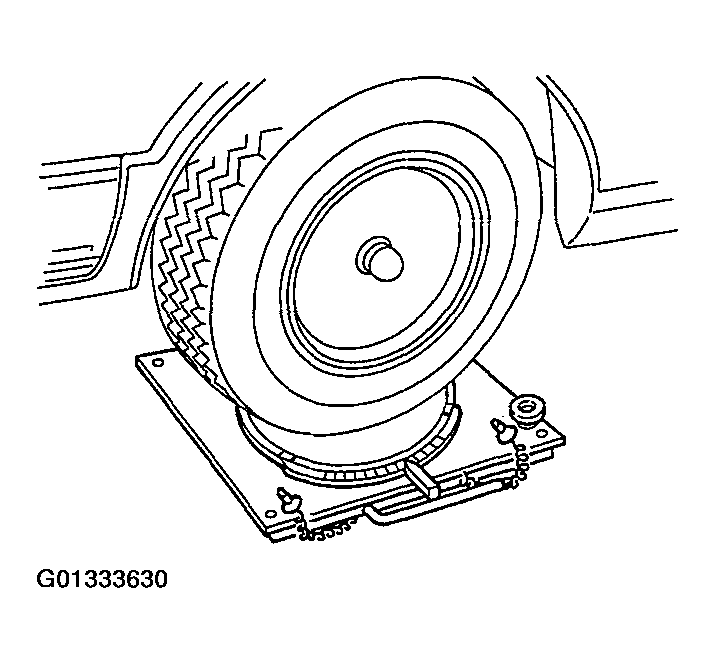

    Fig 1: Checking Front Wheel Turning Angle
    G01333630Courtesy of NISSAN MOTOR CO., U.S.A.
