Operation Procedure

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not perform active test while driving vehicle.
Make sure to completely bleed air from brake system.
Active test cannot be performed when ABS, TCS or VDC operation is malfunction.

Connect CONSULT-II connector to vehicle-side data link connector and start engine.
Touch "START" on display.

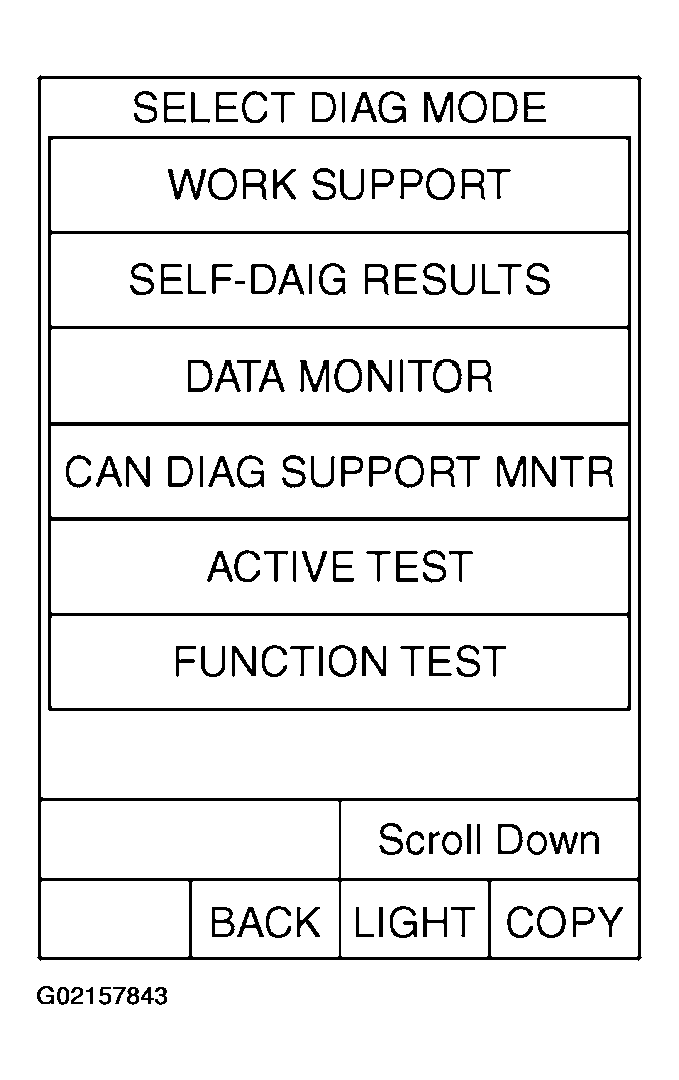

Touch "ABS" and "ACTIVE TEST".

Fig 1: Performing Active Test
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Active Test Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

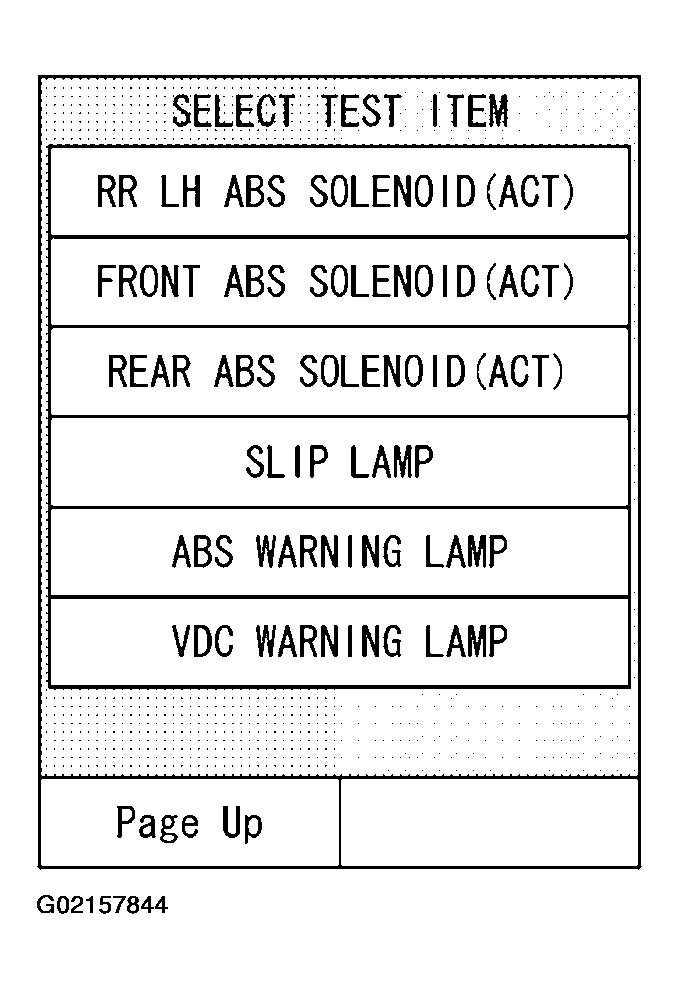

Test item selection screen is displayed.

Fig 3: Displaying Test Item Selection Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch necessary test item.
Touch "START" with "MAIN SIGNALS" line inverted.

Fig 4: Touching START
Courtesy of NISSAN MOTOR CO., U.S.A.
Active test screen is displayed.

Fig 5: Displaying Active test screen
Courtesy of NISSAN MOTOR CO., U.S.A.
