Base System For Coupe Models
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

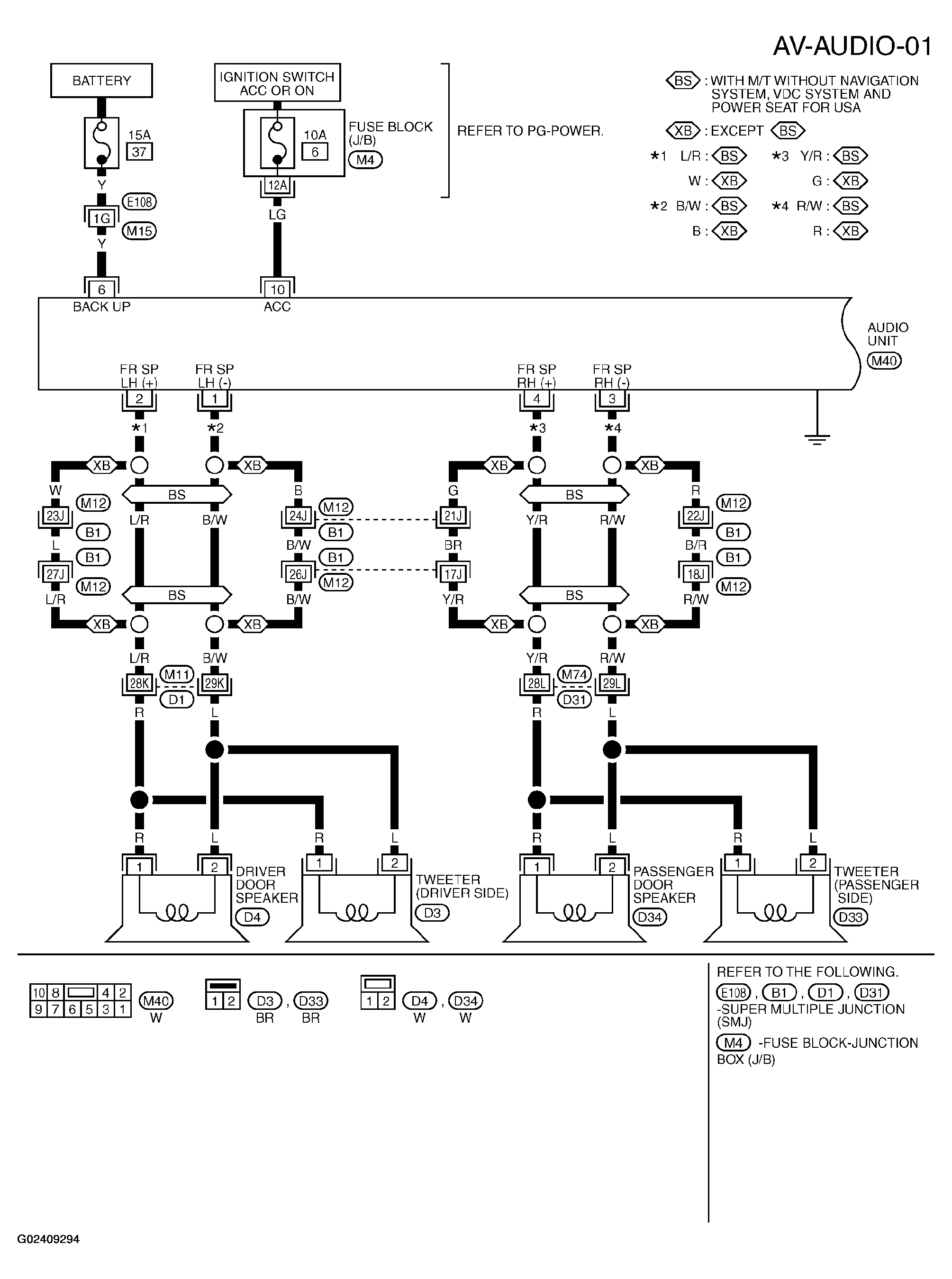

Fig 1: Wiring Diagram - Audio - Base System For Coupe Models - AV-AUDIO-01
Courtesy of NISSAN MOTOR CO., U.S.A.

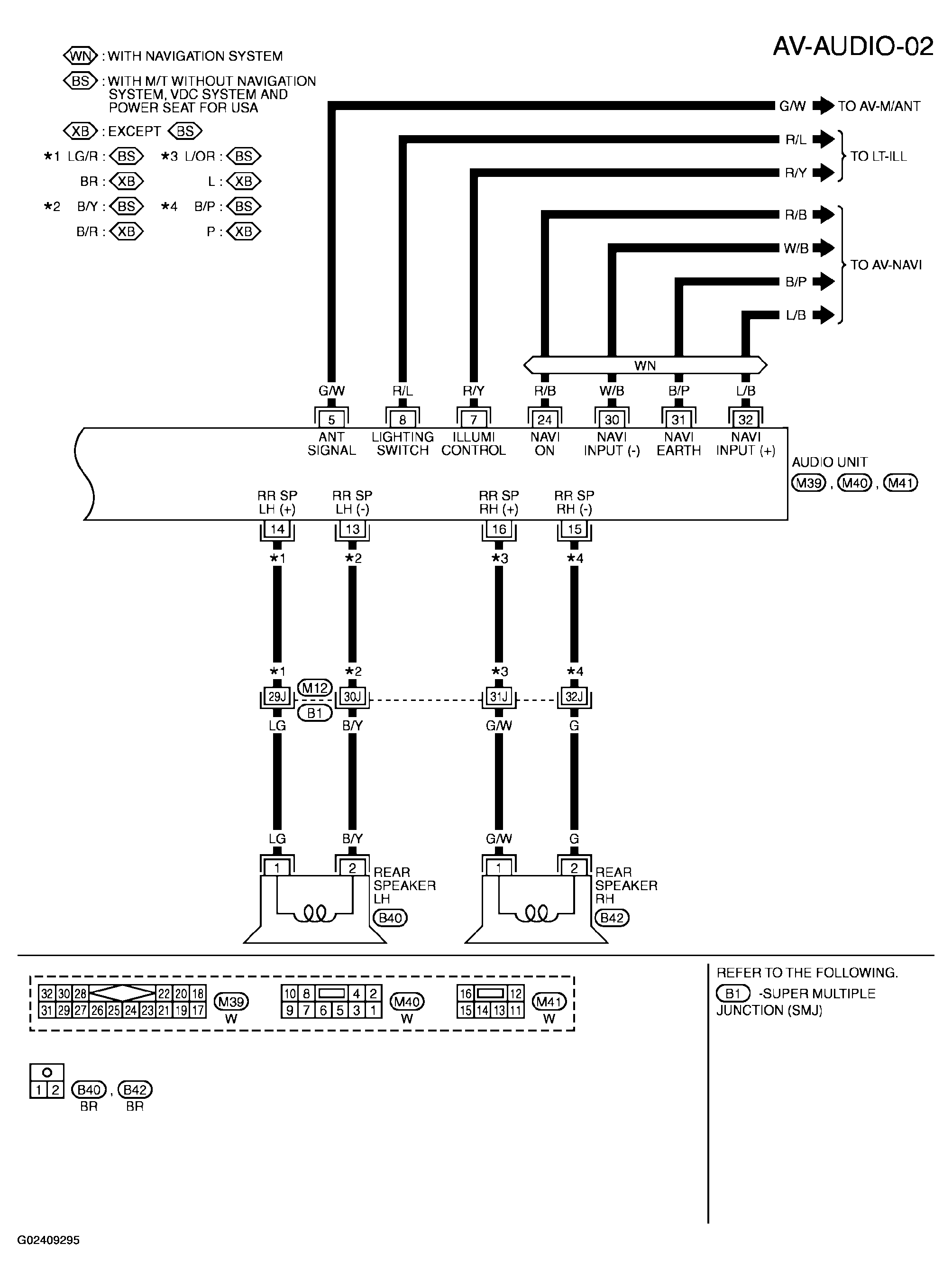

Fig 2: Wiring Diagram - Audio - Base System For Coupe Models - AV-AUDIO-02
