Removal and Installation of Combination Meter: Removal

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove driver's instrument lower cover. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove column cover. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove screws (2) and remove combination meter.

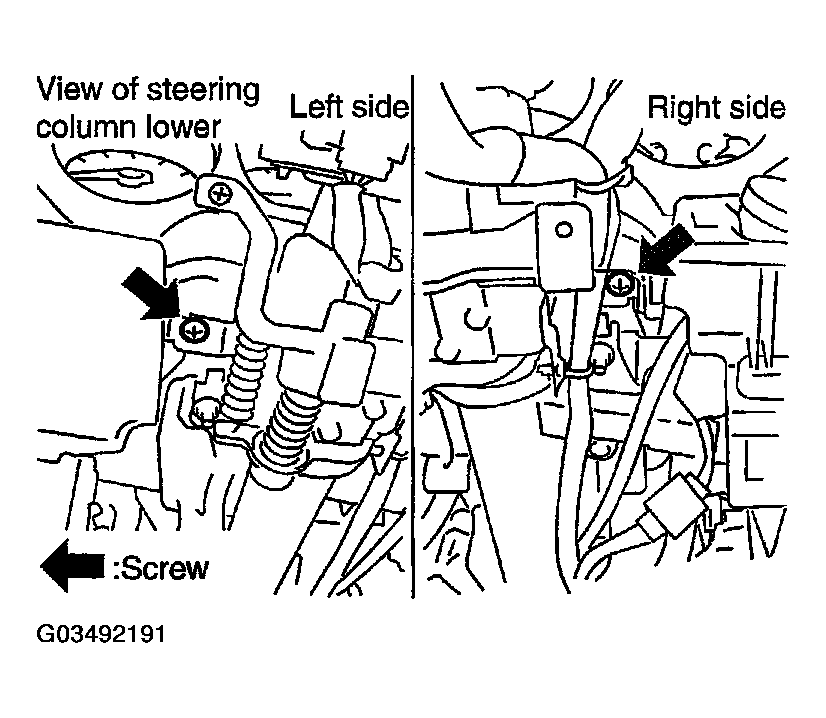

    Fig 1: Removing Column Cover
    G03492191Courtesy of NISSAN MOTOR CO., U.S.A.
